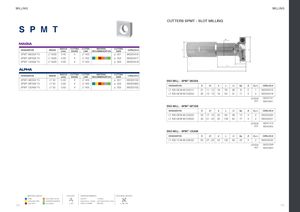

CUTTERS SPMT - SLOT MILLING
SPMT
d1
| DESIGNATION | GRADE | RADIUS (mm) | CUTTING EDGES | CUTTER LINE | MATERIAL RECOMMENDATION | CUTTING DATA | CATALOG # |
| SPMT 060304 TN | LT 3000 | 0.40 | 4 | LT 400 | p. 301 | M0003416 | |
| SPMT 09T308 TN | LT 3000 | 0.80 | 4 | LT 400 | p. 302 | M0003417 | |
| SPMT 120408 TN | LT 3000 | 0.80 | 4 | LT 400 | p. 303 | M0003419 |
Ap L1 L
| DESIGNATION | GRADE | RADIUS (mm) | CUTTING EDGES | CUTTER LINE | MATERIAL RECOMMENDATION | CUTTING DATA | CATALOG # |
| SPMT 060304 TN | LT 30 | 0.40 | 4 | LT 400 | p. 301 | M0003100 | |
| SPMT 09T308 TN | LT 30 | 0.80 | 4 | LT 400 | p. 302 | M0003063 | |
| SPMT 120408 TN | LT 30 | 0.80 | 4 | LT 400 | p. 303 | M0003105 |
| DESIGNATION | D | d1 | d | L | L1 | Ap | Z | Z (EFF) | CATALOG # |
| LT 400-06 W-W-D021/1 | 21 | 11 - 12 | 16 | 76 | 26 | 9 | 2 | 1 | M2004218 |
| LT 400-06 W-W-D025/2 | 25 | 12 - 13 | 16 | 82 | 31 | 11 | 4 | 2 | M2004219 |
| ND MILL - SPMT 09T308 | SCREW KEY | M2002181 M2000601 | |||||||
| DESIGNATION | D | d1 | d | L | L1 | Ap | Z | Z (EFF) | CATALOG # |
| LT 400-09 W-W-D032/2 | 32 | 17 - 18 | 20 | 88 | 38 | 14 | 4 | 2 | M2004220 |
| LT 400-09 W-W-D040/2 | 40 | 21 - 22 | 25 | 108 | 50 | 17 | 4 | 2 | M2004221 |
| SCREW KEY | M2001418 M2000602 |
END MILL - SPMT 120408
| DESIGNATION | D | d1 | d | L | L1 | Ap | Z | Z (EFF) | CATALOG # |
| LT 400-12 W-W-D050/2 | 50 | 27 - 28 | 32 | 120 | 56 | 22 | 4 | 2 | M2004222 |
| SCREW KEY | M2000599 M2000603 |
