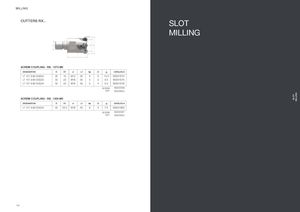

CUTTERS RX.. SLOT
MILLING
Ap
d D1 D
L
SCREW COUPLING - RX.. 10T3 M0
| DESIGNATION | D | D1 | d | L1 | Ap | Z | α | CATALOG # |
| LT 101 S-W-D025/3 | 25 | 15 | M12 | 35 | 5 | 3 | 10.0 | M2001574 |
| LT 101 S-W-D032/3 | 32 | 22 | M16 | 35 | 5 | 3 | 8.5 | M2001575 |
| LT 101 S-W-D032/4 | 32 | 22 | M16 | 35 | 5 | 4 | 8.5 | M2001576 |
| SCREW KEY | M2003786 M2000602 |
SCREW COUPLING - RX.. 1204 M0
| DESIGNATION | D | D1 | d | L1 | Ap | Z α | CATALOG # |
| LT 121 S-W-D040/4 | 40 | 28.0 | M16 | 40 | 6 | 4 7.5 | M2001863 |
| SCREW KEY | M2000597 M2000602 |
