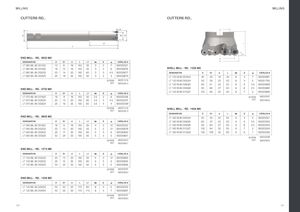

CUTTERS RD.. CUTTERS RD..
d
L
END MILL - RD.. 0602 M0
Ap d D1 D
L1 L
Ap D1
| DESIGNATION | D | D1 | d | L | L1 | Ap | Z | α | CATALOG # |
| LT 060 WL-W D012/2 | 12 | 6 | 16 | 150 | 25 | 3 | 2 | 7 | M2003321 |
| LT 060 WL-W-D016/2 | 16 | 10 | 16 | 150 | 25 | 3 | 2 | 6 | M2000676 |
| LT 060 WL-W-D020/3 | 20 | 14 | 20 | 180 | 60 | 3 | 3 | 4.5 | M2000677 |
| LT 060 WL-W-D025/3 | 25 | 19 | 25 | 180 | 80 | 3 | 3 | 4 | M2000678 |
| SCREW KEY | M2001416 M2002912 |
| DESIGNATION | D | D1 | d | L | Ap | Z | α | CATALOG # |
| LT 120 M-W-D040/4 | 40 | 28 | 16 | 40 | 6 | 4 | 7 | M2000691 |
| LT 120 M-W-D050/4 | 50 | 38 | 22 | 50 | 6 | 4 | 5 | M2001780 |
| LT 120 M-W-D063/5 | 63 | 51 | 22 | 50 | 6 | 5 | 3.5 | M2000689 |
| LT 120 M-W-D080/6 | 80 | 68 | 27 | 50 | 6 | 6 | 2.5 | M2000690 |
| LT 120 M-W-D100/7 | 100 | 88 | 32 | 50 | 6 | 7 | 2 | M2000688 |
| SCREW KEY | M2000597 M2000602 |
| DESIGNATION | D | D1 | d | L | L1 | Ap | Z | α | CATALOG # |
| LT 070 WL-W-D016/2 | 16 | 9 | 16 | 150 | 25 | 3.5 | 2 | 6 | M2003336 |
| LT 070 WL-W-D020/3 | 20 | 13 | 20 | 180 | 60 | 3.5 | 3 | 4.5 | M2003337 |
| LT 070 WL-W-D025/4 | 25 | 18 | 25 | 180 | 60 | 3.5 | 4 | 4 | M2003339 |
| SCREW KEY | M2001416 M2002912 |
| DESIGNATION | D | D1 | d | L | Ap | Z | α | CATALOG # |
| LT 160 M-W-D050/4 | 50 | 34 | 22 | 50 | 8 | 4 | 5 | M2003331 |
| LT 160 M-W-D063/5 | 63 | 47 | 22 | 50 | 8 | 5 | 3.5 | M2003332 |
| LT 160 M-W-D080/6 | 80 | 64 | 27 | 50 | 8 | 6 | 2.5 | M2003333 |
| LT 160 M-W-D100/7 | 100 | 84 | 32 | 50 | 8 | 7 | 2 | M2003334 |
| LT 160 M-W-D125/8 | 125 | 109 | 40 | 63 | 8 | 8 | 1 | M2003335 |
| SCREW KEY | M2000599 M2000603 |
| DESIGNATION | D | D1 | d | L | L1 | Ap | Z | α | CATALOG # |
| LT 080 WL-W D016/2 | 16 | 8 | 16 | 150 | 25 | 4 | 2 | 12 | M2003322 |
| LT 080 WL-W-D020/2 | 20 | 12 | 20 | 180 | 42 | 5 | 2 | 12 | M2000679 |
| LT 080 WL-W-D025/3 | 25 | 17 | 25 | 180 | 60 | 5 | 3 | 8 | M2000680 |
| LT 080 WL-W-D032/3 | 32 | 24 | 32 | 180 | 80 | 5 | 3 | 5 | M2000681 |
| SCREW KEY | M2004402 M2000601 |
END MILL - RD.. 10T3 M0
| DESIGNATION | D | D1 | d | L | L1 | Ap | Z | α | CATALOG # |
| LT 100 WL-W-D020/2 | 20 | 10 | 20 | 180 | 25 | 5 | 2 | 12 | M2000683 |
| LT 100 WL-W-D025/3 | 25 | 15 | 25 | 180 | 60 | 5 | 3 | 8 | M2000684 |
| LT 100 WL-W-D032/3 | 32 | 22 | 32 | 180 | 80 | 5 | 3 | 5 | M2000685 |
| SCREW KEY | M2000597 M2000602 |
END MILL - RD.. 1204 M0
| DESIGNATION | D | D1 | d | L | L1 | Ap | Z α | CATALOG # |
| LT 120 WL-W-D032/3 | 32 | 20 | 32 | 170 | 60 | 6 | 3 5 | M2003323 |
| LT 120 WL-W-D040/4 | 40 | 28 | 32 | 170 | 110 | 6 | 4 7 | M2000687 |
| SCREW KEY | M2000597 M2000602 |
