SPMT 12T308 SPUN 120308

Material	Lamina	Material	Hardness	D [m	OC m]	Fe [m	ed m/z]	V [m/	c min]	Sugg P	ested St aramete	arting rs
Group	Gr. N°	Examples		min	max	min	max	min	max	DOC	Feed	Vc
		C35, Ck45,	125 HB						330			250
Non Alloyed	1	1020, 1045,	190 HB	0.50	9.00	0.13	0.29	190	300	3.00	0.18	220
		1060, 28Mn6	250 HB						250			200
		42CrMo4	180 HB				022	150	240		016	200
Low Alloyed	2	, St50, Ck60,	230 HB	050	900	010	.		210	300	.	180
P		4140, 4340,	280 HB	.	.	.			190	.		150
		100Cr6	350 HB				0.20	130	170		0.14	140
			220 HB				020	90	150		014	130
		X40CrMoV5,	280 HB				.		130		.	120
High Alloyed	3	H13, M42, D3,		0.50	6.40	0.08				2.30
		S6-5-2 12Ni19	320 HB						110			100
		,	350 HB				0.16	60	90		0.13	80
Aii	4	304, 316,	180 HB	00	900	0.10	0.22	190	250	300	0.16	220
ustentc		X5CrNi18-9	240 HB	.5	.	0.08	0.20	160	210	.	0.16	190
M Duplex	5	X2CrNiN23-4, S31500	290 HB 310 HB	0.50	6.40	0.08	0.16	70	130 120	2.30	0.13	100 90
Ferritic &		410, X6Cr17,	200 HB		9.00		0.22	150	210	3.00	0.16	190
Martensitic	6	17-4PH, 430	42 HRc	0.50	6.40	0.10	0.18	90	150	2.30	0.13	130
		GG20, GG40, EN-	150 HB						240			200
Grey	7	GJL-250,	200 HB	0.50	9.00	0.13	0.29	150	220	3.00	0.18	180
		N030B	250 HB						190			160
K		GGG40	150 HB						200			180
Malleable & Nodular	8	, GGG70,	200 HB	0.50	9.00	0.10	0.25	100	180	3.00	0.16	150
		50005	250 HB						150			130
		Incoloy 800	240 HB						45			32
Fe, Ni & Co based	9	Inconel 700	250 HB	0.50	6.40	0.08	0.16	25	45	2.30	0.13	30
S		Stellite 21	350 HB						45			30
		TiAl6V4	-				0.18	30	55		0.14	40
Ti based	10	T40	-	0.50	6.40	0.08	0.16	40	65	2.30	0.13	55
		X100 CrMo13	45 HRc		3.20		0.16		80	1.50	0.11	60
Steel		, 440C,	50 HRc		1.90		0.14		70	1.10	0.10	55
H	11	G-X260NiCr42	55 HRc	0.50	1.00	0.07	0.13	40	60	0.80	0.10	50
Chilled Cast Iron		Ni-Hard 2	400 HB		2.60		0.16		80	1.10	0.11	50
White Cast Iron		G-X300CrMo15	55 HRc		1.00		0.13	30	60	0.80	0.10	40
NF Aluminium	12	AlSi12	130 HB	0.50	9.00	0.13	0.29	200	400	3.00	0.20	280

Material Group	Lamina Gr. N°	Material Examples	Hardness	D [m	OC m]	Fe [m	ed m/z]	V [m/	c min]	Sugg P	ested St aramete	arting rs
				min	max	min	max	min	max	DOC	Feed	Vc
		C35, Ck45,	125 HB									250
Non Alloyed	1	1020, 1045,	190 HB	0.50	7.00	0.18	0.37	190	330	3.00	0.26	220
		1060, 28Mn6	250 HB									200
		42CrMo4,	180 HB				0.29		240		0.23	200
Low Alloed	2	St50, Ck60,	230 HB	050	700	015		150		300		180
P y		4140 4340	280 HB	.	.	.				.		150
		, , 100Cr6	350 HB				0.25		170		0.21	140
		X40CrMoV5,	220 HB 280 HB				0.25		150		0.21	130 120
High Alloyed	3	H13, M42, D3,		0.50	5.00	0.12		70		2.30
		S6-5-2, 12Ni19	320 HB 350 HB				0.21		90		0.18	100 80
		GG20, GG40, EN-	150 HB									200
Grey	7	GJL-250, N030B	200 HB 250 HB	0.50	7.00	0.18	0.37	150	240	3.00	0.26	180 160
K		GGG40,	150 HB									180
Malleable & Nodular	8	GGG70, 50005	200 HB 250 HB	0.50	7.00	0.15	0.32	100	200	3.00	0.23	150 130
		X100 CrMo13,	45 HRc		2.50		0.21		80	1.50	0.16	60
Steel		440C,	50 HRc		1.80		0.18		70	1.10	0.15	55
H	11	G-X260NiCr42	55 HRc	0.50	1.50	0.10	0.16	40	60	0.80	0.14	50
Chilled Cast Iron		Ni-Hard 2	400 HB		2.00		0.21		80	1.10	0.16	50
White Cast Iron		G-X300CrMo15	55 HRc		1.50		0.16		60	0.80	0.14	40

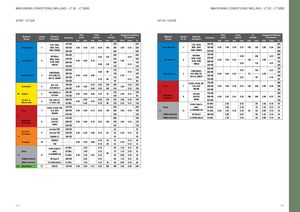

Общий каталог Lamina Technologies 2019 - 2020 - страница 154
