ODMT 0504 ZZTR ODMT 060508 TN

OFMT 050405 TR

OFMT 05T305 TN

Material	Lamina	Material	Hardness	D [m	OC m]	Fe [m	ed m/z]	V [m/	c min]	Sugg P	ested St aramete	arting rs
Group	Gr. N°	Examples		min	max	min	max	min	max	DOC	Feed	Vc
		C35, Ck45,	125 HB						330			250
Non Alloyed	1	1020, 1045,	190 HB	0.50	3.50	0.22	0.51	190	300	2.40	0.37	220
		1060, 28Mn6	250 HB						250			200
		42CrMo4	180 HB				040	150	240		032	200
Low Alloyed	2	, St50, Ck60,	230 HB	050	350	018	.		210	240	.	180
P		4140, 4340,	280 HB	.	.	.			190	.		150
		100Cr6	350 HB				0.35	130	170		0.29	140
			220 HB				035	90	150		029	130
Hih Alloed	3	X40CrMoV5, H13 M42 D3	280 HB	050	250	014	.		130	180	.	120
g y		, , , S6-5-2 12Ni19	320 HB	.	.	.			110	.		100
		,	350 HB				0.29	60	90		0.26	80
Atiti	4	304, 316,	180 HB	050	350	0.18	0.35	190	250	240	029	220
usenc		X5CrNi18-9	240 HB	.	.	0.14	0.32	160	210	.	.	190
M Duplex	5	X2CrNiN23-4, S31500	290 HB 310 HB	0.50	2.50	0.14	0.29	70	130 120	1.80	0.26	100 90
Ferritic &		410, X6Cr17,	200 HB		3.50		0.35	150	210	2.40	0.29	190
Martensitic	6	17-4PH, 430	42 HRc	0.50	2.50	0.18	0.32	90	150	1.80	0.26	130
		GG20, GG40, EN-	150 HB						240			200
Grey	7	GJL-250,	200 HB	0.50	3.50	0.22	0.51	150	220	2.40	0.37	180
		N030B	250 HB						190			160
K		GGG40	150 HB						200			180
Malleable & Nodular	8	, GGG70,	200 HB	0.50	3.50	0.18	0.45	100	180	2.40	0.32	150
		50005	250 HB						150			130
		Incoloy 800	240 HB						45			32
Fe, Ni & Co based	9	Inconel 700	250 HB	0.50	2.50	0.14	0.29	25	45	1.80	0.26	30
S		Stellite 21	350 HB						45			30
		TiAl6V4	-				0.32	30	55		0.29	40
Ti based	10	T40	-	0.50	2.50	0.14	0.29	40	65	1.80	0.26	55
		X100 CrMo13	45 HRc		1.30		0.29		80	1.20	0.22	60
Steel		, 440C,	50 HRc		1.00		0.26		70	0.90	0.21	55
H	11	G-X260NiCr42	55 HRc	0.40	0.80	0.12	0.22	40	60	0.60	0.19	50
Chilled Cast Iron		Ni-Hard 2	400 HB		1.00		0.29		80	0.90	0.22	50
White Cast Iron		G-X300CrMo15	55 HRc		0.80		0.22	30	60	0.60	0.19	40
NF Aluminium	12	AlSi12	130 HB	0.50	3.50	0.22	0.51	200	400	2.40	0.40	280

Material Group	Lamina Gr. N°	Material Examples	Hardness	D [m	OC m]	Fe [m	ed m/z]	V [m/	c min]	Sugg P	ested St aramete	arting rs
				min	max	min	max	min	max	DOC	Feed	Vc
		C35, Ck45,	125 HB						330			250
Non Alloyed	1	1020, 1045,	190 HB	0.50	4.00	0.22	0.54	190	300	2.50	0.39	220
		1060, 28Mn6	250 HB						250			200
		42CrMo4	180 HB				043	150	240		034	200
Low Alloyed	2	, St50, Ck60,	230 HB	050	400	018	.		210	250	.	180
P		4140, 4340,	280 HB	.	.	.			190	.		150
		100Cr6	350 HB				0.37	130	170		0.31	140
			220 HB				037	90	150		031	130
Hih Alloed	3	X40CrMoV5, H13 M42 D3	280 HB	050	280	014	.		130	190	.	120
g y		, , , S6-5-2 12Ni19	320 HB	.	.	.			110	.		100
		,	350 HB				0.31	60	90		0.27	80
Aii	4	304, 316,	180 HB	00	400	0.18	0.37	190	250	20	031	220
ustentc		X5CrNi18-9	240 HB	.5	.	0.14	0.34	160	210	.5	.	190
M Duplex	5	X2CrNiN23-4, S31500	290 HB 310 HB	0.50	2.80	0.14	0.31	70	130 120	1.90	0.27	100 90
Ferritic &		410, X6Cr17,	200 HB		4.00		0.37	150	210	2.50	0.31	190
Martensitic	6	17-4PH, 430	42 HRc	0.50	2.80	0.18	0.34	90	150	1.90	0.27	130
		GG20 GG40 EN-	150 HB						240			200
Grey	7	, , GJL-250,	200 HB	0.50	4.00	0.22	0.54	150	220	2.50	0.39	180
		N030B	250 HB						190			160
K		GGG40	150 HB						200			180
Malleable & Nodular	8	, GGG70,	200 HB	0.50	4.00	0.18	0.48	100	180	2.50	0.34	150
		50005	250 HB						150			130
		Incoloy 800	240 HB						45			32
Fe, Ni & Co based	9	Inconel 700	250 HB	0.50	2.80	0.14	0.31	25	45	1.90	0.27	30
S		Stellite 21	350 HB						45			30
		TiAl6V4	-				0.34	30	55		0.31	40
Ti based	10	T40	-	0.50	2.80	0.14	0.31	40	65	1.90	0.27	55
		X100 CrMo13	45 HRc		1.40		0.31		80	1.30	0.24	60
Steel		, 440C,	50 HRc		1.10		0.27		70	0.90	0.22	55
H	11	G-X260NiCr42	55 HRc	0.40	0.90	0.12	0.24	40	60	0.60	0.20	50
Chilled Cast Iron		Ni-Hard 2	400 HB		1.10		0.31		80	0.90	0.24	50
White Cast Iron		G-X300CrMo15	55 HRc		0.90		0.24	30	60	0.60	0.20	40
NF Aluminium	12	AlSi12	130 HB	0.50	4.00	0.22	0.54	200	400	2.50	0.43	280

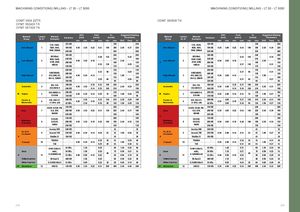

Общий каталог Lamina Technologies 2019 - 2020 - страница 141
