Общий каталог Lamina Technologies 2019 - 2020

Общий каталог Lamina Technologies 2017 - 2018

WNMG 060408 NX WNMG 060408 NN

WNMG 080408 NX WNMG 080408 NN

WNMP 060408 NN

WNMP 080408 NN

Material Group	Lamina Gr. N°	Material Examples	Hardness	D [m min	OC m] max	Fe [mm min	ed /rev] max	V min	c max	Amax [mm2]	Sug DOC	gested Sta Parameter Feed	rting s Vc
		C35, Ck45,	125 HB				050		330	113		0.36	240
Non Alloyed	1	1020, 1045,	190 HB	0.50	2.50	0.18	.	180	280	.	1.80	0.33	220
		1060, 28Mn6	250 HB				0.45		250	0.95		0.31	200
		42CrMo4,	180 HB		2.50	0.18	0.45		280			0.30	200
L Alld	2	St50, Ck60,	230 HB	050	200			120	250	0.76	1.80		180
P ow oye		4140, 4340,	280 HB	.	.				210				150
		100Cr6	350 HB		1.80	0.16	0.40		180	0.63	1.60	0.29	130
		X40CrMoV5,	220 HB 280 HB		2.00	0.16	0.40		190 150	0.76	1.50	0.29	140 120
High Alloyed	3	H13, M42, D3, S6-5-2, 12Ni19	320 HB 350 HB	0.50	1.50	0.16	0.35	70	130 110	0.50	1.30	0.27	100 90
Austenitic	4	304, 316, X5CrNi18-9	180 HB 240 HB	0.50	2.50	0.18	0.40	170 160	270 220	0.76 0.63	1.80	0.24 0.21	190 170
M Duplex	5	X2CrNiN23-4, S31500	290 HB 310 HB	0.50	2.00	0.16	0.35	80 70	150 140	0.50	1.50	0.23	100 90
Ferritic &	6	410, X6Cr17,	200 HB	050	2.50	016	040	170	250	044	1.50	019	190
Martensitic		17-4PH, 430	42 HRc	.	2.00	.	.	120	190	.	1.30	.	130
		GG20 GG40	150 HB					170	250	1.26			200
Grey	7	, , EN-GJL-250,	200 HB	0.50	2.50	0.13	0.60	160	230		1.80	0.33	180
		N030B	250 HB				0.55	150	210	1.13			160
K			150 HB						250	0.95			180
Malleable & Nodular	8	GGG40, GGG70, 50005	200 HB	0.50	2.50	0.13	0.50	120	230	0.82	1.80	0.29	160
			250 HB						190	0.76			140
		Incoloy 800	240 HB						45				32
Fe, Ni & Co based	9	Inconel 700	250 HB	0.50	1.50	0.18	0.35	25	45	0.44	1.20	0.27	30
S		Stellite 21	350 HB					23	40				28
		T40	-		1.80		0.40	35	55	0.50		0.31	45
Ti based	10	TiAl6V4	-	0.50	1.50	0.18	0.35	45	65	0.44	1.20	0.29	55
		X100 CrMo13	45 HRc		1.30		0.30	0.50	100	0.38	1.20	0.24	80
Steel		, 440C,	50 HRc		1.00		0.25		90	0.25	0.90	0.19	70
H	11	G-X260NiCr42	55 HRc	0.50	0.80	0.10	0.20	40	80	0.19	0.60		60
Chilled Cast Iron		Ni-Hard 2	400 HB		1.00		0.25		60	0.25	0.90	0.17	50
White Cast Iron		G-X300CrMo15	55 HRc		0.80		0.20	30	50	0.19	0.60	0.14	40
NF Aluminium	12	AlSi12	130 HB	0.50	3.00	0.18	0.60	200	400	1.13	1.80	0.38	280

Material Group	Lamina Gr. N°	Material Examples	Hardness	D [m min	OC m] max	Fe [mm min	ed /rev] max	V min	c max	Amax [mm2]	Sug DOC	gested Sta Parameter Feed	rting s Vc
		C35, Ck45,	125 HB				050		330	117		0.38	240
Non Alloyed	1	1020, 1045,	190 HB	0.50	2.50	0.21	.	180	280	.	1.80	0.35	220
		1060, 28Mn6	250 HB				0.45		250	0.98		0.33	200
		42CrMo4,	180 HB		2.50	0.21	0.45		280			0.32	200
L Alld	2	St50, Ck60,	230 HB	050	200			120	250	0.78	1.80		180
P ow oye		4140, 4340,	280 HB	.	.				210				150
		100Cr6	350 HB		1.80	0.18	0.40		180	0.65	1.60	0.30	130
		X40CrMoV5,	220 HB 280 HB		2.00		0.40		190 150	0.78	1.50	0.30	140 120
High Alloyed	3	H13, M42, D3, S6-5-2, 12Ni19	320 HB 350 HB	0.50	1.50	0.18	0.35	70	130 110	0.52	1.30	0.28	100 90
		304, 316,	180 HB					170	270	0.78		0.25	190
Austenitic	4	X5CrNi18-9	240 HB	0.50	2.50	0.20	0.40	160	220	0.65	1.80	0.22	170
M Duplex	5	X2CrNiN23-4, S31500	290 HB 310 HB	0.50	2.00	0.18	0.35	80 70	150 140	0.52	1.50	0.24	100 90
Ferritic &		410, X6Cr17,	200 HB		2.50			170	250		1.50		190
Martensitic	6	17-4PH, 430	42 HRc	0.50	2.00	0.18	0.40	120	190	0.46	1.30	0.20	130
		GG20, GG40,	150 HB					170	250	1.30			200
Grey	7	EN-GJL-250,	200 HB	0.50	2.50	0.15	0.60	160	230		1.80	0.35	180
		N030B	250 HB				0.55	150	210	1.17			160
K			150 HB						250	0.98			180
Malleable & Nodular	8	GGG40, GGG70, 50005	200 HB	0.50	2.50	0.15	0.50	120	230	0.85	1.80	0.30	160
			250 HB						190	0.78			140
		Incoloy 800	240 HB						45				32
Fe, Ni & Co based	9	Inconel 700	250 HB	0.50	1.50	0.20	0.35	25	45	0.46	1.20	0.28	30
S		Stellite 21	350 HB					23	40				28
		T40	-		1.80		0.40	35	55	0.52		0.33	45
Ti based	10	TiAl6V4	-	0.50	1.50	0.20	0.35	45	65	0.46	1.20	0.30	55
		X100 CrMo13	45 HRc		1.30		0.30	50	100	0.39	1.20	0.25	80
Steel		, 440C,	50 HRc		1.00		0.25		90	0.26	0.90	0.20	70
H	11	G-X260NiCr42	55 HRc	0.50	0.80	0.11	0.20	40	80	0.20	0.60		60
Chilled Cast Iron		Ni-Hard 2	400 HB		1.00		0.25		60	0.26	0.90	0.18	50
White Cast Iron		G-X300CrMo15	55 HRc		0.80		0.20	30	50	0.20	0.60	0.15	40
NF Aluminium	12	AlSi12	130 HB	0.50	3.00	0.20	0.60	200	400	1.17	1.80	0.40	280

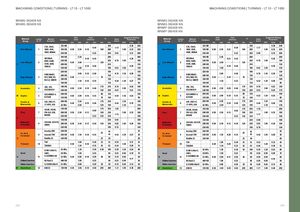

Общий каталог Lamina Technologies 2019 - 2020 - страница 118
