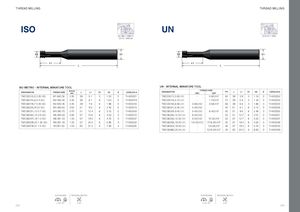

THREAD MILLING THREAD MILLING
ANSI B1.1-1982
| ISO | ISO NUT | UN | UN NUT | ||||
| 1/4P | 1/4P | ||||||
| 60Á | 60Á |
1/8P ISO SCREW 1/8P UNSCREW
ISO 965-1:1999-11 ANSI B1.1-1982 DIN13 : 2005-08
D1 D1
ISO METRIC - INTERNAL MINIATURE TOOL UN - INTERNAL MINIATURE TOOL
| DESIGNATION | THRE UNC | AD SIZE UNF | TPI | L | L1 | D1 | D2 | Z | CATALOG # |
| TMC03011L3 80 UN | - | 0-80UNF | 80 | 39 | 3.9 | 3 | 1.18 | 3 | TH400052 |
| TMC03014L5 72 UN | - | 1-72UNF | 72 | 39 | 5.8 | 3 | 1.44 | 3 | TH400040 |
| TMC03016L6 56 UN | 2-56UNC | 3-56UNF | 56 | 39 | 6.8 | 3 | 1.66 | 3 | TH400034 |
| TMC06021L8 40 UN | 4-40UNC | - | 40 | 51 | 8.1 | 6 | 2.12 | 3 | TH400028 |
| TMC06024L9 40 UN | 5-40UNC | 6-40UNF | 40 | 51 | 9.8 | 6 | 2.46 | 3 | TH400055 |
| TMC06025L10 32 UN | 6-32UNC | - | 32 | 51 | 10.7 | 6 | 2.57 | 3 | TH400031 |
| TMC06032L12 32 UN | 8-32UNC | 10-32UNF | 32 | 57 | 12.7 | 6 | 3.22 | 3 | TH400037 |
| TMC06048L19 20 UN | 1/4-20UNC | 7/16-20UNF | 20 | 57 | 19.4 | 6 | 4.85 | 3 | TH400046 |
| TMC06052L19 28 UN | - | 1/4-28UNF | 28 | 57 | 19.3 | 6 | 5.20 | 3 | TH400043 |
| TMC08066L24 24 UN | - | 5/16-24UNF | 24 | 63 | 24.2 | 8 | 6.65 | 3 | TH400049 |
| DESIGNATION | THREAD SIZE | PITCH mm | L | L1 | D1 | D2 | Z | CATALOG # |
| TMC03012L5 0.35 ISO | M1.6X0.35 | 0.35 | 39 | 5.1 | 3 | 1.20 | 3 | TH400001 |
| TMC06015L6 0.4 ISO | M2.0X0.40 | 0.40 | 39 | 6.1 | 6 | 1.54 | 3 | TH400019 |
| TMC06019L7 0.45 ISO | M2.5X0.45 | 0.45 | 39 | 7.6 | 6 | 1.96 | 3 | TH400016 |
| TMC06024L9 0.5 ISO | M3.0X0.50 | 0.50 | 51 | 9.3 | 6 | 2.40 | 3 | TH400013 |
| TMC06031L12 0.7 ISO | M4.0X0.70 | 0.70 | 51 | 12.4 | 6 | 3.15 | 3 | TH400004 |
| TMC06040L15 0.8 ISO | M5.0X0.80 | 0.80 | 57 | 15.6 | 6 | 4.00 | 3 | TH400010 |
| TMC06047L19 1.0 ISO | M6.0X1.00 | 1.00 | 57 | 19.0 | 6 | 4.75 | 3 | TH400007 |
| TMC06059L24 1.25 ISO | M8.0X1.25 | 1.25 | 57 | 24.3 | 6 | 5.95 | 3 | TH400022 |
| TMC08079L31 1.5 ISO | M10X1.50 | 1.50 | 63 | 31.0 | 8 | 7.90 | 3 | TH400025 |
p. 343 - 344 p. 351 p. 343 - 344 p. 351
