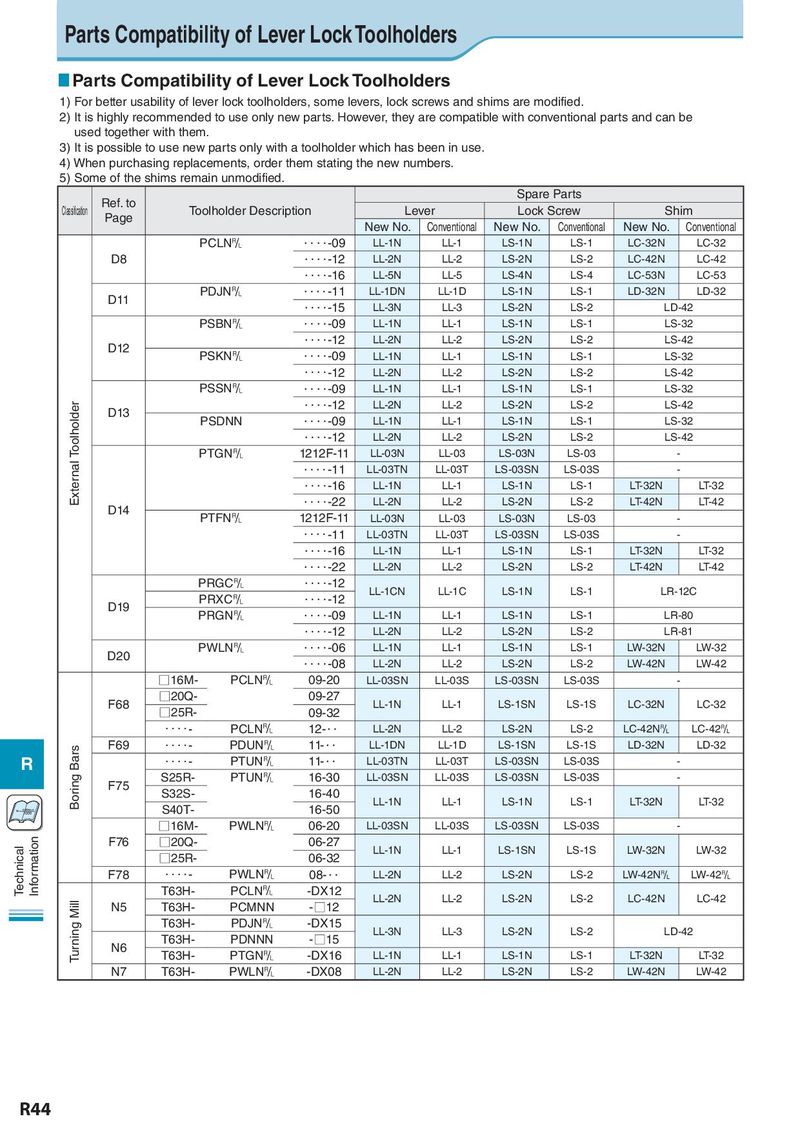

Parts Compatibility of Lever Lock Toolholders  Parts Compatibility of Lever Lock Toolholders 1) For better usability of lever lock toolholders, some levers, lock screws and shims are modified. 2)It is highly recommended to use only new parts. However, they are compatible with conventional parts and can be used together with them. 3) It is possible to use new parts only with a toolholder which has been in use. 4) When purchasing replacements, order them stating the new numbers. 5) Some of the shims remain unmodified. Ref. to Spare Parts Classification Page Toolholder Description Lever Lock Screw Shim New No. Conventional New No. Conventional New No. Conventional PCLN& ‥‥-09 LL-1N LL-1 LS-1N LS-1 LC-32N LC-32 D8 ‥‥-12 LL-2N LL-2 LS-2N LS-2 LC-42N LC-42 ‥‥-16 LL-5N LL-5 LS-4N LS-4 LC-53N LC-53 D11 PDJN& ‥‥-1 1 LL-1DN LL-1D LS-1N LS-1 LD-32N LD-32 ‥‥-15 LL-3N LL-3 LS-2N LS-2 LD-42 PSBN& ‥‥-09 LL-1N LL-1 LS-1N LS-1 LS-32 D12 ‥‥-12 LL-2N LL-2 LS-2N LS-2 LS-42 PSKN& ‥‥-09 LL-1N LL-1 LS-1N LS-1 LS-32 ‥‥-12 LL-2N LL-2 LS-2N LS-2 LS-42 PSSN& ‥‥-09 LL-1N LL-1 LS-1N LS-1 LS-32 External Toolholder D13 ‥‥-12 LL-2N LL-2 LS-2N LS-2 LS-42 PSDNN ‥‥-09 LL-1N LL-1 LS-1N LS-1 LS-32 ‥‥-12 LL-2N LL-2 LS-2N LS-2 LS-42 PTGN& 1212F-11 LL-03N LL-03 LS-03N LS-03 - ‥‥-1 1 LL-03TN LL-03T LS-03SN LS-03S - ‥‥-16 LL-1N LL-1 LS-1N LS-1 LT-32N LT-32 D14 ‥‥-22 LL-2N LL-2 LS-2N LS-2 LT-42N LT-42 PTFN& 1212F-11 LL-03N LL-03 LS-03N LS-03 - ‥‥-1 1 LL-03TN LL-03T LS-03SN LS-03S - ‥‥-16 LL-1N LL-1 LS-1N LS-1 LT-32N LT-32 ‥‥-22 LL-2N LL-2 LS-2N LS-2 LT-42N LT-42 PRGC& ‥‥-12 LL-1CN LL-1C LS-1N LS-1 LR-12C D19 PRXC& ‥‥-12 PRGN& ‥‥-09 LL-1N LL-1 LS-1N LS-1 LR-80 ‥‥-12 LL-2N LL-2 LS-2N LS-2 LR-81 D20 PWLN& ‥‥-06 LL-1N LL-1 LS-1N LS-1 LW-32N LW-32 ‥‥-08 LL-2N LL-2 LS-2N LS-2 LW-42N LW-42 □16M- PCLN& 09-20 LL-03SN LL-03S LS-03SN LS-03S - F68 □20Q- 09-27 LL-1N LL-1 LS-1SN LS-1S LC-32N LC-32 □25R- 09-32 ‥‥- PCLN& 12-‥ LL-2N LL-2 LS-2N LS-2 LC-42N& LC-42& Boring Bars F69 ‥‥- PDUN& 11-‥ LL-1DN LL-1D LS-1SN LS-1S LD-32N LD-32 R ‥‥- PTUN& 11-‥ LL-03TN LL-03T LS-03SN LS-03S - F75 S25R- PTUN& 16-30 LL-03SN LL-03S LS-03SN LS-03S - S32S- 16-40 LL-1N LL-1 LS-1N LS-1 LT-32N LT-32 Vc= π×Dm×n S40T- 16-50 □16M- PWLN& 06-20 LL-03SN LL-03S LS-03SN LS-03S - Technical Information F76 □20Q- 06-27 LL-1N LL-1 LS-1SN LS-1S LW-32N LW-32 □25R- 06-32 F78 ‥‥- PWLN& 08-‥ LL-2N LL-2 LS-2N LS-2 LW-42N& LW-42& T63H- PCLN& -DX12 LL-2N LL-2 LS-2N LS-2 LC-42N LC-42 Turning Mill N5 T63H- PCMNN -□12 T63H- PDJN& -DX15 LL-3N LL-3 LS-2N LS-2 LD-42 N6 T63H- PDNNN -□15 T63H- PTGN& -DX16 LL-1N LL-1 LS-1N LS-1 LT-32N LT-32 N7 T63H- PWLN& -DX08 LL-2N LL-2 LS-2N LS-2 LW-42N LW-42 R44
