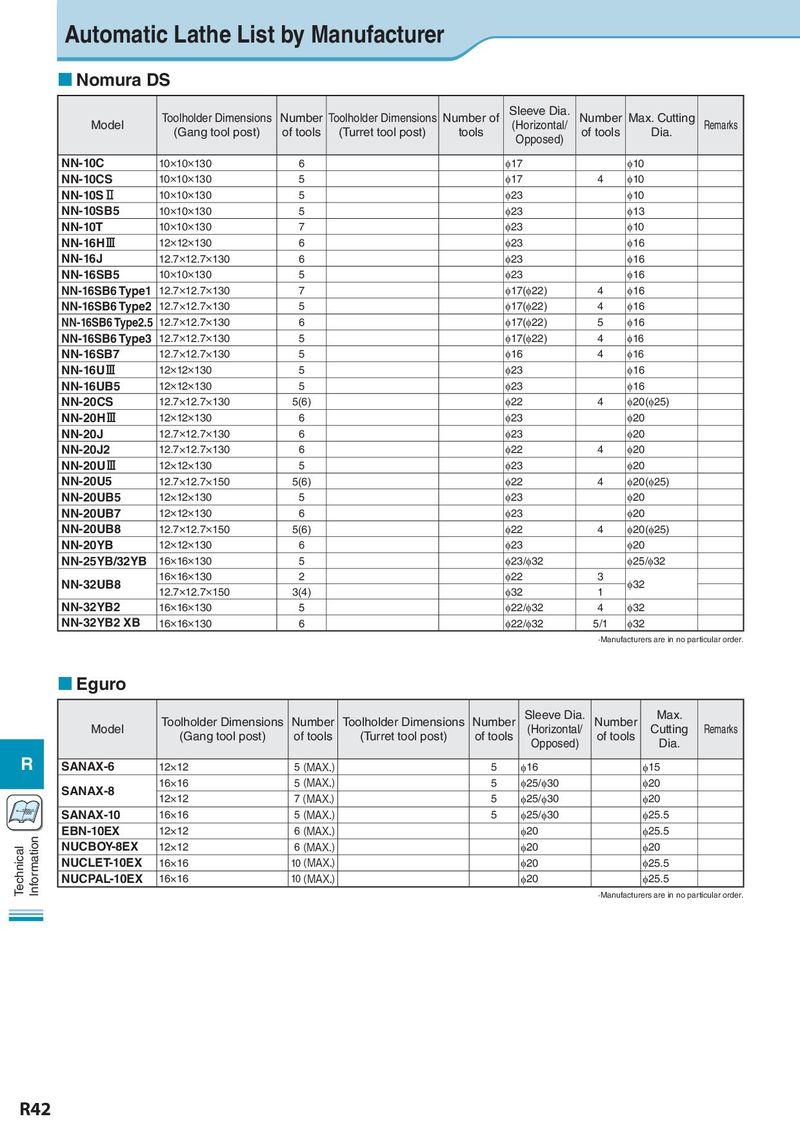

Automatic Lathe List by Manufacturer  Nomura DS Toolholder Dimensions Number Toolholder Dimensions Number of Sleeve Dia. Number Max. Cutting Model (Gang tool post) of tools (Turret tool post) tools (Horizontal/ of tools Dia. Remarks Opposed) NN-10C 10×10×130 6 φ17 φ10 NN-10CS 10×10×130 5 φ17 4 φ10 NN-10SⅡ 10×10×130 5 φ23 φ10 NN-10SB5 10×10×130 5 φ23 φ13 NN-10T 10×10×130 7 φ23 φ10 NN-16HⅢ 12×12×130 6 φ23 φ16 NN-16J 12.7×12.7×130 6 φ23 φ16 NN-16SB5 10×10×130 5 φ23 φ16 NN-16SB6 Type1 12.7×12.7×130 7 φ17(φ22) 4 φ16 NN-16SB6 Type2 12.7×12.7×130 5 φ17(φ22) 4 φ16 NN-16SB6 Type2.5 12.7×12.7×130 6 φ17(φ22) 5 φ16 NN-16SB6 Type3 12.7×12.7×130 5 φ17(φ22) 4 φ16 NN-16SB7 12.7×12.7×130 5 φ16 4 φ16 NN-16UⅢ 12×12×130 5 φ23 φ16 NN-16UB5 12×12×130 5 φ23 φ16 NN-20CS 12.7×12.7×130 5(6) φ22 4 φ20(φ25) NN-20HⅢ 12×12×130 6 φ23 φ20 NN-20J 12.7×12.7×130 6 φ23 φ20 NN-20J2 12.7×12.7×130 6 φ22 4 φ20 NN-20UⅢ 12×12×130 5 φ23 φ20 NN-20U5 12.7×12.7×150 5(6) φ22 4 φ20(φ25) NN-20UB5 12×12×130 5 φ23 φ20 NN-20UB7 12×12×130 6 φ23 φ20 NN-20UB8 12.7×12.7×150 5(6) φ22 4 φ20(φ25) NN-20YB 12×12×130 6 φ23 φ20 NN-25YB/32YB 16×16×130 5 φ23/φ32 φ25/φ32 NN-32UB8 16×16×130 2 φ22 3 φ32 12.7×12.7×150 3(4) φ32 1 NN-32YB2 16×16×130 5 φ22/φ32 4 φ32 NN-32YB2 XB 16×16×130 6 φ22/φ32 5/1 φ32 ·Manufacturers are in no particular order.  Eguro Toolholder Dimensions Number Toolholder Dimensions Number Sleeve Dia. Number Max. Model (Gang tool post) of tools (Turret tool post) of tools (Horizontal/ of tools Cutting Remarks Opposed) Dia. R SANAX-6 12×12 5 (MAX.) 5 φ16 φ15 SANAX-8 16×16 5 (MAX.) 5 φ25/φ30 φ20 12×12 7 (MAX.) 5 φ25/φ30 φ20 Vc= π×Dm×n SANAX-10 16×16 5 (MAX.) 5 φ25/φ30 φ25.5 Information EBN-10EX 12×12 6 (MAX.) φ20 φ25.5 Technical NUCBOY-8EX 12×12 6 (MAX.) φ20 φ20 NUCLET-10EX 16×16 10 (MAX.) φ20 φ25.5 NUCPAL-10EX 16×16 10 (MAX.) φ20 φ25.5 ·Manufacturers are in no particular order. R42
