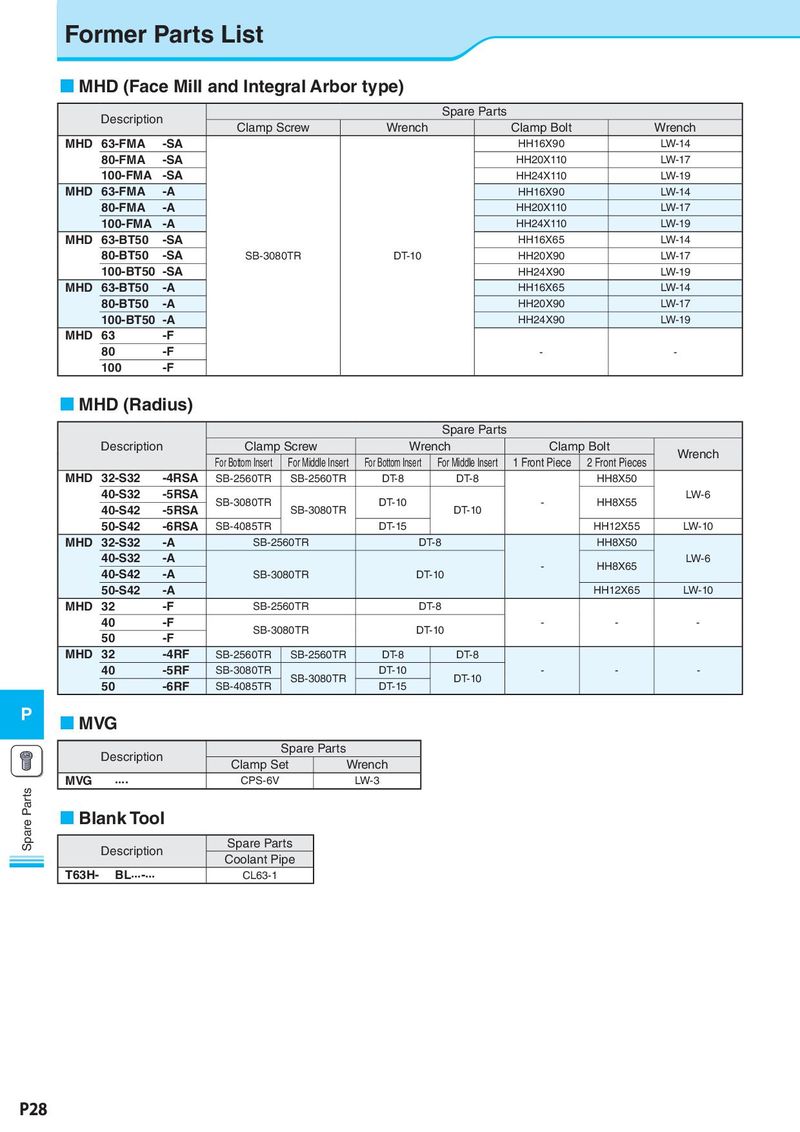

Former Parts List ¢ MHD (Face Mill and Integral Arbor type) Description Spare Parts Clamp Screw Wrench Clamp Bolt Wrench MHD 63-FMA -SA HH16X90 LW-14 80-FMA -SA HH20X110 LW-17 100-FMA -SA HH24X110 LW-19 MHD 63-FMA -A HH16X90 LW-14 80-FMA -A HH20X110 LW-17 100-FMA -A HH24X110 LW-19 MHD 63-BT50 -SA HH16X65 LW-14 80-BT50 -SA SB-3080TR DT-10 HH20X90 LW-17 100-BT50 -SA HH24X90 LW-19 MHD 63-BT50 -A HH16X65 LW-14 80-BT50 -A HH20X90 LW-17 100-BT50 -A HH24X90 LW-19 MHD 63 -F 80 -F - - 100 -F ¢ MHD (Radius) Spare Parts Description Clamp Screw Wrench Clamp Bolt Wrench For Bottom Insert For Middle Insert For Bottom Insert For Middle Insert 1 Front Piece 2 Front Pieces MHD 32-S32 -4RSA SB-2560TR SB-2560TR DT-8 DT-8 HH8X50 40-S32 -5RSA SB-3080TR DT-10 - HH8X55 LW-6 40-S42 -5RSA SB-3080TR DT-10 50-S42 -6RSA SB-4085TR DT-15 HH12X55 LW-10 MHD 32-S32 -A SB-2560TR DT-8 HH8X50 40-S32 -A - HH8X65 LW-6 40-S42 -A SB-3080TR DT-10 50-S42 -A HH12X65 LW-10 MHD 32 -F SB-2560TR DT-8 40 -F SB-3080TR DT-10 - - - 50 -F MHD 32 -4RF SB-2560TR SB-2560TR DT-8 DT-8 40 -5RF SB-3080TR SB-3080TR DT-10 DT-10 - - - 50 -6RF SB-4085TR DT-15 P ¢ MVG Description Spare Parts Clamp Set Wrench MVG ···· CPS-6V LW-3 Spare Parts ¢ Blank Tool Description Spare Parts Coolant Pipe T63H- BL···-··· CL63-1 P28
