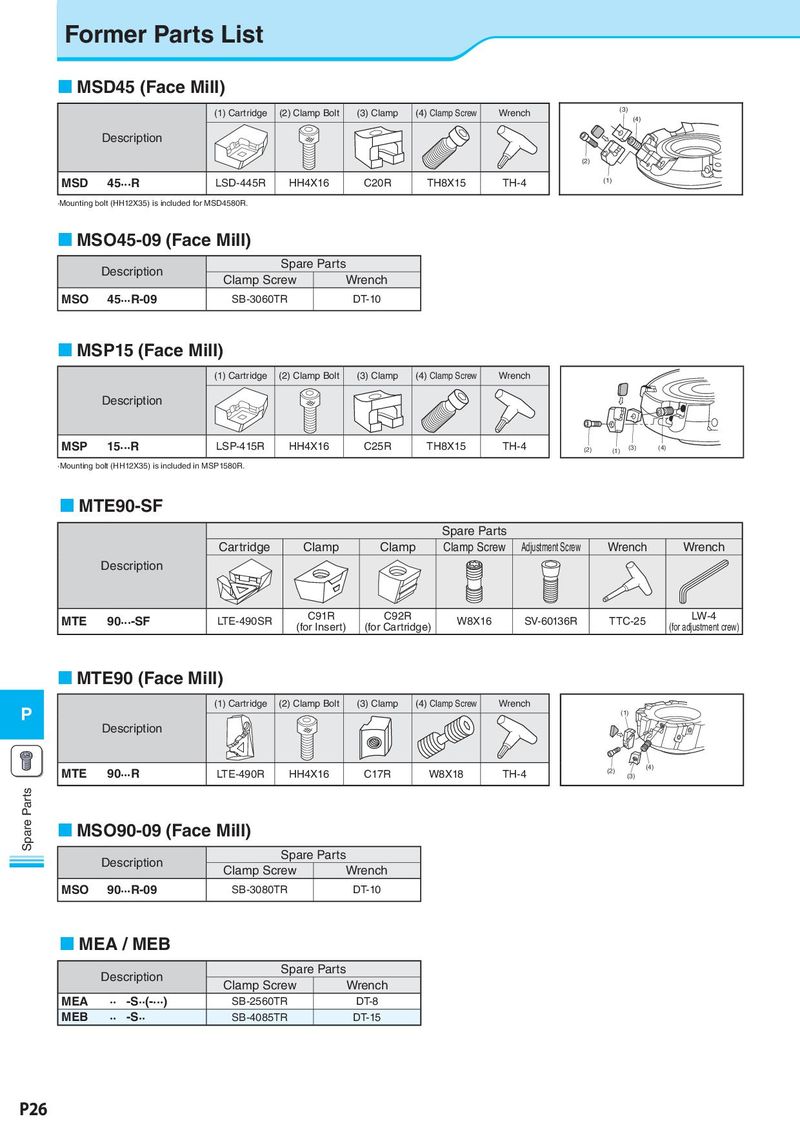

Former Parts List ¢ MSD45 (Face Mill) (1) Cartridge (2) Clamp Bolt (3) Clamp (4) Clamp Screw Wrench (3) (4) Description (2) MSD 45···R LSD-445R HH4X16 C20R TH8X15 TH-4 (1) ∙Mounting bolt (HH12X35) is included for MSD4580R. ¢ MSO45-09 (Face Mill) Description Spare Parts Clamp Screw Wrench MSO 45···R-09 SB-3060TR DT-10 ¢ MSP15 (Face Mill) (1) Cartridge (2) Clamp Bolt (3) Clamp (4) Clamp Screw Wrench Description MSP 15···R LSP-415R HH4X16 C25R TH8X15 TH-4 (2) (1) (3) (4) ∙Mounting bolt (HH12X35) is included in MSP1580R. ¢ MTE90-SF Spare Parts Cartridge Clamp Clamp Clamp Screw Adjustment Screw Wrench Wrench Description MTE 90···-SF LTE-490SR C91R C92R W8X16 SV-60136R TTC-25 LW-4 (for Insert) (for Cartridge) (for adjustment crew) ¢ MTE90 (Face Mill) P (1) Cartridge (2) Clamp Bolt (3) Clamp (4) Clamp Screw Wrench (1) Description data未入 MTE 90···R LTE-490R HH4X16 C17R W8X18 TH-4 (2) (4) (3) Spare Parts ¢ MSO90-09 (Face Mill) Description Spare Parts Clamp Screw Wrench MSO 90···R-09 SB-3080TR DT-10 ¢ MEA / MEB Description Spare Parts Clamp Screw Wrench MEA ·· -S··(-···) SB-2560TR DT-8 MEB ·· -S·· SB-4085TR DT-15 P26
