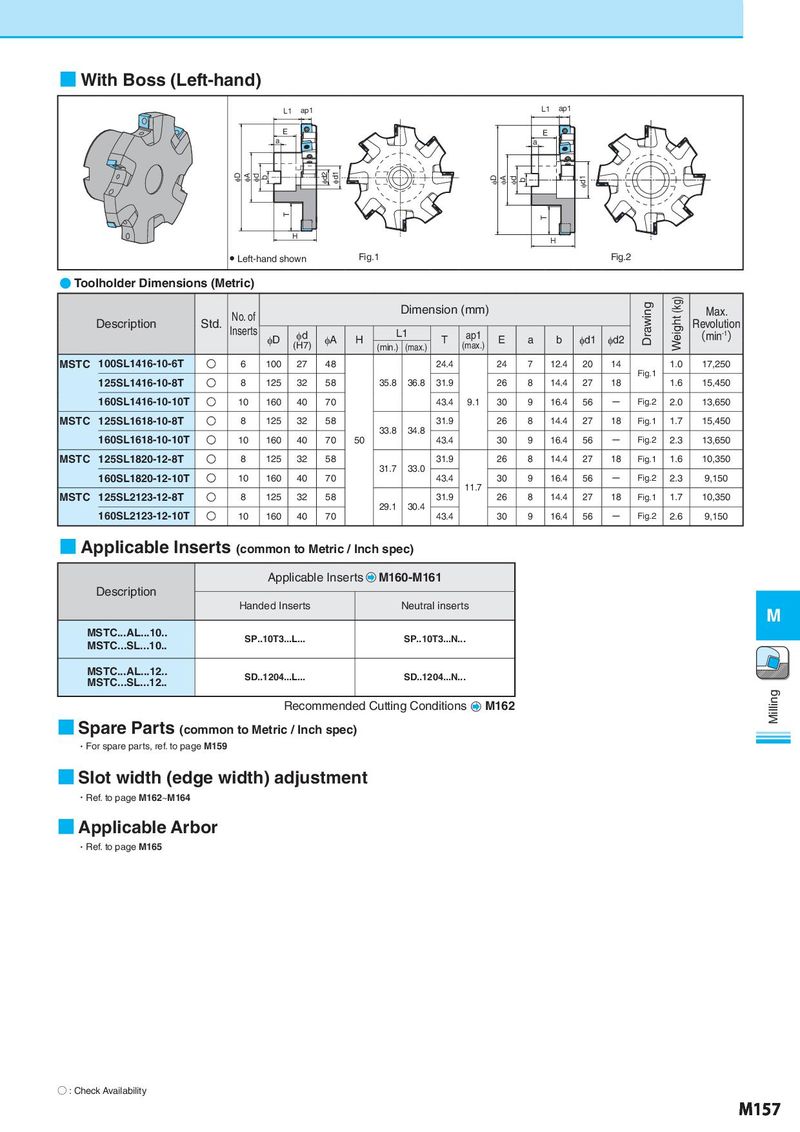

■ With Boss (Left-hand) L1 ap1 L1 ap1 E E a a ID IA Iｄ ｂ Id2 Id1 ID IA Iｄ ｂ Id1 T T H H ● Left-hand shown Fig.1 Fig.2 ● Toolholder Dimensions (Metric) No. of Dimension (mm) Drawing Weight (kg) Max. Description Std. Inserts L1 Revolution φD φd φA H T ap1 E a b φd1 φd2 （min-1） (H7) (min.) (max.) (max.) MSTC 100SL1416-10-6T O 6 100 27 48 24.4 24 7 12.4 20 14 1.0 17,250 Fig.1 125SL1416-10-8T O 8 125 32 58 35.8 36.8 31.9 26 8 14.4 27 18 1.6 15,450 160SL1416-10-10T O 10 160 40 70 43.4 9.1 30 9 16.4 56 － Fig.2 2.0 13,650 MSTC 125SL1618-10-8T O 8 125 32 58 31.9 26 8 14.4 27 18 Fig.1 1.7 15,450 33.8 34.8 160SL1618-10-10T O 10 160 40 70 50 43.4 30 9 16.4 56 － Fig.2 2.3 13,650 MSTC 125SL1820-12-8T O 8 125 32 58 31.9 26 8 14.4 27 18 Fig.1 1.6 10,350 31.7 33.0 160SL1820-12-10T O 10 160 40 70 43.4 30 9 16.4 56 － Fig.2 2.3 9,150 11.7 MSTC 125SL2123-12-8T O 8 125 32 58 31.9 26 8 14.4 27 18 Fig.1 1.7 10,350 29.1 30.4 160SL2123-12-10T O 10 160 40 70 43.4 30 9 16.4 56 － Fig.2 2.6 9,150 ■ Applicable Inserts (common to Metric / Inch spec) Applicable Inserts M160-M161 Description Handed Inserts Neutral inserts M MSTC...AL...10.. SP..10T3...L... SP..10T3...N... MSTC...SL...10.. MSTC...AL...12.. SD..1204...L... SD..1204...N... MSTC...SL...12.. Recommended Cutting Conditions M162 Milling ■ Spare Parts (common to Metric / Inch spec) ・For spare parts, ref. to page M159 ■ Slot width (edge width) adjustment ・Ref. to page M162~M164 ■ Applicable Arbor ・Ref. to page M165 ○ : Check Availability M157
