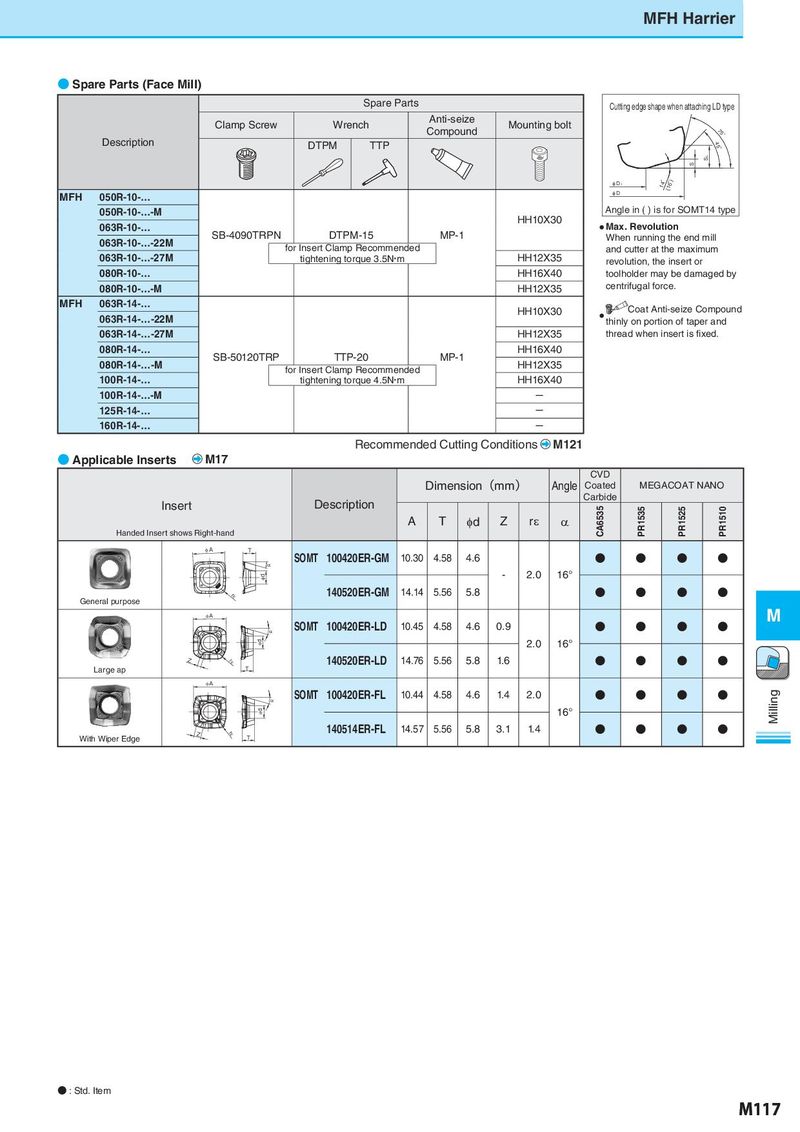

MFH Harrier ● Spare Parts (Face Mill) Spare Parts Cutting edge shape when attaching LD type Clamp Screw Wrench Anti-seize Mounting bolt Compound 75° Description DTPM TTP 45° SL S φD1 14°(16 )° MFH 050R-10-… φD 050R-10-…-M Angle in ( ) is for SOMT14 type 063R-10-… HH10X30 ● Max. Revolution 063R-10-…-22M SB-4090TRPN DTPM-15 MP-1 When running the end mill for Insert Clamp Recommended and cutter at the maximum 063R-10-…-27M tightening torque 3.5N・m HH12X35 revolution, the insert or 080R-10-… HH16X40 toolholder may be damaged by 080R-10-…-M HH12X35 centrifugal force. MFH 063R-14-… HH10X30 Coat Anti-seize Compound 063R-14-…-22M ● thinly on portion of taper and 063R-14-…-27M HH12X35 thread when insert is fixed. 080R-14-… SB-50120TRP TTP-20 MP-1 HH16X40 080R-14-…-M for Insert Clamp Recommended HH12X35 100R-14-… tightening torque 4.5N・m HH16X40 100R-14-…-M － 125R-14-… － 160R-14-… － Recommended Cutting Conditions M121 ● Applicable Inserts M17 CVD Dimension（mm） Angle Coated MEGACOAT NANO Insert Description Carbide A T φd Z rε α CA6535 PR1535 PR1525 PR1510 Handed Insert shows Right-hand φＡ Ｔ α SOMT 100420ER-GM 10.30 4.58 4.6 ● ● ● ● φｄ - 2.0 16° ｒε 140520ER-GM 14.14 5.56 5.8 ● ● ● ● General purpose φＡ M α SOMT 100420ER-LD 10.45 4.58 4.6 0.9 ● ● ● ● φｄ 2.0 16° Ｚ ｒε 140520ER-LD 14.76 5.56 5.8 1.6 ● ● ● ● Large ap Ｔ φＡ α SOMT 100420ER-FL 10.44 4.58 4.6 1.4 2.0 ● ● ● ● Milling φｄ 16° Ｚ ｒε 140514ER-FL 14.57 5.56 5.8 3.1 1.4 ● ● ● ● With Wiper Edge Ｔ ● : Std. Item M117
