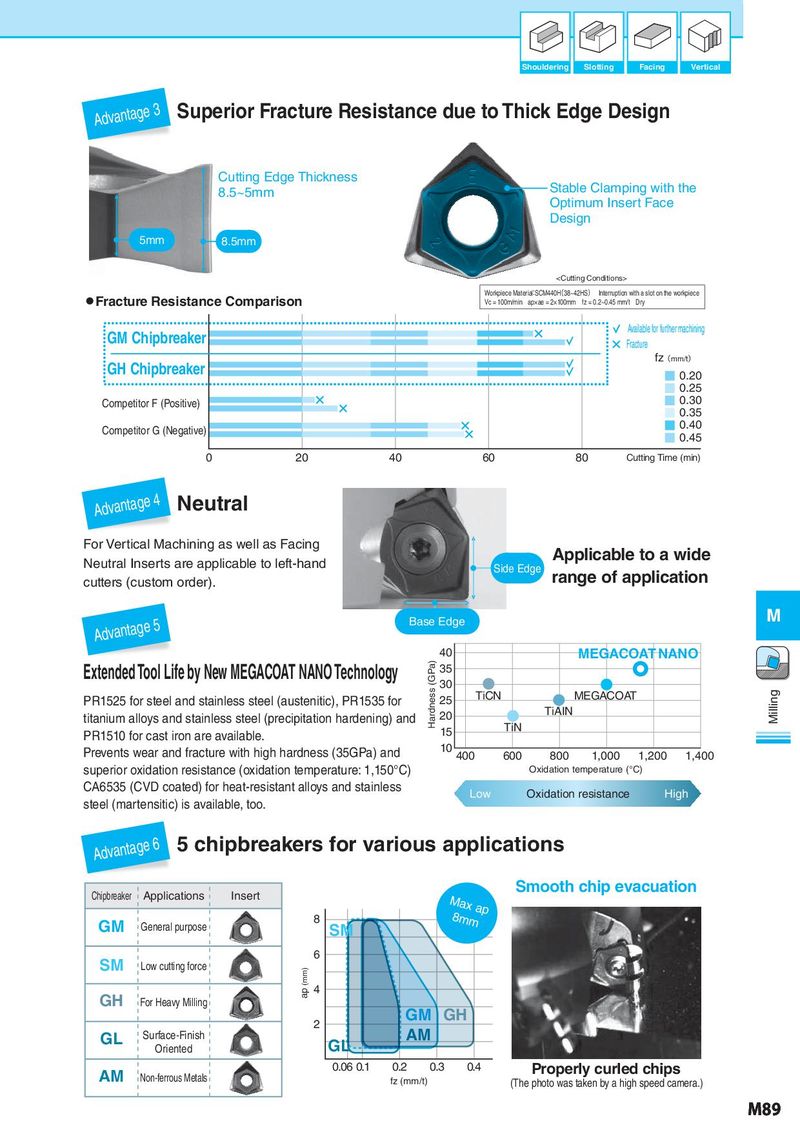

Shouldering Slotting Facing Vertical Advantage 3 Superior Fracture Resistance due to Thick Edge Design Cutting Edge Thickness Stable Clamping with the 8.5~5mm Optimum Insert Face Design 5mm 8.5mm ● Fracture Resistance Comparison Workpiece Materia：l SCM440H（38~42HS）　 Interruption with a slot on the workpiece Vc = 100m/min　ap×ae = 2×100mm fz = 0.2~0.45 mm/t　Dry GM Chipbreaker Available for further machining Fracture GH Chipbreaker fz（mm/t） 0.20 0.25 Competitor F (Positive) 0.30 0.35 Competitor G (Negative) 0.40 0.45 0 20 40 60 80 Cutting Time (min) Advantage 4 Neutral For Vertical Machining as well as Facing Applicable to a wide Neutral Inserts are applicable to left-hand Side Edge cutters (custom order). range of application Advantage 5 Base Edge M 40 MEGACOAT NANO Extended Tool Life by New MEGACOAT NANO Technology Hardness (GPa) 35 30 Milling PR1525 for steel and stainless steel (austenitic), PR1535 for 25 TiCN MEGACOAT titanium alloys and stainless steel (precipitation hardening) and 20 TiAIN PR1510 for cast iron are available. 15 TiN Prevents wear and fracture with high hardness (35GPa) and 10 400 600 800 1,000 1,200 1,400 superior oxidation resistance (oxidation temperature: 1,150°C) Oxidation temperature (°C) CA6535 (CVD coated) for heat-resistant alloys and stainless Low Oxidation resistance High steel (martensitic) is available, too. Advantage 6 5 chipbreakers for various applications Chipbreaker Applications Insert Smooth chip evacuation GM General purpose 8 SM M8maxmap SM 6 Low cutting force ap (mm) GH 4 For Heavy Milling 2 GM GH GL Surface-Finish GL AM Oriented AM 0.06 0.1 0.2 0.3 0.4 Properly curled chips Non-ferrous Metals fz (mm/t) (The photo was taken by a high speed camera.) M89
