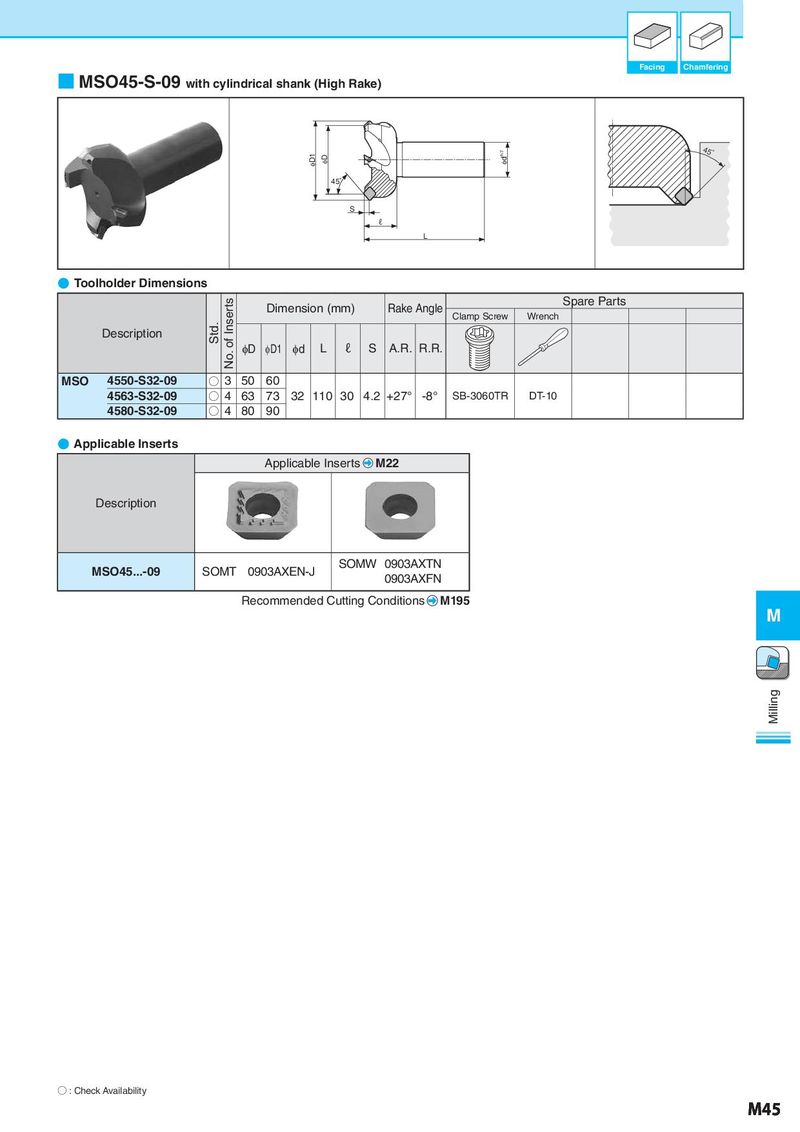

Facing Chamfering ■ MSO45-S-09 with cylindrical shank (High Rake) φD1 φD φd h7 45° 45° S ℓ L ● Toolholder Dimensions No. of Inserts Dimension (mm) Rake Angle Spare Parts Clamp Screw Wrench Description Std. φD φD1 φd L ℓ S A.R. R.R. MSO 4550-S32-09 ○ 3 50 60 4563-S32-09 ○ 4 63 73 32 110 30 4.2 +27° -8° SB-3060TR DT-10 4580-S32-09 ○ 4 80 90 ● Applicable Inserts Applicable Inserts M22 Description MSO45...-09 SOMT 0903AXEN-J SOMW 0903AXTN 0903AXFN Recommended Cutting Conditions M195 M Milling ○ : Check Availability M45
