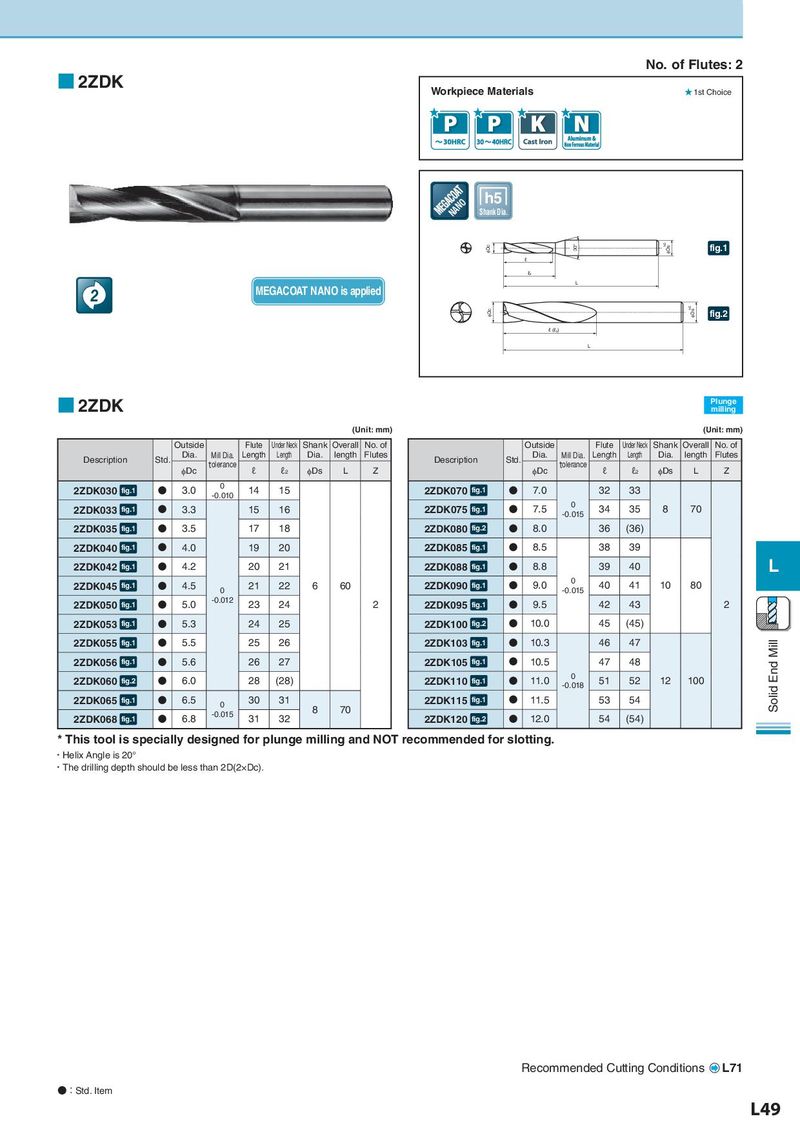

No. of Flutes: 2 ■ 2ZDK Workpiece Materials ★ 1st Choice NANO h5 Shank Dia. IDc 30° h5IDs fig.1 ℓ ℓ2 L 2 MEGACOAT NANO is applied IDc IDsh5 fig.2 ℓ (ℓ2) L ■ 2ZDK  Plunge milling (Unit: mm) (Unit: mm) Outside Flute Under Neck Shank Overall No. of Outside Flute Under Neck Shank Overall No. of Description Std. Dia. Mill Dia. Length Length Dia. length Flutes Description Std. Dia. Mill Dia. Length Length Dia. length Flutes φDc tolerance ℓ ℓ2 φDs L Z φDc tolerance ℓ ℓ2 φDs L Z 2ZDK030 fig.1 N 3.0 0 14 15 2ZDK070 fig.1 N 7.0 32 33 -0.010 2ZDK033 fig.1 N 3.3 15 16 2ZDK075 fig.1 N 7.5 0 34 35 8 70 -0.015 2ZDK035 fig.1 N 3.5 17 18 2ZDK080 fig.2 N 8.0 36 (36) 2ZDK040 fig.1 N 4.0 19 20 2ZDK085 fig.1 N 8.5 38 39 2ZDK042 fig.1 N 4.2 20 21 2ZDK088 fig.1 N 8.8 39 40 L 2ZDK045 fig.1 N 4.5 21 22 6 60 2ZDK090 fig.1 N 9.0 0 40 41 10 80 0 -0.015 2ZDK050 fig.1 N 5.0 -0.012 23 24 2 2ZDK095 fig.1 N 9.5 42 43 2 2ZDK053 fig.1 N 5.3 24 25 2ZDK100 fig.2 N 10.0 45 (45) 2ZDK055 fig.1 N 5.5 25 26 2ZDK103 fig.1 N 10.3 46 47 Solid End Mill 2ZDK056 fig.1 N 5.6 26 27 2ZDK105 fig.1 N 10.5 47 48 2ZDK060 fig.2 N 6.0 28 (28) 2ZDK110 fig.1 N 11.0 0 51 52 12 100 -0.018 2ZDK065 fig.1 N 6.5 0 30 31 2ZDK115 fig.1 N 11.5 53 54 -0.015 8 70 2ZDK068 fig.1 N 6.8 31 32 2ZDK120 fig.2 N 12.0 54 (54) * This tool is specially designed for plunge milling and NOT recommended for slotting. ・Helix Angle is 20° ・The drilling depth should be less than 2D(2×Dc). Recommended Cutting Conditions L71 ●：Std. Item L49
