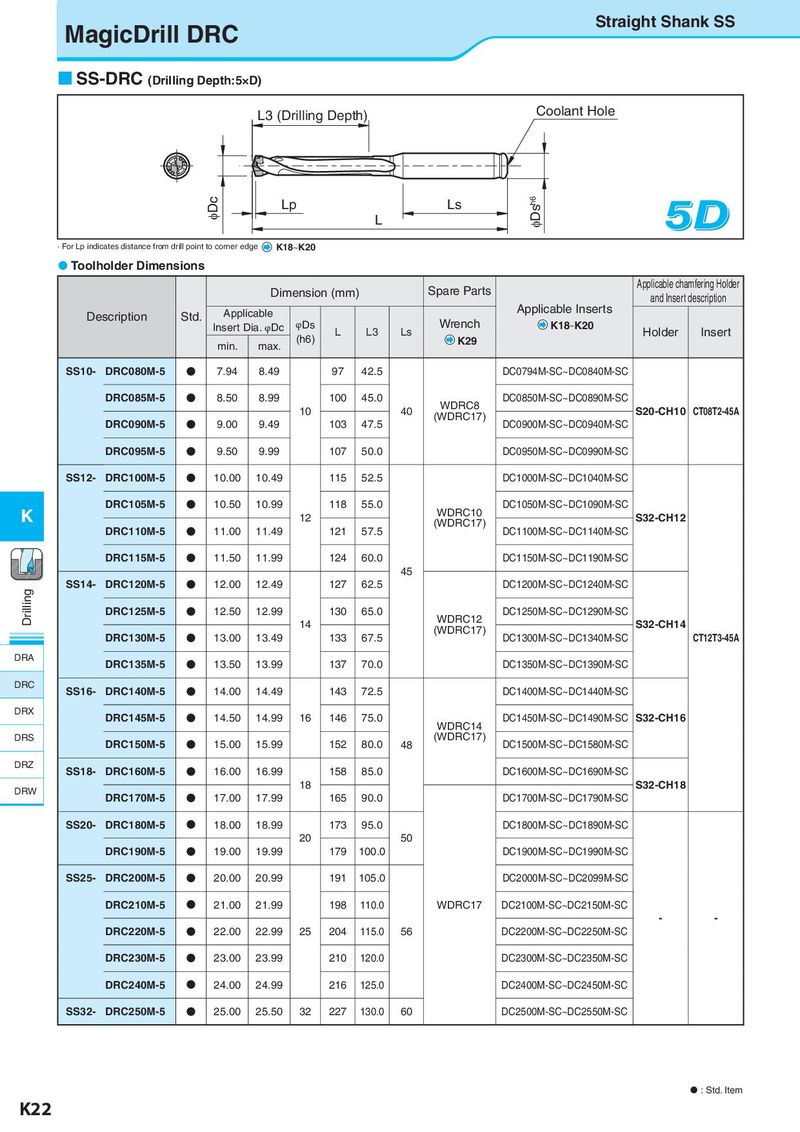

MagicDrill DRC Straight Shank SS  SS-DRC (Drilling Depth:5×D) L3 (Drilling Depth) Coolant Hole IDc Lp Ls IDsh6 5D L · For Lp indicates distance from drill point to corner edge K18~K20  Toolholder Dimensions Dimension (mm) Spare Parts Applicable chamfering Holder Applicable Inserts and Insert description Description Std. Applicable Insert Dia. φDc φDs L L3 Ls Wrench K18~K20 Holder Insert min. max. (h6) K29 SS10- DRC080M-5 N 7.94 8.49 97 42.5 DC0794M-SC~DC0840M-SC DRC085M-5 N 8.50 8.99 100 45.0 WDRC8 DC0850M-SC~DC0890M-SC 10 40 (WDRC17) S20-CH10 CT08T2-45A DRC090M-5 N 9.00 9.49 103 47.5 DC0900M-SC~DC0940M-SC DRC095M-5 N 9.50 9.99 107 50.0 DC0950M-SC~DC0990M-SC SS12- DRC100M-5 N 10.00 10.49 115 52.5 DC1000M-SC~DC1040M-SC K DRC105M-5 N 10.50 10.99 118 55.0 WDRC10 DC1050M-SC~DC1090M-SC 12 (WDRC17) S32-CH12 DRC110M-5 N 11.00 11.49 121 57.5 DC1100M-SC~DC1140M-SC DRC115M-5 N 11.50 11.99 124 60.0 DC1150M-SC~DC1190M-SC 45 Drilling SS14- DRC120M-5 N 12.00 12.49 127 62.5 DC1200M-SC~DC1240M-SC DRC125M-5 N 12.50 12.99 130 65.0 WDRC12 DC1250M-SC~DC1290M-SC 14 (WDRC17) S32-CH14 DRC130M-5 N 13.00 13.49 133 67.5 DC1300M-SC~DC1340M-SC CT12T3-45A DRA DRC135M-5 N 13.50 13.99 137 70.0 DC1350M-SC~DC1390M-SC DRC SS16- DRC140M-5 N 14.00 14.49 143 72.5 DC1400M-SC~DC1440M-SC DRX DRC145M-5 N 14.50 14.99 16 146 75.0 DC1450M-SC~DC1490M-SC S32-CH16 WDRC14 DRS DRC150M-5 N 15.00 15.99 152 80.0 48 (WDRC17) DC1500M-SC~DC1580M-SC DRZ SS18- DRC160M-5 N 16.00 16.99 158 85.0 DC1600M-SC~DC1690M-SC DRW 18 S32-CH18 DRC170M-5 N 17.00 17.99 165 90.0 DC1700M-SC~DC1790M-SC SS20- DRC180M-5 N 18.00 18.99 173 95.0 DC1800M-SC~DC1890M-SC 20 50 DRC190M-5 N 19.00 19.99 179 100.0 DC1900M-SC~DC1990M-SC SS25- DRC200M-5 N 20.00 20.99 191 105.0 DC2000M-SC~DC2099M-SC DRC210M-5 N 21.00 21.99 198 110.0 WDRC17 DC2100M-SC~DC2150M-SC - - DRC220M-5 N 22.00 22.99 25 204 115.0 56 DC2200M-SC~DC2250M-SC DRC230M-5 N 23.00 23.99 210 120.0 DC2300M-SC~DC2350M-SC DRC240M-5 N 24.00 24.99 216 125.0 DC2400M-SC~DC2450M-SC SS32- DRC250M-5 N 25.00 25.50 32 227 130.0 60 DC2500M-SC~DC2550M-SC  : Std. Item K22
