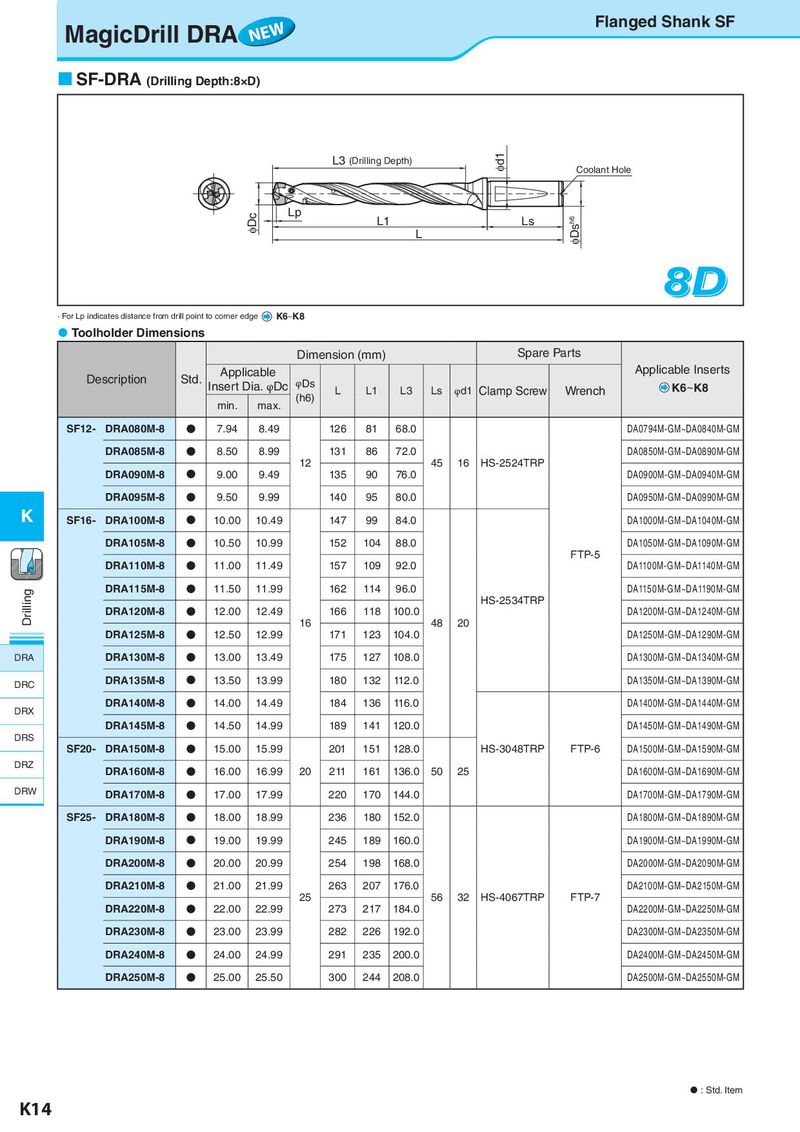

MagicDrill DRA NEW Flanged Shank SF  SF-DRA (Drilling Depth:8×D) 8D L3 (Drilling Depth) φd1 Coolant Hole φDc Lp L1 Ls φDsh6 L 8D · For Lp indicates distance from drill point to corner edge K6~K8 フランジ付きシャンク SF型  Toolholder Dimensions Dimension (mm) Spare Parts Description Std. Applicable Applicable Inserts Insert Dia. φDc φDs L L1 L3 Ls φd1 Clamp Screw Wrench K6~K8 min. max. (h6) SF12- DRA080M-8 N 7.94 8.49 126 81 68.0 DA0794M-GM~DA0840M-GM DRA085M-8 N 8.50 8.99 131 86 72.0 DA0850M-GM~DA0890M-GM 12 45 16 HS-2524TRP DRA090M-8 N 9.00 9.49 135 90 76.0 DA0900M-GM~DA0940M-GM DRA095M-8 N 9.50 9.99 140 95 80.0 DA0950M-GM~DA0990M-GM K SF16- DRA100M-8 N 10.00 10.49 147 99 84.0 DA1000M-GM~DA1040M-GM DRA105M-8 N 10.50 10.99 152 104 88.0 DA1050M-GM~DA1090M-GM FTP-5 DRA110M-8 N 11.00 11.49 157 109 92.0 DA1100M-GM~DA1140M-GM Drilling DRA115M-8 N 11.50 11.99 162 114 96.0 DA1150M-GM~DA1190M-GM HS-2534TRP DRA120M-8 N 12.00 12.49 166 118 100.0 DA1200M-GM~DA1240M-GM 16 48 20 DRA125M-8 N 12.50 12.99 171 123 104.0 DA1250M-GM~DA1290M-GM DRA DRA130M-8 N 13.00 13.49 175 127 108.0 DA1300M-GM~DA1340M-GM DRC DRA135M-8 N 13.50 13.99 180 132 112.0 DA1350M-GM~DA1390M-GM DRX DRA140M-8 N 14.00 14.49 184 136 116.0 DA1400M-GM~DA1440M-GM DRA145M-8 N 14.50 14.99 189 141 120.0 DA1450M-GM~DA1490M-GM DRS SF20- DRA150M-8 N 15.00 15.99 201 151 128.0 HS-3048TRP FTP-6 DA1500M-GM~DA1590M-GM DRZ DRA160M-8 N 16.00 16.99 20 211 161 136.0 50 25 DA1600M-GM~DA1690M-GM DRW DRA170M-8 N 17.00 17.99 220 170 144.0 DA1700M-GM~DA1790M-GM SF25- DRA180M-8 N 18.00 18.99 236 180 152.0 DA1800M-GM~DA1890M-GM DRA190M-8 N 19.00 19.99 245 189 160.0 DA1900M-GM~DA1990M-GM DRA200M-8 N 20.00 20.99 254 198 168.0 DA2000M-GM~DA2090M-GM DRA210M-8 N 21.00 21.99 263 207 176.0 DA2100M-GM~DA2150M-GM 25 56 32 HS-4067TRP FTP-7 DRA220M-8 N 22.00 22.99 273 217 184.0 DA2200M-GM~DA2250M-GM DRA230M-8 N 23.00 23.99 282 226 192.0 DA2300M-GM~DA2350M-GM DRA240M-8 N 24.00 24.99 291 235 200.0 DA2400M-GM~DA2450M-GM DRA250M-8 N 25.00 25.50 300 244 208.0 DA2500M-GM~DA2550M-GM  : Std. Item K14
