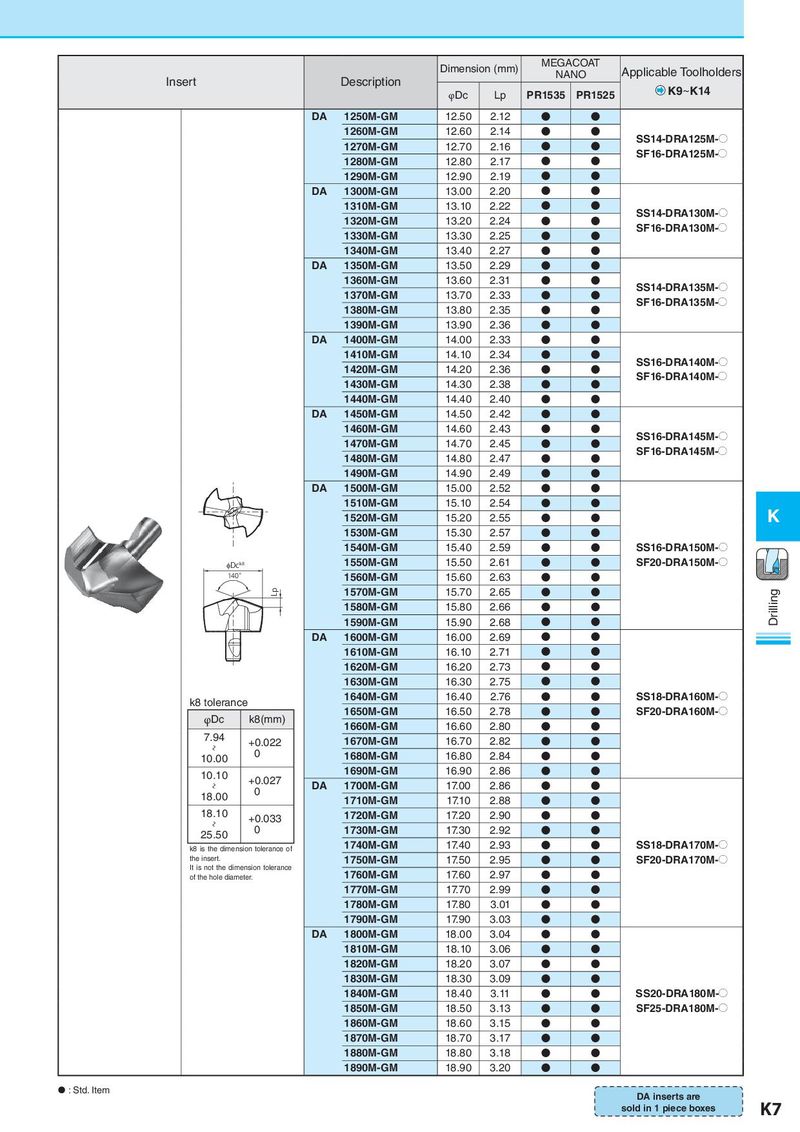

Dimension (mm) MEGACOAT Applicable Toolholders Insert Description NANO φDc Lp PR1535 PR1525 K9~K14 DA 1250M-GM 12.50 2.12 N N 1260M-GM 12.60 2.14 N N SS14-DRA125M-O 1270M-GM 12.70 2.16 N N SF16-DRA125M-O 1280M-GM 12.80 2.17 N N 1290M-GM 12.90 2.19 N N DA 1300M-GM 13.00 2.20 N N 1310M-GM 13.10 2.22 N N SS14-DRA130M-O 1320M-GM 13.20 2.24 N N SF16-DRA130M-O 1330M-GM 13.30 2.25 N N 1340M-GM 13.40 2.27 N N DA 1350M-GM 13.50 2.29 N N 1360M-GM 13.60 2.31 N N SS14-DRA135M-O 1370M-GM 13.70 2.33 N N SF16-DRA135M-O 1380M-GM 13.80 2.35 N N 1390M-GM 13.90 2.36 N N DA 1400M-GM 14.00 2.33 N N 1410M-GM 14.10 2.34 N N SS16-DRA140M-O 1420M-GM 14.20 2.36 N N SF16-DRA140M-O 1430M-GM 14.30 2.38 N N 1440M-GM 14.40 2.40 N N DA 1450M-GM 14.50 2.42 N N 1460M-GM 14.60 2.43 N N SS16-DRA145M-O 1470M-GM 14.70 2.45 N N SF16-DRA145M-O 1480M-GM 14.80 2.47 N N 1490M-GM 14.90 2.49 N N DA 1500M-GM 15.00 2.52 N N 1510M-GM 15.10 2.54 N N 1520M-GM 15.20 2.55 N N K 1530M-GM 15.30 2.57 N N 1540M-GM 15.40 2.59 N N SS16-DRA150M-O φDck8 1550M-GM 15.50 2.61 N N SF20-DRA150M-O 140° 1560M-GM 15.60 2.63 N N Lp 1570M-GM 15.70 2.65 N N Drilling 1580M-GM 15.80 2.66 N N 1590M-GM 15.90 2.68 N N DA 1600M-GM 16.00 2.69 N N 1610M-GM 16.10 2.71 N N 1620M-GM 16.20 2.73 N N 1630M-GM 16.30 2.75 N N k8 tolerance 1640M-GM 16.40 2.76 N N SS18-DRA160M-O チップ図 1650M-GM 16.50 2.78 N N SF20-DRA160M-O φDc k8(mm) 1660M-GM 16.60 2.80 N N 7.94 +0.022 1670M-GM 16.70 2.82 N N 〜 0 10.00 1680M-GM 16.80 2.84 N N 10.10 1690M-GM 16.90 2.86 N N 〜 +0.027 DA 1700M-GM 17.00 2.86 N N 18.00 0 1710M-GM 17.10 2.88 N N 18.10 +0.033 1720M-GM 17.20 2.90 N N 〜 0 1730M-GM 17.30 2.92 N N 25.50 k8 is the dimension tolerance of 1740M-GM 17.40 2.93 N N SS18-DRA170M-O the insert. 1750M-GM 17.50 2.95 N N SF20-DRA170M-O It is not the dimension tolerance 1760M-GM 17.60 2.97 N N of the hole diameter. 1770M-GM 17.70 2.99 N N 1780M-GM 17.80 3.01 N N 1790M-GM 17.90 3.03 N N DA 1800M-GM 18.00 3.04 N N 1810M-GM 18.10 3.06 N N 1820M-GM 18.20 3.07 N N 1830M-GM 18.30 3.09 N N 1840M-GM 18.40 3.11 N N SS20-DRA180M-O 1850M-GM 18.50 3.13 N N SF25-DRA180M-O 1860M-GM 18.60 3.15 N N 1870M-GM 18.70 3.17 N N 1880M-GM 18.80 3.18 N N 1890M-GM 18.90 3.20 N N  : Std. Item DA inserts are sold in 1 piece boxes K7
