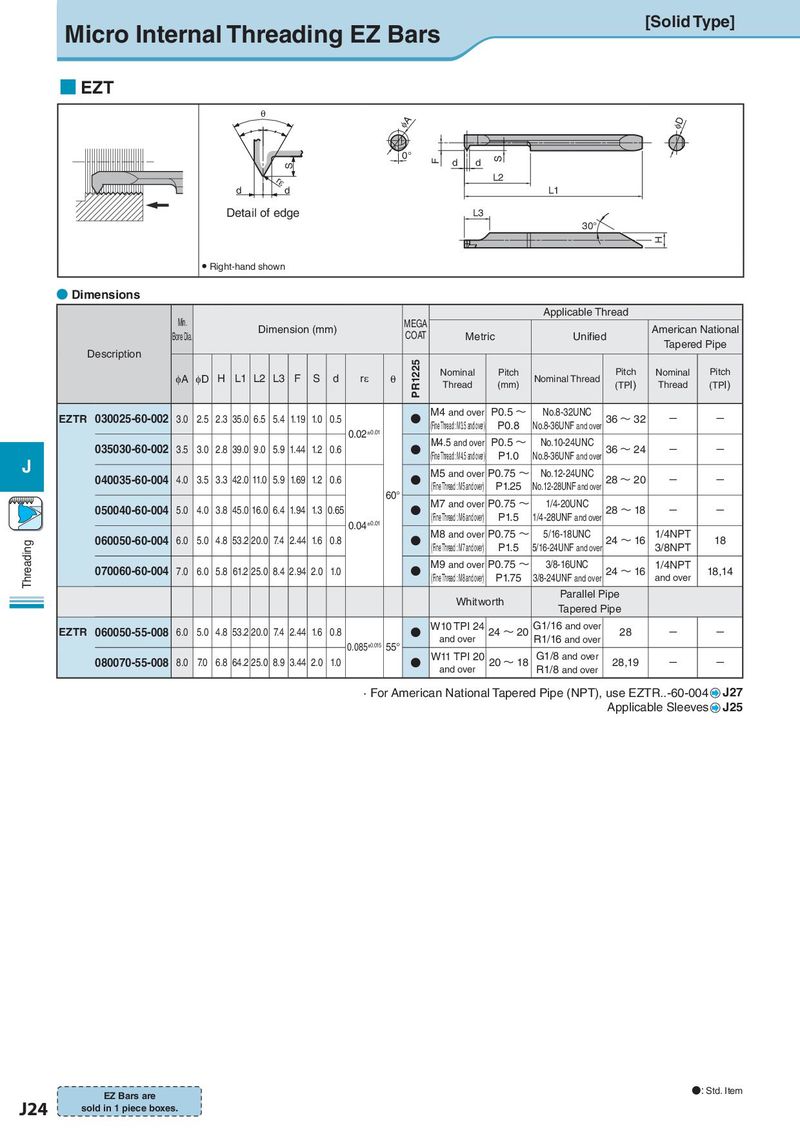

Micro Internal Threading EZ Bars [Solid Type] ■ EZT θ φD φA 0° F d d S S rε L2 d d L1 Detail of edge L3 30° H ● Right-hand shown ● Dimensions Applicable Thread Min. Dimension (mm) MEGA American National Bore Dia. COAT Metric Unified Tapered Pipe Description PR1225 φA φD H L1 L2 L3 F S d rε θ Nominal Pitch Nominal Thread Pitch Nominal Pitch Thread (mm) (TPI) Thread (TPI) EZTR 030025-60-002 3.0 2.5 2.3 35.0 6.5 5.4 1.19 1.0 0.5 ● M4 and over P0.5 ～ No.8-32UNC 36 ～ 32 － － 0.02±0.01 (Fine Thread : M3.5 and over) P0.8 No.8-36UNF and over 035030-60-002 3.5 3.0 2.8 39.0 9.0 5.9 1.44 1.2 0.6 ● M4.5 and over P0.5 ～ No.10-24UNC 36 ～ 24 － － J (Fine Thread : M4.5 and over) P1.0 No.8-36UNF and over 040035-60-004 4.0 3.5 3.3 42.0 11.0 5.9 1.69 1.2 0.6 ● M5 and over P0.75 ～ No.12-24UNC 28 ～ 20 － － 60° (Fine Thread : M5 and over) P1.25 No.12-28UNF and over 050040-60-004 5.0 4.0 3.8 45.0 16.0 6.4 1.94 1.3 0.65 ● M7 and over P0.75 ～ 1/4-20UNC 28 ～ 18 － － 0.04±0.01 (Fine Thread : M6 and over) P1.5 1/4-28UNF and over 060050-60-004 6.0 5.0 4.8 53.2 20.0 7.4 2.44 1.6 0.8 ● M8 and over P0.75 ～ 5/16-18UNC 24 ～ 16 1/4NPT 18 Threading (Fine Thread : M7 and over) P1.5 5/16-24UNF and over 3/8NPT 070060-60-004 7.0 6.0 5.8 61.2 25.0 8.4 2.94 2.0 1.0 ● M9 and over P0.75 ～ 3/8-16UNC 24 ～ 16 1/4NPT 18,14 (Fine Thread : M8 and over) P1.75 3/8-24UNF and over and over Whitworth Parallel Pipe Tapered Pipe EZTR 060050-55-008 6.0 5.0 4.8 53.2 20.0 7.4 2.44 1.6 0.8 ● W10 TPI 24 24 ～ 20 G1/16 and over 28 － － 0.085±0.015 55° and over R1/16 and over 080070-55-008 8.0 7.0 6.8 64.2 25.0 8.9 3.44 2.0 1.0 ● W11 TPI 20 20 ～ 18 G1/8 and over 28,19 － － and over R1/8 and over · For American National Tapered Pipe (NPT), use EZTR..-60-004 J27 Applicable Sleeves J25 EZ Bars are ●: Std. Item J24 sold in 1 piece boxes.
