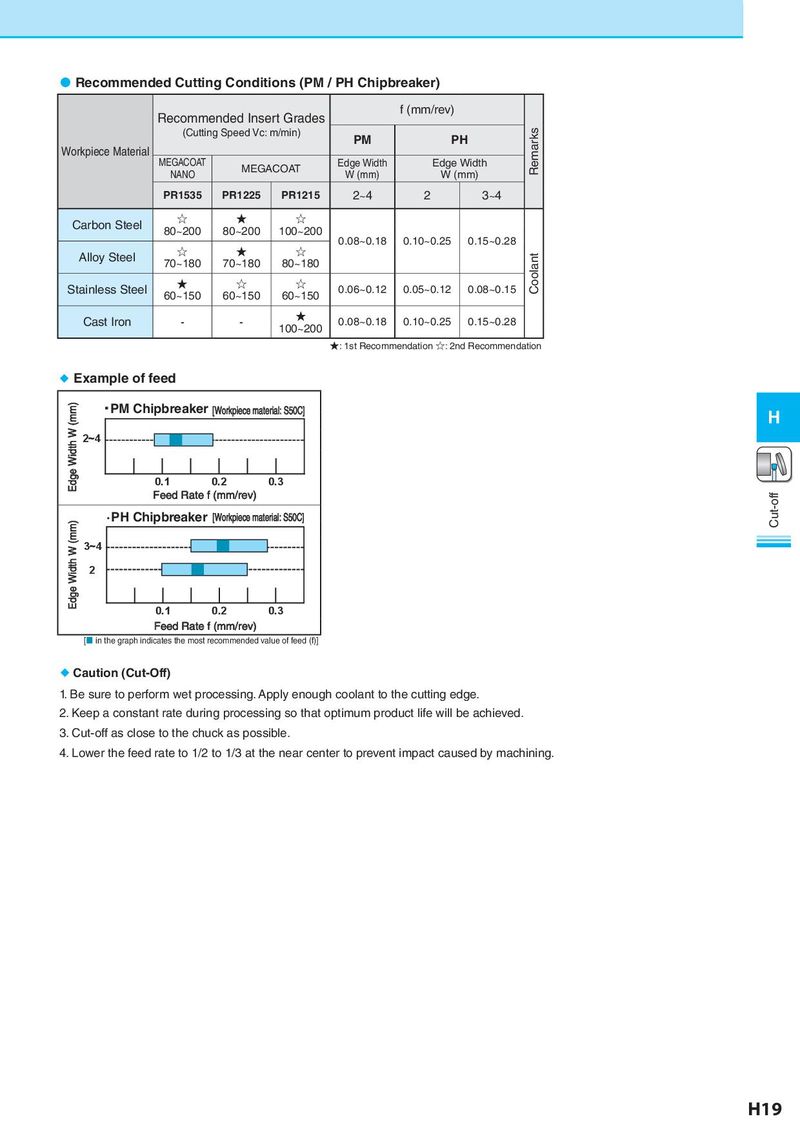

 Recommended Cutting Conditions (PM / PH Chipbreaker) Recommended Insert Grades f (mm/rev) (Cutting Speed Vc: m/min) PM PH Remarks Workpiece Material MEGACOAT MEGACOAT Edge Width Edge Width NANO W (mm) W (mm) PR1535 PR1225 PR1215 2~4 2 3~4 Carbon Steel ☆ ★ ☆ 80~200 80~200 100~200 0.08~0.18 0.10~0.25 0.15~0.28 Alloy Steel ☆ ★ ☆ Coolant 70~180 70~180 80~180 Stainless Steel ★ ☆ ☆ 0.06~0.12 0.05~0.12 0.08~0.15 60~150 60~150 60~150 Cast Iron - - ★ 0.08~0.18 0.10~0.25 0.15~0.28 100~200 ★: 1st Recommendation ☆: 2nd Recommendation  Example of feed Edge Width W (mm) 䞉PM Chipbreaker [Workpiece material: S50C] H a     Feed Rate f (mm/rev) Cut-off Edge Width W (mm) ∙ PH Chipbreaker [Workpiece material: S50C] a     Feed Rate f (mm/rev) [ in the graph indicates the most recommended value of feed (f)]  Caution (Cut-Off) 1. Be sure to perform wet processing. Apply enough coolant to the cutting edge. 2. Keep a constant rate during processing so that optimum product life will be achieved. 3. Cut-off as close to the chuck as possible. 4. Lower the feed rate to 1/2 to 1/3 at the near center to prevent impact caused by machining. H19
