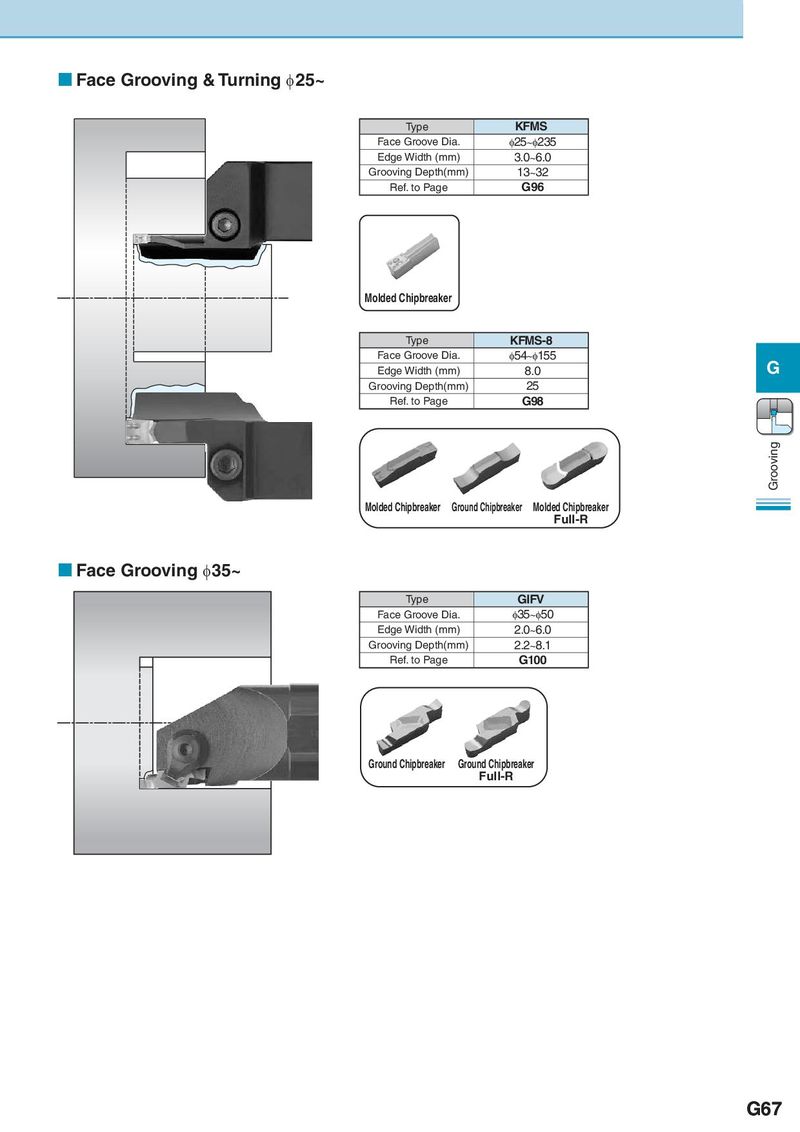

Основной каталог Kyocera 2016-2017 - страница 423

 Face Grooving & Turning φ25~ Type KFMS Face Groove Dia. φ25~φ235 Edge Width (mm) 3.0~6.0 Grooving Depth(mm) 13~32 Ref. to Page G96 Molded Chipbreaker Type KFMS-8 Face Groove Dia. φ54~φ155 Edge Width (mm) 8.0 G Grooving Depth(mm) 25 Ref. to Page G98 Grooving Molded Chipbreaker Ground Chipbreaker Molded Chipbreaker Full-R  Face Grooving φ35~ Type GIFV Face Groove Dia. φ35~φ50 Edge Width (mm) 2.0~6.0 Grooving Depth(mm) 2.2~8.1 Ref. to Page G100 Ground Chipbreaker Ground Chipbreaker Full-R G67
