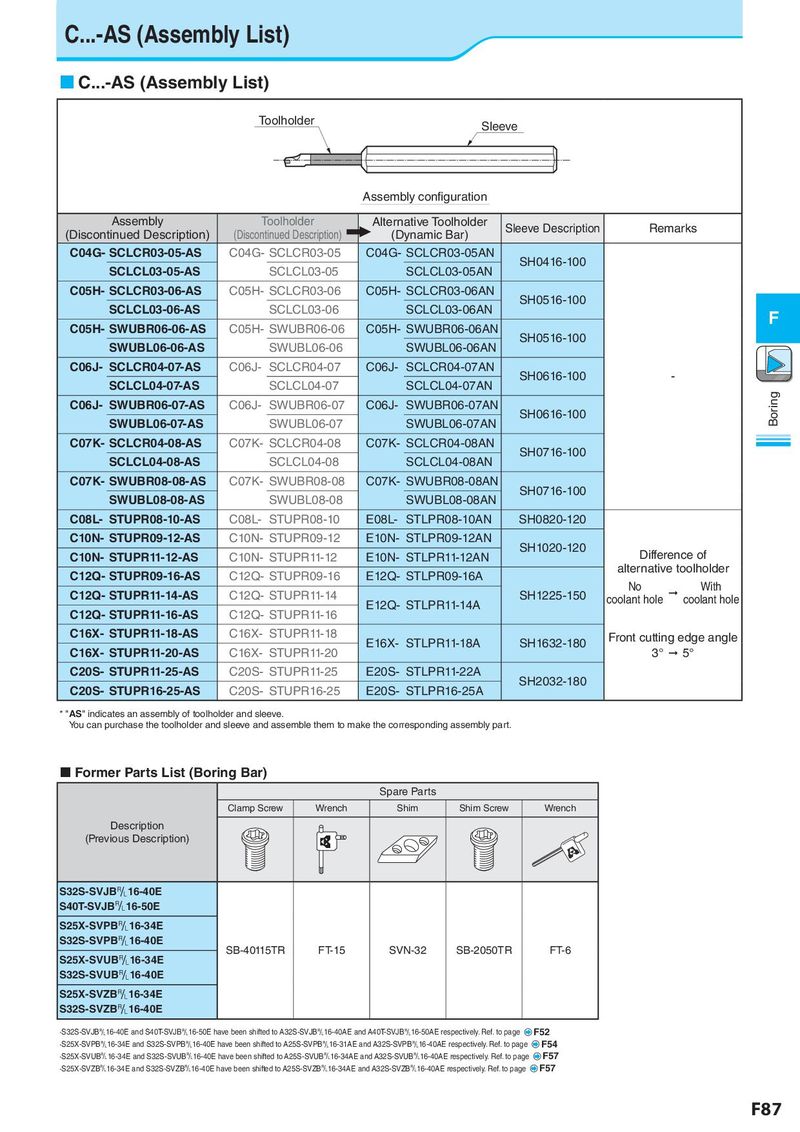

C...-AS (Assembly List)  C...-AS (Assembly List) Toolholder Sleeve Assembly configuration Assembly Toolholder Alternative Toolholder Sleeve Description Remarks (Discontinued Description) (Discontinued Description) (Dynamic Bar) C04G- SCLCR03-05-AS C04G- SCLCR03-05 C04G- SCLCR03-05AN SH0416-100 SCLCL03-05-AS SCLCL03-05 SCLCL03-05AN C05H- SCLCR03-06-AS C05H- SCLCR03-06 C05H- SCLCR03-06AN SH0516-100 SCLCL03-06-AS SCLCL03-06 SCLCL03-06AN F C05H- SWUBR06-06-AS C05H- SWUBR06-06 C05H- SWUBR06-06AN SH0516-100 SWUBL06-06-AS SWUBL06-06 SWUBL06-06AN C06J- SCLCR04-07-AS C06J- SCLCR04-07 C06J- SCLCR04-07AN SH0616-100 - SCLCL04-07-AS SCLCL04-07 SCLCL04-07AN Boring C06J- SWUBR06-07-AS C06J- SWUBR06-07 C06J- SWUBR06-07AN SH0616-100 SWUBL06-07-AS SWUBL06-07 SWUBL06-07AN C07K- SCLCR04-08-AS C07K- SCLCR04-08 C07K- SCLCR04-08AN SH0716-100 SCLCL04-08-AS SCLCL04-08 SCLCL04-08AN C07K- SWUBR08-08-AS C07K- SWUBR08-08 C07K- SWUBR08-08AN SH0716-100 SWUBL08-08-AS SWUBL08-08 SWUBL08-08AN C08L- STUPR08-10-AS C08L- STUPR08-10 E08L- STLPR08-10AN SH0820-120 C10N- STUPR09-12-AS C10N- STUPR09-12 E10N- STLPR09-12AN SH1020-120 C10N- STUPR11-12-AS C10N- STUPR11-12 E10N- STLPR11-12AN Difference of C12Q- STUPR09-16-AS C12Q- STUPR09-16 E12Q- STLPR09-16A alternative toolholder C12Q- STUPR11-14-AS C12Q- STUPR11-14 SH1225-150 No " With E12Q- STLPR11-14A coolant hole coolant hole C12Q- STUPR11-16-AS C12Q- STUPR11-16 C16X- STUPR11-18-AS C16X- STUPR11-18 E16X- STLPR11-18A SH1632-180 Front cutting edge angle C16X- STUPR11-20-AS C16X- STUPR11-20 3° " 5° C20S- STUPR11-25-AS C20S- STUPR11-25 E20S- STLPR11-22A SH2032-180 C20S- STUPR16-25-AS C20S- STUPR16-25 E20S- STLPR16-25A *"AS" indicates an assembly of toolholder and sleeve. You can purchase the toolholder and sleeve and assemble them to make the corresponding assembly part.  Former Parts List (Boring Bar) Spare Parts Clamp Screw Wrench Shim Shim Screw Wrench Description (Previous Description) S32S-SVJB&16-40E S40T-SVJB&16-50E S25X-SVPB&16-34E S32S-SVPB&16-40E SB-40115TR FT-15 SVN-32 SB-2050TR FT-6 S25X-SVUB&16-34E S32S-SVUB&16-40E S25X-SVZB&16-34E S32S-SVZB&16-40E ·S32S-SVJB&16-40E and S40T-SVJB&16-50E have been shifted to A32S-SVJB&16-40AE and A40T-SVJB&16-50AE respectively. Ref. to page F52 ·S25X-SVPB&16-34E and S32S-SVPB&16-40E have been shifted to A25S-SVPB&16-31AE and A32S-SVPB&16-40AE respectively. Ref. to page F54 ·S25X-SVUB&16-34E and S32S-SVUB&16-40E have been shifted to A25S-SVUB&16-34AE and A32S-SVUB&16-40AE respectively. Ref. to page F57 ·S25X-SVZB&16-34E and S32S-SVZB&16-40E have been shifted to A25S-SVZB&16-34AE and A32S-SVZB&16-40AE respectively. Ref. to page F57 F87
