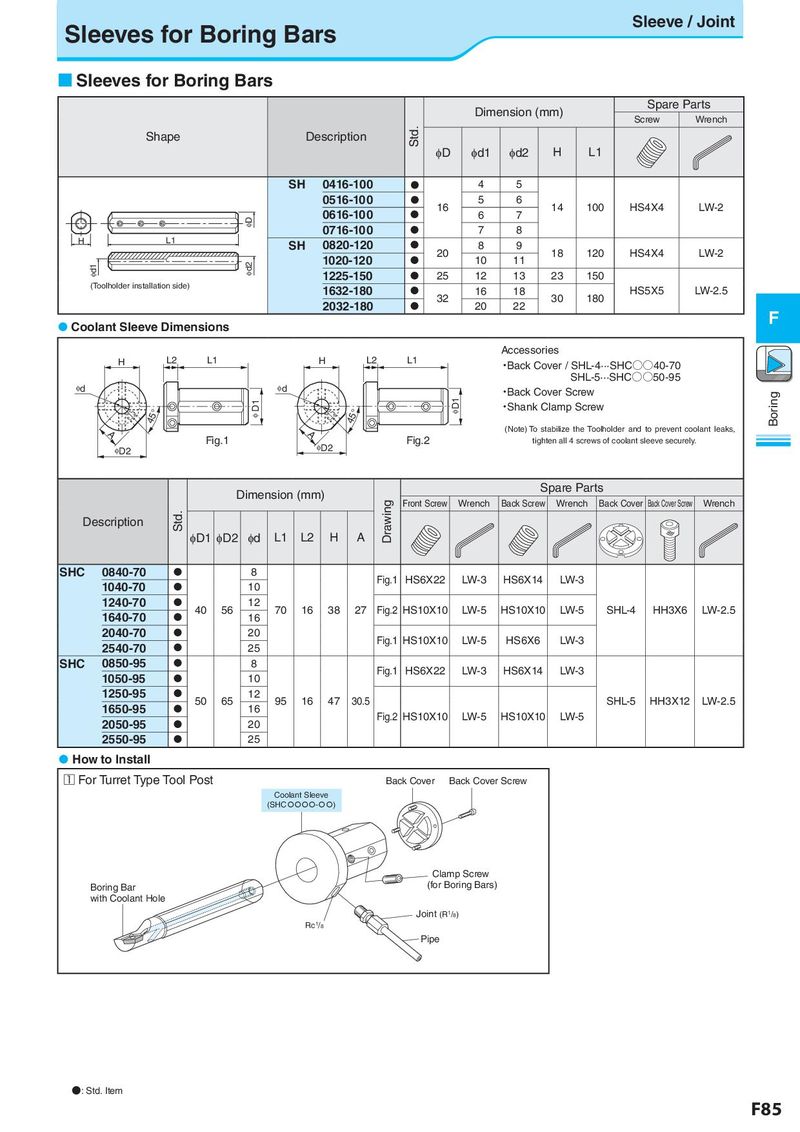

Sleeves for Boring Bars Sleeve / Joint  Sleeves for Boring Bars Dimension (mm) Spare Parts Screw Wrench Shape Description Std. φD φd1 φd2 H L1 SH 0416-100  4 5 0516-100  16 5 6 14 100 HS4X4 LW-2 φD 0616-100  6 7 0716-100  7 8 H L1 SH 0820-120  8 9 1020-120  20 10 11 18 120 HS4X4 LW-2 φd1 φd2 1225-150  25 12 13 23 150 (Toolholder installation side) 1632-180  16 18 HS5X5 LW-2.5 2032-180  32 20 22 30 180  Coolant Sleeve Dimensions F Accessories H L2 L1 H L2 L1 ・Back Cover / SHL-4···SHC○○40-70       SHL-5···SHC○○50-95 φd φd ・Back Cover Screw Boring 45° φ D1 45° φD1 ・Shank Clamp Screw A A (Note) To stabilize the Toolholder and to prevent coolant leaks, Fig.1 φD2 Fig.2 tighten all 4 screws of coolant sleeve securely. φD2 Dimension (mm) Spare Parts Drawing Front Screw Wrench Back Screw Wrench Back Cover Back Cover Screw Wrench Description Std. φD1 φD2 φd L1 L2 H A SHC 0840-70  8 Fig.1 HS6X22 LW-3 HS6X14 LW-3 1040-70  10 1240-70  40 56 12 70 16 38 27 Fig.2 HS10X10 LW-5 HS10X10 LW-5 SHL-4 HH3X6 LW-2.5 1640-70  16 2040-70  20 Fig.1 HS10X10 LW-5 HS6X6 LW-3 2540-70  25 SHC 0850-95  8 Fig.1 HS6X22 LW-3 HS6X14 LW-3 1050-95  10 1250-95  50 65 12 95 16 47 30.5 SHL-5 HH3X12 LW-2.5 1650-95  16 Fig.2 HS10X10 LW-5 HS10X10 LW-5 2050-95  20 2550-95  25  How to Install □１ For Turret Type Tool Post Back Cover Back Cover Screw Coolant Sleeve (SHC{{{{-{{) Clamp Screw Boring Bar (for Boring Bars) with Coolant Hole Joint (R1/8) Rc1/8 Pipe ●: Std. Item F85
