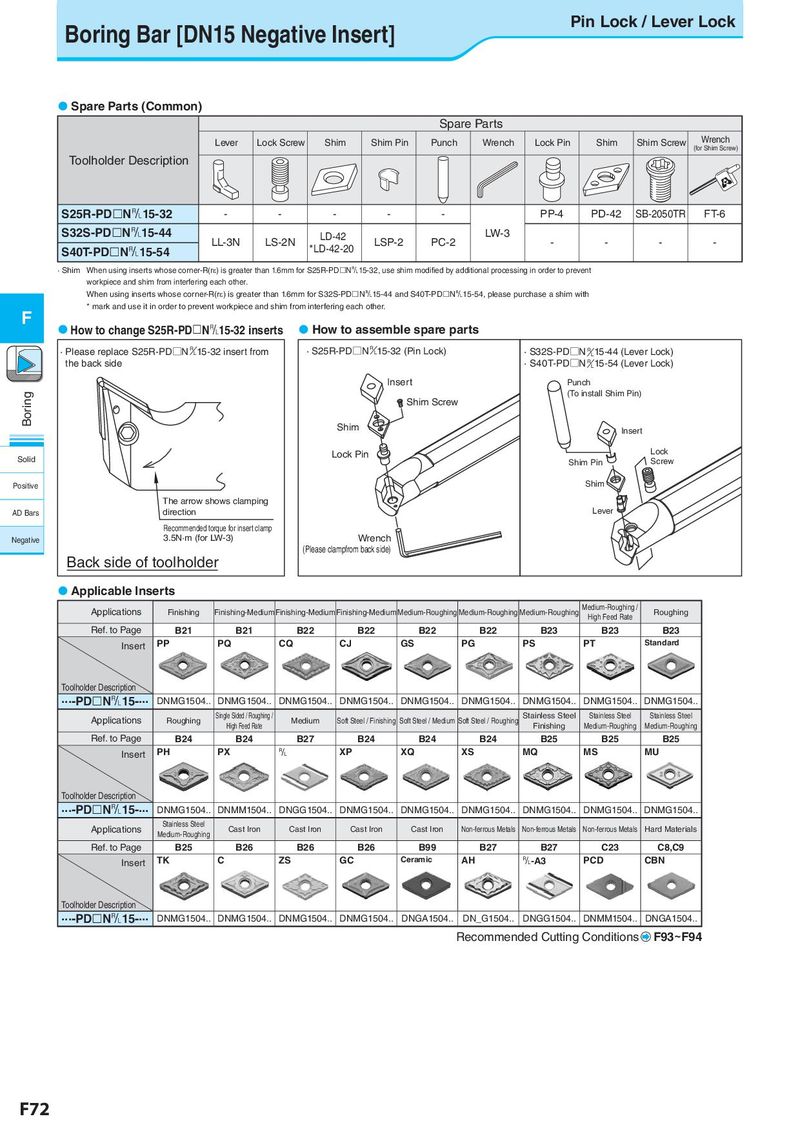

Boring Bar [DN15 Negative Insert] Pin Lock / Lever Lock  Spare Parts (Common) Spare Parts Lever Lock Screw Shim Shim Pin Punch Wrench Lock Pin Shim Shim Screw Wrench (for Shim Screw) Toolholder Description S25R-PDN&15-32 - - - - - PP-4 PD-42 SB-2050TR FT-6 S32S-PDN&15-44 LL-3N LS-2N LD-42 LSP-2 PC-2 LW-3 - - - - S40T-PDN&15-54 *LD-42-20 · Shim When using inserts whose corner-R(rε) is greater than 1.6mm for S25R-PDN&15-32, use shim modified by additional processing in order to prevent workpiece and shim from interfering each other. When using inserts whose corner-R(rε) is greater than 1.6mm for S32S-PDN&15-44 and S40T-PDN&15-54, please purchase a shim with * mark and use it in order to prevent workpiece and shim from interfering each other. F  How to change S25R-PDN&15-32 inserts  How to assemble spare parts · Please replace S25R-PD□N RL15-32 insert from · S25R-PD□N RL15-32 (Pin Lock) · S32S-PD□NRL15-44 (Lever Lock) the back side · S40T-PD□NRL15-54 (Lever Lock) Insert Punch Boring (To install Shim Pin) Shim Screw Shim Insert Lock Pin Lock Solid Shim Pin Screw Positive Shim The arrow shows clamping AD Bars direction Lever Recommended torque for insert clamp Negative 3.5N·m (for LW-3) Wrench (Please clampfrom back side) Back side of toolholder  Applicable Inserts Applications Finishing Finishing-MediumFinishing-MediumFinishing-Medium Medium-Roughing Medium-Roughing Medium-Roughing Medium-Roughing / Roughing High Feed Rate Ref. to Page B21 B21 B22 B22 B22 B22 B23 B23 B23 Insert PP PQ CQ CJ GS PG PS PT Standard Toolholder Description ...-PDN&15-... DNMG1504.. DNMG1504.. DNMG1504.. DNMG1504.. DNMG1504.. DNMG1504.. DNMG1504.. DNMG1504.. DNMG1504.. Applications Roughing Single Sided / Roughing / Medium Soft Steel / Finishing Soft Steel / Medium Soft Steel / Roughing Stainless Steel Stainless Steel Stainless Steel High Feed Rate Finishing Medium-Roughing Medium-Roughing Ref. to Page B24 B24 B27 B24 B24 B24 B25 B25 B25 Insert PH PX & XP XQ XS MQ MS MU Toolholder Description ...-PDN&15-... DNMG1504.. DNMM1504.. DNGG1504.. DNMG1504.. DNMG1504.. DNMG1504.. DNMG1504.. DNMG1504.. DNMG1504.. Applications Stainless Steel Cast Iron Cast Iron Cast Iron Cast Iron Non-ferrous Metals Non-ferrous Metals Non-ferrous Metals Hard Materials Medium-Roughing Ref. to Page B25 B26 B26 B26 B99 B27 B27 C23 C8,C9 Insert TK C ZS GC Ceramic AH &-A3 PCD CBN Toolholder Description ...-PDN&15-... DNMG1504.. DNMG1504.. DNMG1504.. DNMG1504.. DNGA1504.. DN_G1504.. DNGG1504.. DNMM1504.. DNGA1504.. Recommended Cutting Conditions F93~F94 F72
