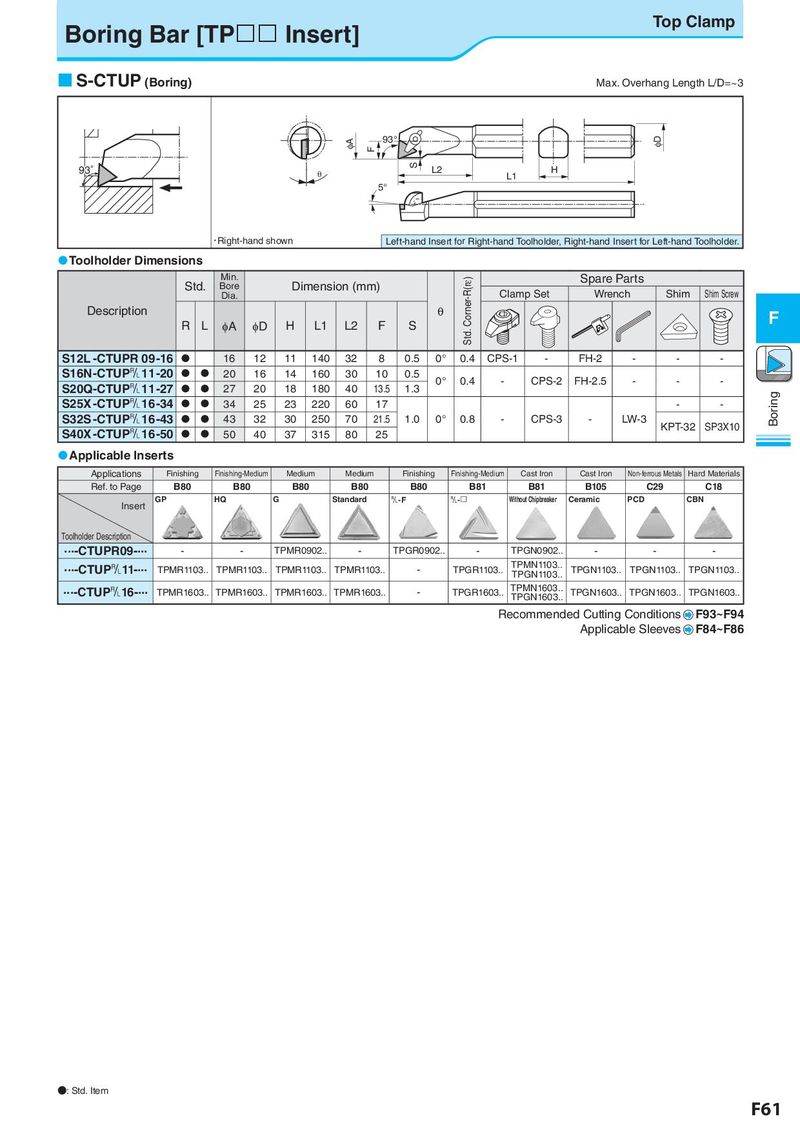

Boring Bar [TP Insert] Top Clamp  S-CTUP (Boring) Max. Overhang Length L/D=~3 φA 93° φD F 93° S L2 H θ L1 5° • Right-hand shown Left-hand Insert for Right-hand Toolholder, Right-hand Insert for Left-hand Toolholder. Toolholder Dimensions Min. Std. Corner-R(rε) Spare Parts Std. Bore Dimension (mm) Clamp Set Wrench Shim Shim Screw Dia. Description θ F R L φA φD H L1 L2 F S S12L -CTUPR 09-16  16 12 11 140 32 8 0.5 0° 0.4 CPS-1 - FH-2 - - - S16N -CTUP& 11 -20   20 16 14 160 30 10 0.5 0° 0.4 - CPS-2 FH-2.5 - - - S20Q-CTUP& 11 -27   27 20 18 180 40 13.5 1.3 Boring S25X -CTUP&16-34   34 25 23 220 60 17 - - S32S -CTUP&16-43   43 32 30 250 70 21.5 1.0 0° 0.8 - CPS-3 - LW-3 KPT-32 SP3X10 S40X -CTUP&16-50   50 40 37 315 80 25 Applicable Inserts Applications Finishing Finishing-Medium Medium Medium Finishing Finishing-Medium Cast Iron Cast Iron Non-ferrous Metals Hard Materials Ref. to Page B80 B80 B80 B80 B80 B81 B81 B105 C29 C18 Insert GP HQ G Standard &-F &- Without Chipbreaker Ceramic PCD CBN Toolholder Description ...-CTUPR09-... - - TPMR0902.. - TPGR0902.. - TPGN0902.. - - - ...-CTUP&11-... TPMR1103.. TPMR1103.. TPMR1103.. TPMR1103.. - TPGR1103.. TPMN1103.. TPGN1103.. TPGN1103.. TPGN1103.. TPGN1103.. ...-CTUP&16-... TPMR1603.. TPMR1603.. TPMR1603.. TPMR1603.. - TPGR1603.. TPMN1603.. TPGN1603.. TPGN1603.. TPGN1603.. TPGN1603.. Recommended Cutting Conditions F93~F94 Applicable Sleeves F84~F86 ●: Std. Item F61
