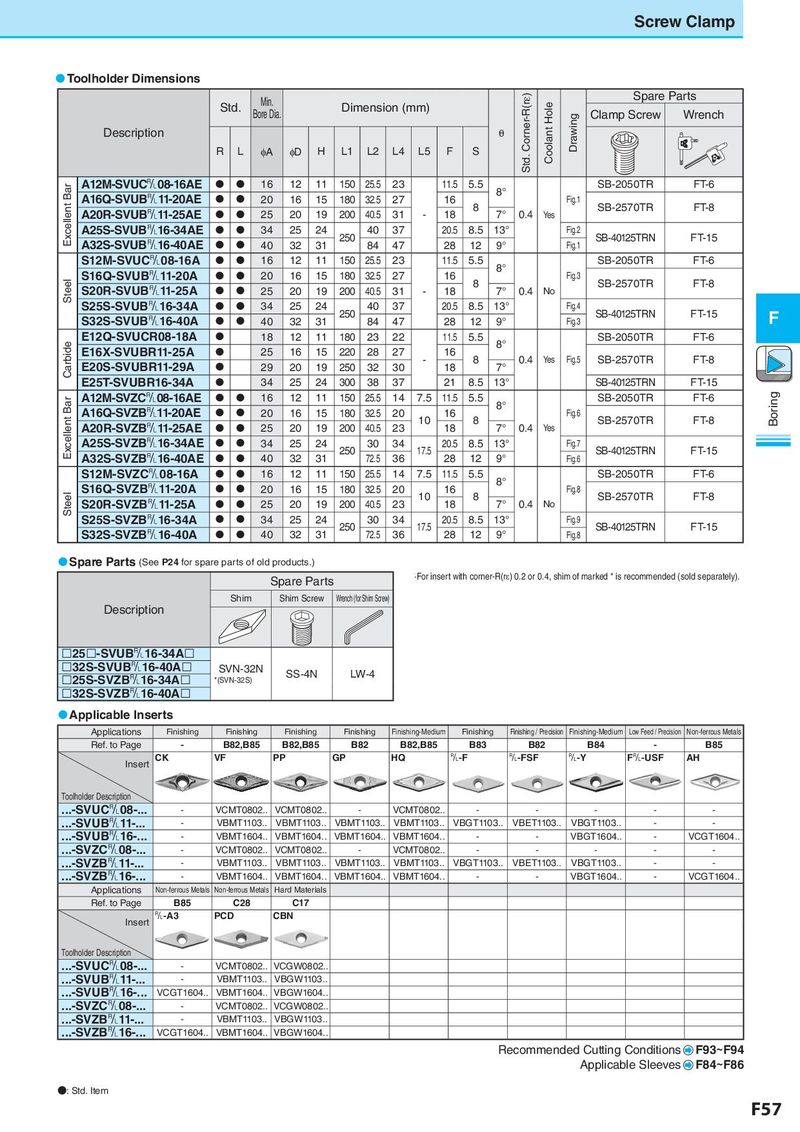

Основной каталог Kyocera 2016-2017 - страница 319

Screw Clamp  Toolholder Dimensions Min. Std. Corner-R(rε) Coolant Hole Spare Parts Std. Bore Dia. Dimension (mm) Drawing Clamp Screw Wrench Description θ R L φA φD H L1 L2 L4 L5 F S Excellent Bar A12M-SVUC&08-16AE   16 12 11 150 25.5 23 11.5 5.5 8° SB-2050TR FT-6 A16Q-SVUB&11-20AE   20 16 15 180 32.5 27 16 8 Fig.1 SB-2570TR FT-8 A20R-SVUB&11-25AE   25 20 19 200 40.5 31 - 18 7° 0.4 Yes A25S-SVUB&16-34AE   34 25 24 250 40 37 20.5 8.5 13° Fig.2 SB-40125TRN FT-15 A32S-SVUB&16-40AE   40 32 31 84 47 28 12 9° Fig.1 S12M-SVUC&08-16A   16 12 11 150 25.5 23 11.5 5.5 8° SB-2050TR FT-6 Steel S16Q-SVUB&11-20A   20 16 15 180 32.5 27 16 8 Fig.3 SB-2570TR FT-8 S20R-SVUB&11-25A   25 20 19 200 40.5 31 - 18 7° 0.4 No S25S-SVUB&16-34A   34 25 24 250 40 37 20.5 8.5 13° Fig.4 SB-40125TRN FT-15 S32S-SVUB&16-40A   40 32 31 84 47 28 12 9° Fig.3 F Carbide E12Q-SVUCR08-18A  18 12 11 180 23 22 11.5 5.5 8° SB-2050TR FT-6 E16X-SVUBR11-25A  25 16 15 220 28 27 - 16 8 0.4 Yes Fig.5 SB-2570TR FT-8 E20S-SVUBR11-29A  29 20 19 250 32 30 18 7° E25T-SVUBR16-34A  34 25 24 300 38 37 21 8.5 13° SB-40125TRN FT-15 Excellent Bar A12M-SVZC&08-16AE   16 12 11 150 25.5 14 7.5 11.5 5.5 8° SB-2050TR FT-6 Boring A16Q-SVZB&11-20AE   20 16 15 180 32.5 20 10 16 8 Fig.6 SB-2570TR FT-8 A20R-SVZB&11-25AE   25 20 19 200 40.5 23 18 7° 0.4 Yes A25S-SVZB&16-34AE   34 25 24 250 30 34 17.5 20.5 8.5 13° Fig.7 SB-40125TRN FT-15 A32S-SVZB&16-40AE   40 32 31 72.5 36 28 12 9° Fig.6 S12M-SVZC&08-16A   16 12 11 150 25.5 14 7.5 11.5 5.5 8° SB-2050TR FT-6 Steel S16Q-SVZB&11-20A   20 16 15 180 32.5 20 10 16 8 Fig.8 SB-2570TR FT-8 S20R-SVZB&11-25A   25 20 19 200 40.5 23 18 7° 0.4 No S25S-SVZB&16-34A   34 25 24 250 30 34 17.5 20.5 8.5 13° Fig.9 SB-40125TRN FT-15 S32S-SVZB&16-40A   40 32 31 72.5 36 28 12 9° Fig.8  Spare Parts (See P24 for spare parts of old products.) Spare Parts ·For insert with corner-R(re) 0.2 or 0.4, shim of marked * is recommended (sold separately). Shim Shim Screw Wrench (for Shim Screw) Description 25-SVUB&16-34A 32S-SVUB&16-40A SVN-32N SS-4N LW-4 25S-SVZB&16-34A *(SVN-32S) 32S-SVZB&16-40A Applicable Inserts Applications Finishing Finishing Finishing Finishing Finishing-Medium Finishing Finishing / Precision Finishing-Medium Low Feed / Precision Non-ferrous Metals Ref. to Page - B82,B85 B82,B85 B82 B82,B85 B83 B82 B84 - B85 Insert CK VF PP GP HQ &-F &-FSF &-Y F&-USF AH Toolholder Description ...-SVUC&08-... - VCMT0802.. VCMT0802.. - VCMT0802.. - - - - - ...-SVUB&11-... - VBMT1103.. VBMT1103.. VBMT1103.. VBMT1103.. VBGT1103.. VBET1103.. VBGT1103.. - - ...-SVUB&16-... - VBMT1604.. VBMT1604.. VBMT1604.. VBMT1604.. - - VBGT1604.. - VCGT1604.. ...-SVZC&08-... - VCMT0802.. VCMT0802.. - VCMT0802.. - - - - - ...-SVZB&11-... - VBMT1103.. VBMT1103.. VBMT1103.. VBMT1103.. VBGT1103.. VBET1103.. VBGT1103.. - - ...-SVZB&16-... - VBMT1604.. VBMT1604.. VBMT1604.. VBMT1604.. - - VBGT1604.. - VCGT1604.. Applications Non-ferrous Metals Non-ferrous Metals Hard Materials Ref. to Page B85 C28 C17 Insert &-A3 PCD CBN Toolholder Description ...-SVUC&08-... - VCMT0802.. VCGW0802.. ...-SVUB&11-... - VBMT1103.. VBGW1103.. ...-SVUB&16-... VCGT1604.. VBMT1604.. VBGW1604.. ...-SVZC&08-... - VCMT0802.. VCGW0802.. ...-SVZB&11-... - VBMT1103.. VBGW1103.. ...-SVZB&16-... VCGT1604.. VBMT1604.. VBGW1604.. Recommended Cutting Conditions F93~F94 Applicable Sleeves F84~F86 ●: Std. Item F57
