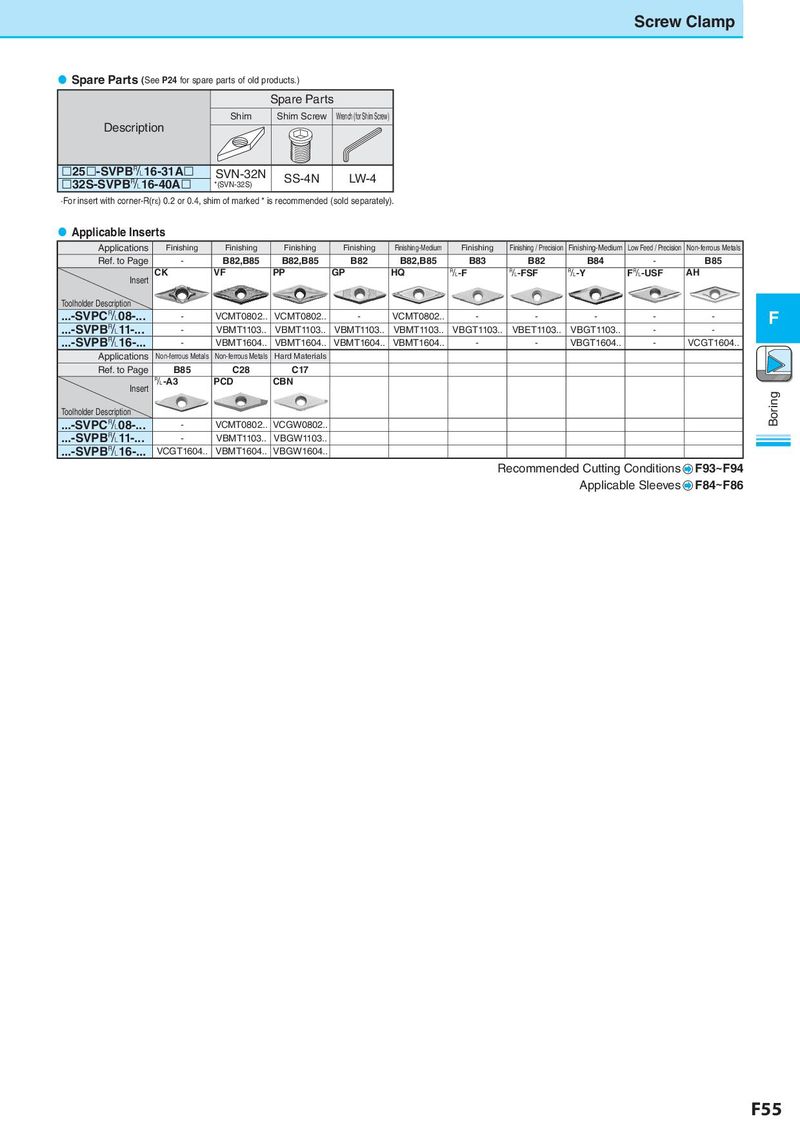

Screw Clamp  Spare Parts (See P24 for spare parts of old products.) Spare Parts Shim Shim Screw Wrench (for Shim Screw) Description 25-SVPB&16-31A SVN-32N SS-4N LW-4 32S-SVPB&16-40A *(SVN-32S) ·For insert with corner-R(re) 0.2 or 0.4, shim of marked * is recommended (sold separately).  Applicable Inserts Applications Finishing Finishing Finishing Finishing Finishing-Medium Finishing Finishing / Precision Finishing-Medium Low Feed / Precision Non-ferrous Metals Ref. to Page - B82,B85 B82,B85 B82 B82,B85 B83 B82 B84 - B85 Insert CK VF PP GP HQ &-F &-FSF &-Y F&-USF AH Toolholder Description ...-SVPC&08-... - VCMT0802.. VCMT0802.. - VCMT0802.. - - - - - F ...-SVPB&11-... - VBMT1103.. VBMT1103.. VBMT1103.. VBMT1103.. VBGT1103.. VBET1103.. VBGT1103.. - - ...-SVPB&16-... - VBMT1604.. VBMT1604.. VBMT1604.. VBMT1604.. - - VBGT1604.. - VCGT1604.. Applications Non-ferrous Metals Non-ferrous Metals Hard Materials Ref. to Page B85 C28 C17 Insert &-A3 PCD CBN Toolholder Description Boring ...-SVPC&08-... - VCMT0802.. VCGW0802.. ...-SVPB&11-... - VBMT1103.. VBGW1103.. ...-SVPB&16-... VCGT1604.. VBMT1604.. VBGW1604..  Recommended Cutting Conditions F93~F94 Applicable Sleeves F84~F86 F55
