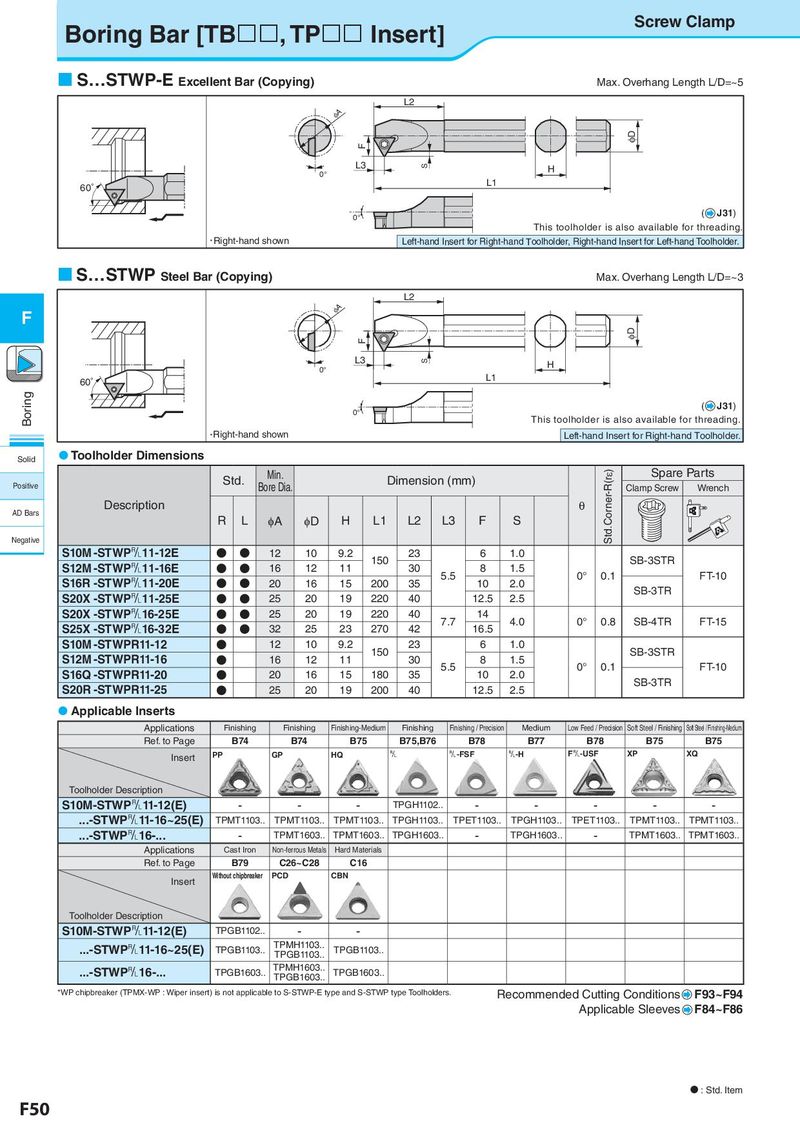

Boring Bar [TB, TP Insert] Screw Clamp  S…STWP-E Excellent Bar (Copying) Max. Overhang Length L/D=~5 L2 φA φD F L3 S H 0° 60° L1 0° ( J31) This toolholder is also available for threading. • Right-hand shown Left-hand Insert for Right-hand Toolholder, Right-hand Insert for Left-hand Toolholder.  S…STWP Steel Bar (Copying) Max. Overhang Length L/D=~3 L2 F φA F φD L3 S H 0° 60° L1 Boring 0° ( J31) This toolholder is also available for threading. • Right-hand shown Left-hand Insert for Right-hand Toolholder. Solid  Toolholder Dimensions Std. Min. Dimension (mm) Std.Corner-R(rε) Spare Parts Positive Bore Dia. Clamp Screw Wrench AD Bars Description θ R L φA φD H L1 L2 L3 F S Negative S10M -STWP&11-12E ● ● 12 10 9.2 150 23 6 1.0 SB-3STR S12M -STWP&11-16E ● ● 16 12 11 30 5.5 8 1.5 0° 0.1 FT-10 S16R -STWP&11-20E ● ● 20 16 15 200 35 10 2.0 SB-3TR S20X -STWP&11-25E ● ● 25 20 19 220 40 12.5 2.5 S20X -STWP&16-25E ● ● 25 20 19 220 40 7.7 14 4.0 0° 0.8 SB-4TR FT-15 S25X -STWP&16-32E ● ● 32 25 23 270 42 16.5 S10M -STWPR11-12 ● 12 10 9.2 150 23 6 1.0 SB-3STR S12M -STWPR11-16 ● 16 12 11 30 5.5 8 1.5 0° 0.1 FT-10 S16Q -STWPR11-20 ● 20 16 15 180 35 10 2.0 SB-3TR S20R -STWPR11-25 ● 25 20 19 200 40 12.5 2.5  Applicable Inserts Applications Finishing Finishing Finishing-Medium Finishing Finishing / Precision Medium Low Feed / Precision Soft Steel / Finishing Soft Steel / Finishing-Medium Ref. to Page B74 B74 B75 B75,B76 B78 B77 B78 B75 B75 Insert PP GP HQ & &-FSF &-H F&-USF XP XQ Toolholder Description S10M-STWP&11-12(E) - - - TPGH1102.. - - - - - ...-STWP&11-16~25(E) TPMT1103.. TPMT1103.. TPMT1103.. TPGH1103.. TPET1103.. TPGH1103.. TPET1103.. TPMT1103.. TPMT1103.. ...-STWP&16-... - TPMT1603.. TPMT1603.. TPGH1603.. - TPGH1603.. - TPMT1603.. TPMT1603.. Applications Cast Iron Non-ferrous Metals Hard Materials Ref. to Page B79 C26~C28 C16 Insert Without chipbreaker PCD CBN Toolholder Description S10M-STWP&11-12(E) TPGB1102.. - - ...-STWP&11-16~25(E) TPGB1103.. TPMH1103.. TPGB1103.. TPGB1103.. ...-STWP&16-... TPGB1603.. TPMH1603.. TPGB1603.. TPGB1603.. *WP chipbreaker (TPMX-WP : Wiper insert) is not applicable to S-STWP-E type and S-STWP type Toolholders. Recommended Cutting Conditions F93~F94 Applicable Sleeves F84~F86 N : Std. Item F50
