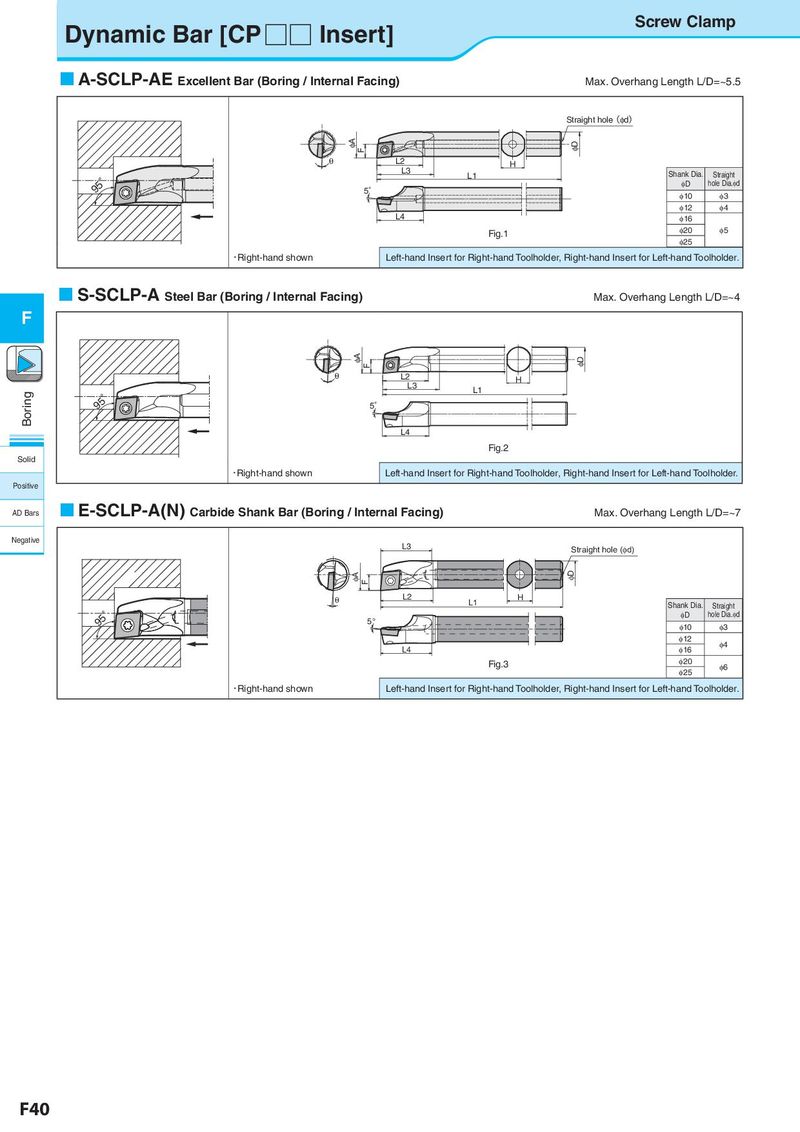

Dynamic Bar [CP □□ Insert] Screw Clamp  A-SCLP-AE Excellent Bar (Boring / Internal Facing) Max. Overhang Length L/D=~5.5 Straight hole（φd） φA φD F θ L2 H L3 L1 Shank Dia. Straight 95ﾟ 5° φD hole Dia.φd φ10 φ3 φ12 φ4 L4 φ16 Fig.1 φ20 φ5 φ25 • Right-hand shown Left-hand Insert for Right-hand Toolholder, Right-hand Insert for Left-hand Toolholder.  S-SCLP-A Steel Bar (Boring / Internal Facing) Max. Overhang Length L/D=~4 F φA φD F θ L2 H L3 L1 Boring 95ﾟ 5° L4 Fig.2 Solid • Right-hand shown Left-hand Insert for Right-hand Toolholder, Right-hand Insert for Left-hand Toolholder. Positive AD Bars  E-SCLP-A(N) Carbide Shank Bar (Boring / Internal Facing) Max. Overhang Length L/D=~7 Negative L3 Straight hole (φd) φA F φD θ L2 L1 H Shank Dia. Straight 95ﾟ 5° φD hole Dia.φd φ10 φ3 φ12 φ4 L4 φ16 Fig.3 φ20 φ6 φ25 • Right-hand shown Left-hand Insert for Right-hand Toolholder, Right-hand Insert for Left-hand Toolholder. F40
