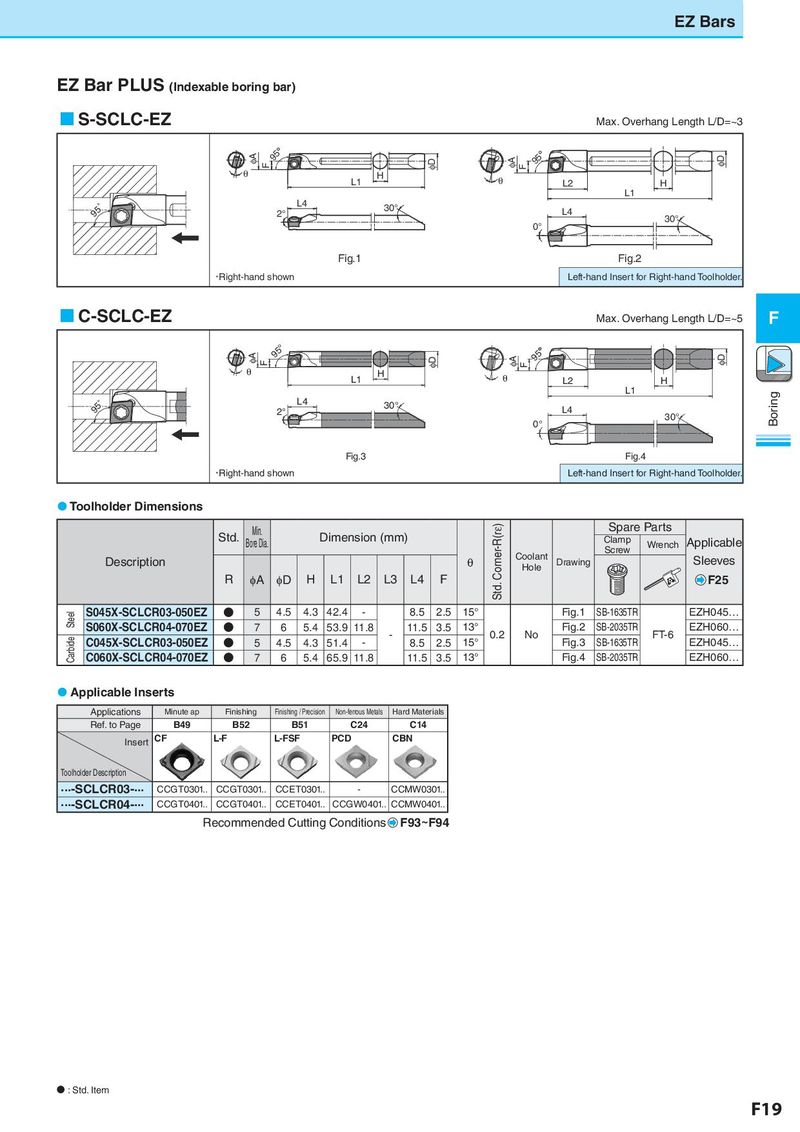

EZ Bars EZ Bar PLUS (Indexable boring bar)  S-SCLC-EZ Max. Overhang Length L/D=~3 φA F 95° φD φA 95° φD F θ L1 H θ L2 H L1 935ﾟ L4 30° L4 2° 30° 0° Fig.1 Fig.2 • Right-hand shown Left-hand Insert for Right-hand Toolholder.  C-SCLC-EZ Max. Overhang Length L/D=~5 F φA 95° φD φA 95° φD F F θ L1 H θ H L2 L1 Boring 935ﾟ L4 30° L4 2° 30° 0° Fig.3 Fig.4 • Right-hand shown Left-hand Insert for Right-hand Toolholder.  Toolholder Dimensions Std. Min. Dimension (mm) Std. Corner-R(rε) Spare Parts Bore Dia. Clamp Wrench Applicable Coolant Screw Description θ Hole Drawing Sleeves R φA φD H L1 L2 L3 L4 F F25 Steel S045X-SCLCR03-050EZ ● 5 4.5 4.3 42.4 - 8.5 2.5 15° Fig.1 SB-1635TR EZH045… S060X-SCLCR04-070EZ ● 7 6 5.4 53.9 11.8 - 11.5 3.5 13° 0.2 No Fig.2 SB-2035TR FT-6 EZH060… Carbide C045X-SCLCR03-050EZ ● 5 4.5 4.3 51.4 - 8.5 2.5 15° Fig.3 SB-1635TR EZH045… C060X-SCLCR04-070EZ ● 7 6 5.4 65.9 11.8 11.5 3.5 13° Fig.4 SB-2035TR EZH060…  Applicable Inserts Applications Minute ap Finishing Finishing / Precision Non-ferrous Metals Hard Materials Ref. to Page B49 B52 B51 C24 C14 Insert CF L-F L-FSF PCD CBN Toolholder Description ...-SCLCR03-... CCGT0301.. CCGT0301.. CCET0301.. - CCMW0301.. ...-SCLCR04-... CCGT0401.. CCGT0401.. CCET0401.. CCGW0401.. CCMW0401.. Recommended Cutting Conditions F93~F94 N : Std. Item F19
