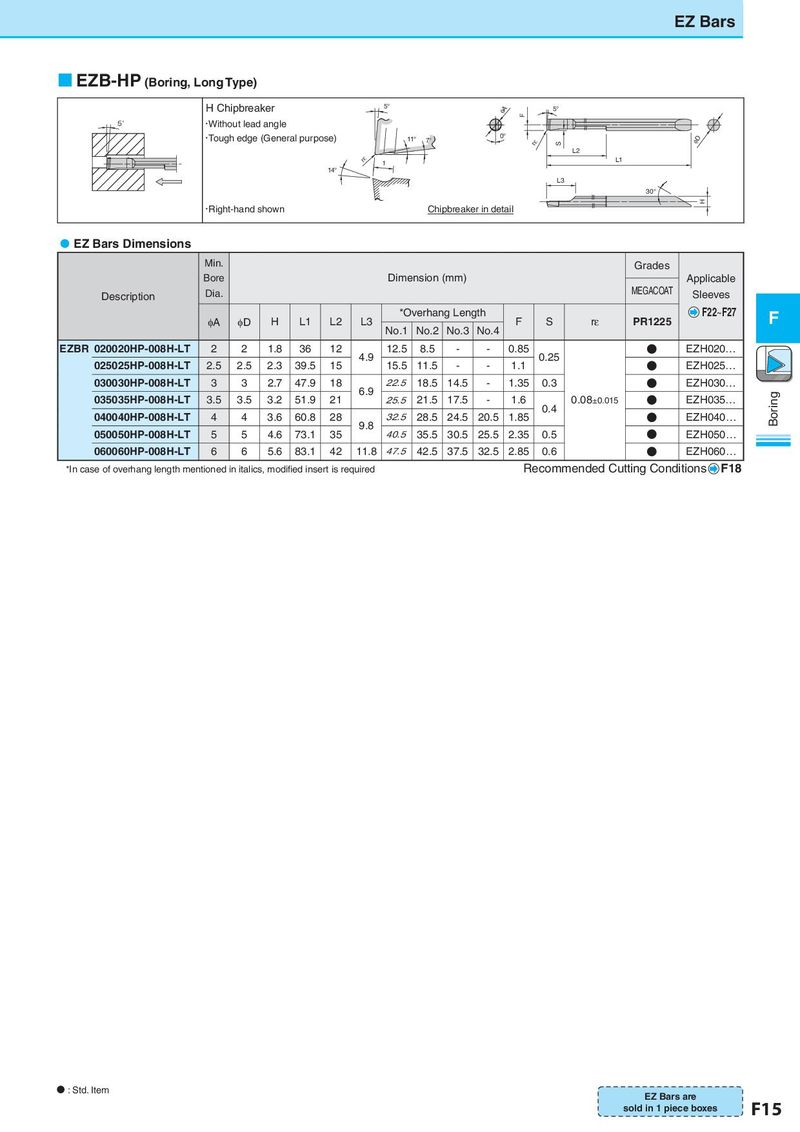

EZ Bars  EZB-HP (Boring, Long Type) H Chipbreaker 5° φA 5° F 55°° • Without lead angle • Tough edge (General purpose) 11° 7° 0° φD rε S L2 rε 1 L1 14° L3 30° H • Right-hand shown Chipbreaker in detail  EZ Bars Dimensions Min. Grades Bore Dimension (mm) Applicable Description Dia. MEGACOAT Sleeves φA φD H L1 L2 L3 *Overhang Length F S rε PR1225 F22~F27 F No.1 No.2 No.3 No.4 EZBR 020020HP-008H-LT 2 2 1.8 36 12 4.9 12.5 8.5 - - 0.85 0.25 ● EZH020… 025025HP-008H-LT 2.5 2.5 2.3 39.5 15 15.5 11.5 - - 1.1 ● EZH025… 030030HP-008H-LT 3 3 2.7 47.9 18 6.9 22.5 18.5 14.5 - 1.35 0.3 ● EZH030… 035035HP-008H-LT 3.5 3.5 3.2 51.9 21 25.5 21.5 17.5 - 1.6 0.4 0.08±0.015 ● EZH035… Boring 040040HP-008H-LT 4 4 3.6 60.8 28 9.8 32.5 28.5 24.5 20.5 1.85 ● EZH040… 050050HP-008H-LT 5 5 4.6 73.1 35 40.5 35.5 30.5 25.5 2.35 0.5 ● EZH050… 060060HP-008H-LT 6 6 5.6 83.1 42 11.8 47.5 42.5 37.5 32.5 2.85 0.6 ● EZH060… *In case of overhang length mentioned in italics, modified insert is required Recommended Cutting Conditions F18 N : Std. Item EZ Bars are sold in 1 piece boxes F15
