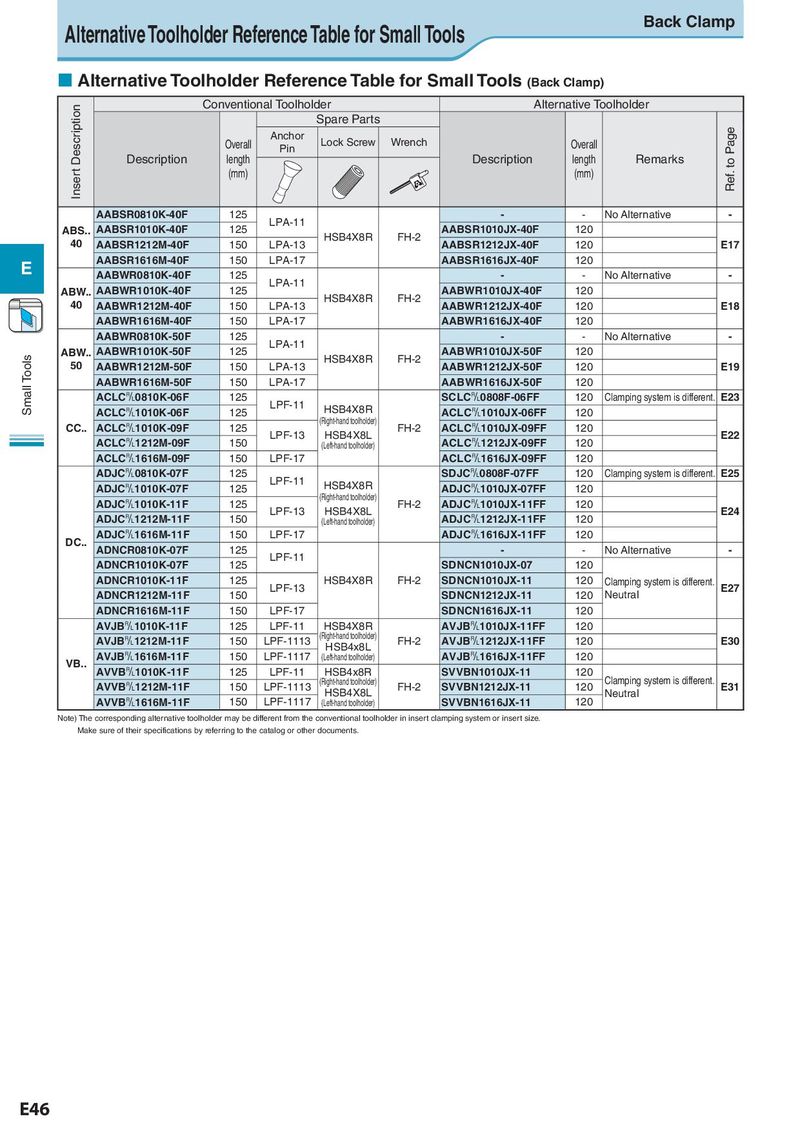

Alternative Toolholder Reference Table for Small Tools Back Clamp ¢ Alternative Toolholder Reference Table for Small Tools (Back Clamp) Insert Description Conventional Toolholder Alternative Toolholder Spare Parts Overall Anchor Lock Screw Wrench Overall Ref. to Page Pin Description length Description length Remarks (mm) (mm) AABSR0810K-40F 125 LPA-11 - - No Alternative - ABS.. AABSR1010K-40F 125 HSB4X8R FH-2 AABSR1010JX-40F 120 40 AABSR1212M-40F 150 LPA-13 AABSR1212JX-40F 120 E17 E AABSR1616M-40F 150 LPA-17 AABSR1616JX-40F 120 AABWR0810K-40F 125 LPA-11 - - No Alternative - ABW.. AABWR1010K-40F 125 HSB4X8R FH-2 AABWR1010JX-40F 120 40 AABWR1212M-40F 150 LPA-13 AABWR1212JX-40F 120 E18 AABWR1616M-40F 150 LPA-17 AABWR1616JX-40F 120 AABWR0810K-50F 125 LPA-11 - - No Alternative - Small Tools ABW.. AABWR1010K-50F 125 HSB4X8R FH-2 AABWR1010JX-50F 120 50 AABWR1212M-50F 150 LPA-13 AABWR1212JX-50F 120 E19 AABWR1616M-50F 150 LPA-17 AABWR1616JX-50F 120 ACLC&0810K-06F 125 LPF-11 SCLC&0808F-06FF 120 Clamping system is different. E23 ACLC&1010K-06F 125 HSB4X8R ACLC&1010JX-06FF 120 CC.. ACLC&1010K-09F 125 (Right-hand toolholder) FH-2 ACLC&1010JX-09FF 120 ACLC&1212M-09F 150 LPF-13 HSB4X8L ACLC&1212JX-09FF 120 E22 (Left-hand toolholder) ACLC&1616M-09F 150 LPF-17 ACLC&1616JX-09FF 120 ADJC&0810K-07F 125 LPF-11 SDJC&0808F-07FF 120 Clamping system is different. E25 ADJC&1010K-07F 125 HSB4X8R ADJC&1010JX-07FF 120 ADJC&1010K-11F 125 (Right-hand toolholder) FH-2 ADJC&1010JX-11FF 120 ADJC&1212M-11F 150 LPF-13 HSB4X8L ADJC&1212JX-11FF 120 E24 (Left-hand toolholder) DC.. ADJC&1616M-11F 150 LPF-17 ADJC&1616JX-11FF 120 ADNCR0810K-07F 125 LPF-11 - - No Alternative - ADNCR1010K-07F 125 SDNCN1010JX-07 120 ADNCR1010K-11F 125 LPF-13 HSB4X8R FH-2 SDNCN1010JX-11 120 Clamping system is different. E27 ADNCR1212M-11F 150 SDNCN1212JX-11 120 Neutral ADNCR1616M-11F 150 LPF-17 SDNCN1616JX-11 120 AVJB&1010K-11F 125 LPF-11 HSB4X8R AVJB&1010JX-11FF 120 AVJB&1212M-11F 150 LPF-1113 (Right-hand toolholder) FH-2 AVJB&1212JX-11FF 120 E30 AVJB&1616M-11F 150 LPF-1117 HSB4x8L AVJB&1616JX-11FF 120 VB.. (Left-hand toolholder) AVVB&1010K-11F 125 LPF-11 HSB4x8R SVVBN1010JX-11 120 Clamping system is different. AVVB&1212M-11F 150 LPF-1113 (Right-hand toolholder) FH-2 SVVBN1212JX-11 120 E31 AVVB&1616M-11F 150 LPF-1117 HSB4X8L SVVBN1616JX-11 120 Neutral (Left-hand toolholder) Note) The corresponding alternative toolholder may be different from the conventional toolholder in insert clamping system or insert size. Make sure of their specifications by referring to the catalog or other documents. E46
