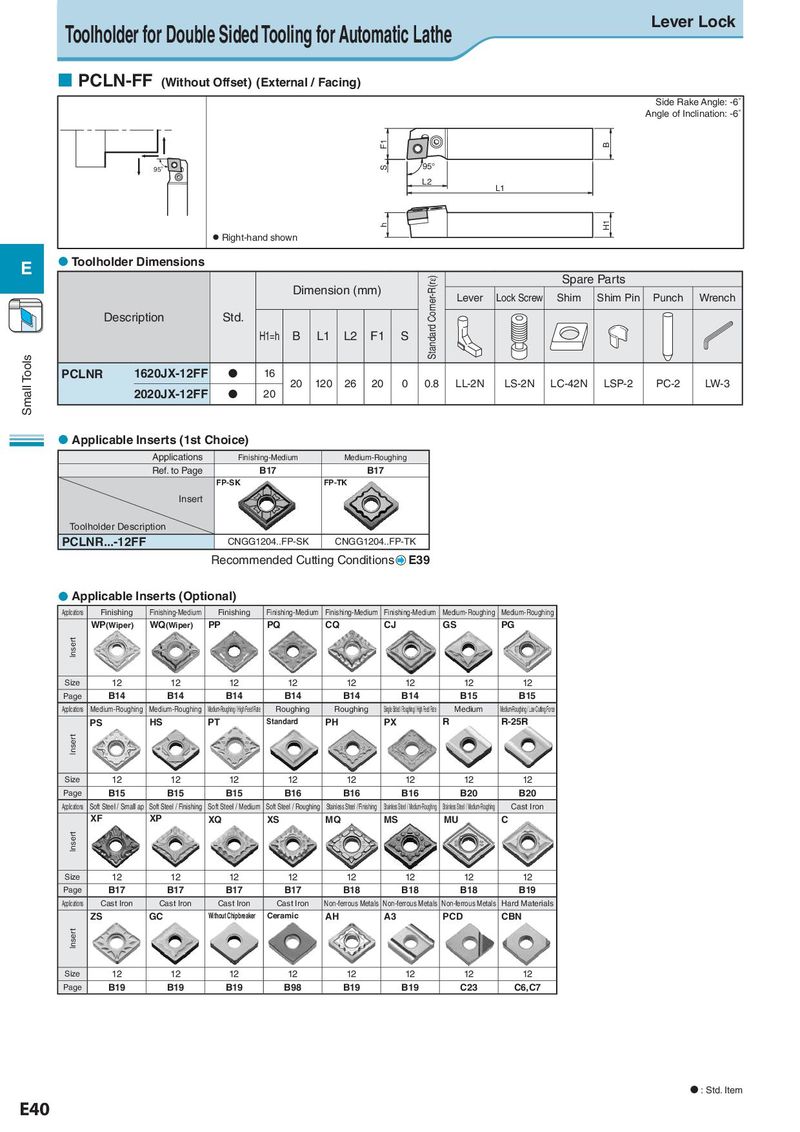

Toolholder for Double Sided Tooling for Automatic Lathe Lever Lock ¢ PCLN-FF PCLNR1620JX-12FF (WPCitLhNoRu1t6O20fJfsXe-1t2) F(FExternal / Facing) Side Rake Angle: -6˚ Angle of Inclination: -6˚ F1 F1 B B S 95° S 95° 95° 95° L2 L1 L2 L1 h H1 h H1 l Right-hand shown E l Toolholder Dimensions Standard Corner-R(rε) Spare Parts Dimension (mm) Lever Lock Screw Shim Shim Pin Punch Wrench Description Std. H1=h B L1 L2 F1 S Small Tools PCLNR 1620JX-12FF N 16 20 120 26 20 0 0.8 LL-2N LS-2N LC-42N LSP-2 PC-2 LW-3 2020JX-12FF N 20 l Applicable Inserts (1st Choice) Applications Finishing-Medium Medium-Roughing Ref. to Page B17 B17 FP-SK FP-TK Insert Toolholder Description PCLNR...-12FF CNGG1204..FP-SK CNGG1204..FP-TK Recommended Cutting Conditions E39 l Applicable Inserts (Optional) Applications Finishing Finishing-Medium Finishing Finishing-Medium Finishing-Medium Finishing-Medium Medium-Roughing Medium-Roughing WP(Wiper) WQ(Wiper) PP PQ CQ CJ GS PG Insert Size 12 12 12 12 12 12 12 12 Page B14 B14 B14 B14 B14 B14 B15 B15 Applications Medium-Roughing Medium-Roughing Medium-Roughing / High Feed Rate Roughing Roughing Single Sided / Roughing / High Feed Rate Medium Medium-Roughing / Low Cuting Force PS HS PT Standard PH PX R R-25R Insert Size 12 12 12 12 12 12 12 12 Page B15 B15 B15 B16 B16 B16 B20 B20 Applications Soft Steel / Small ap Soft Steel / Finishing Soft Steel / Medium Soft Steel / Roughing Stainless Steel / Finishing Stainless Steel / Medium-Roughing Stainless Steel / Medium-Roughing Cast Iron XF XP XQ XS MQ MS MU C Insert Size 12 12 12 12 12 12 12 12 Page B17 B17 B17 B17 B18 B18 B18 B19 Applications Cast Iron Cast Iron Cast Iron Cast Iron Non-ferrous Metals Non-ferrous Metals Non-ferrous Metals Hard Materials ZS GC Without Chipbreaker Ceramic AH A3 PCD CBN Insert Size 12 12 12 12 12 12 12 12 Page B19 B19 B19 B98 B19 B19 C23 C6,C7 N : Std. Item E40
