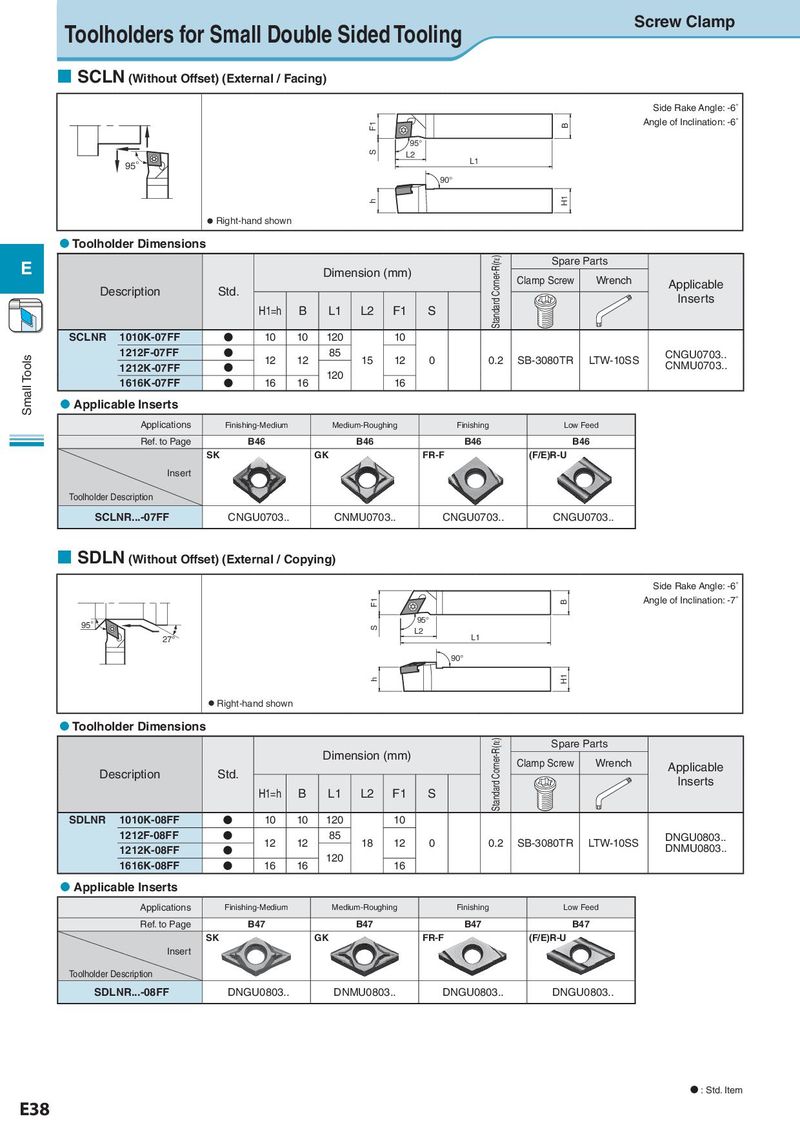

Toolholders for Small Double Sided Tooling Screw Clamp ¢ SCLN (Without Offset) (External / Facing) Side Rake Angle: -6˚ F1 B Angle of Inclination: -6˚ 95° S L2 95° L1 90° h H1 l Right-hand shown l Toolholder Dimensions E Standard Corner-R(rε) Spare Parts Dimension (mm) Clamp Screw Wrench Description Std. Applicable Inserts H1=h B L1 L2 F1 S SCLNR 1010K-07FF N 10 10 120 10 Small Tools 1212F-07FF N 12 12 85 15 12 0 0.2 SB-3080TR LTW-10SS CNGU0703.. 1212K-07FF N CNMU0703.. 1616K-07FF N 16 16 120 16 l Applicable Inserts Applications Finishing-Medium Medium-Roughing Finishing Low Feed Ref. to Page B46 B46 B46 B46 SK GK FR-F (F/E)R-U Insert Toolholder Description SCLNR...-07FF CNGU0703.. CNMU0703.. CNGU0703.. CNGU0703.. ¢ SDLN (Without Offset) (External / Copying) Side Rake Angle: -6˚ F1 B Angle of Inclination: -7˚ 95° 95° S L2 27° L1 90° h H1 l Right-hand shown l Toolholder Dimensions Standard Corner-R(rε) Spare Parts Dimension (mm) Clamp Screw Wrench Description Std. Applicable Inserts H1=h B L1 L2 F1 S SDLNR 1010K-08FF N 10 10 120 10 1212F-08FF N 12 12 85 18 12 0 0.2 SB-3080TR LTW-10SS DNGU0803.. 1212K-08FF N DNMU0803.. 1616K-08FF N 16 16 120 16 l Applicable Inserts Applications Finishing-Medium Medium-Roughing Finishing Low Feed Ref. to Page B47 B47 B47 B47 SK GK FR-F (F/E)R-U Insert Toolholder Description SDLNR...-08FF DNGU0803.. DNMU0803.. DNGU0803.. DNGU0803.. N : Std. Item E38
