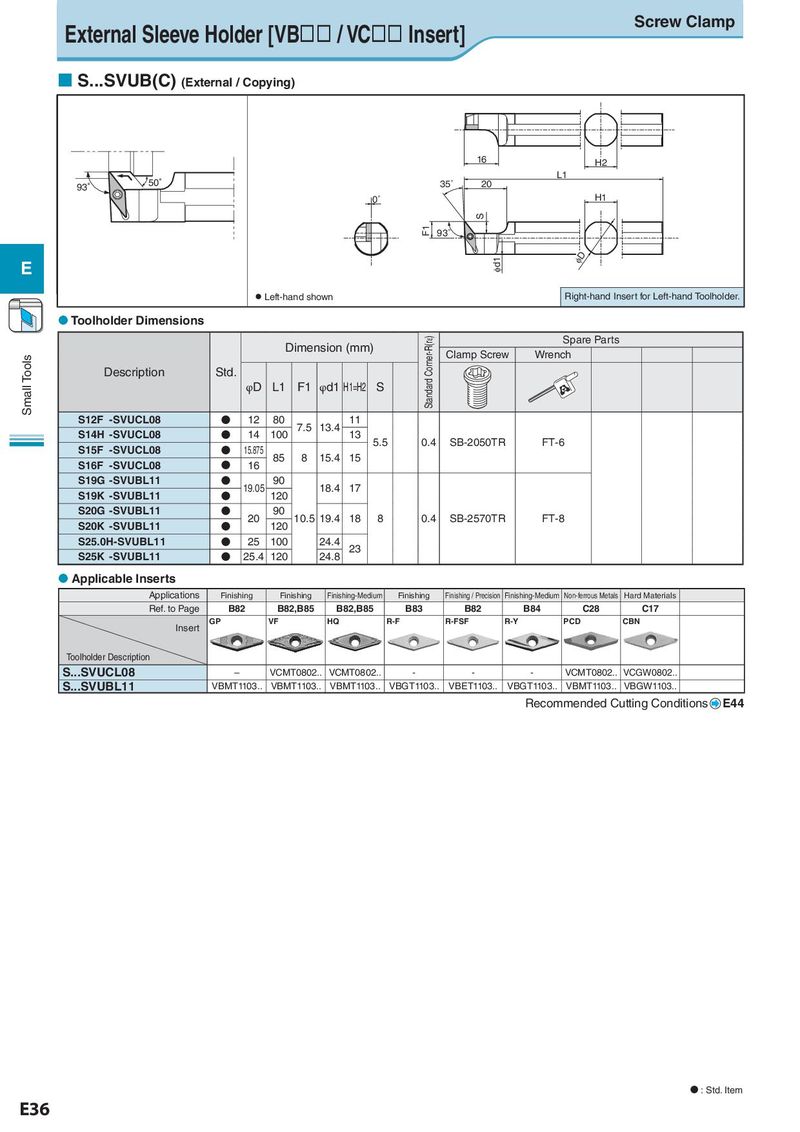

External Sleeve Holder [VB££ / VC££ Insert] Screw Clamp ¢ S...SVUB(C) (External / Copying) 16 H2 50゜ L1 93゜ 35˚ 20 0˚ H1 S F1 93˚ E Id1 ID l Left-hand shown Right-hand Insert for Left-hand Toolholder. l Toolholder Dimensions Dimension (mm) Standard Corner-R(rε) Spare Parts Small Tools Clamp Screw Wrench Description Std. φD L1 F1 φd1 H1=H2 S S12F -SVUCL08 N 12 80 7.5 13.4 11 S14H -SVUCL08 N 14 100 13 5.5 0.4 SB-2050TR FT-6 S15F -SVUCL08 N 15.875 85 8 15.4 15 S16F -SVUCL08 N 16 S19G -SVUBL11 N 19.05 90 18.4 17 S19K -SVUBL11 N 120 S20G -SVUBL11 N 20 90 10.5 19.4 18 8 0.4 SB-2570TR FT-8 S20K -SVUBL11 N 120 S25.0H-SVUBL11 N 25 100 24.4 23 S25K -SVUBL11 N 25.4 120 24.8 l Applicable Inserts Applications Finishing Finishing Finishing-Medium Finishing Finishing / Precision Finishing-Medium Non-ferrous Metals Hard Materials Ref. to Page B82 B82,B85 B82,B85 B83 B82 B84 C28 C17 Insert GP VF HQ R-F R-FSF R-Y PCD CBN Toolholder Description S...SVUCL08 – VCMT0802.. VCMT0802.. - - - VCMT0802.. VCGW0802.. S...SVUBL11 VBMT1103.. VBMT1103.. VBMT1103.. VBGT1103.. VBET1103.. VBGT1103.. VBMT1103.. VBGW1103.. Recommended Cutting Conditions E44 N : Std. Item E36
