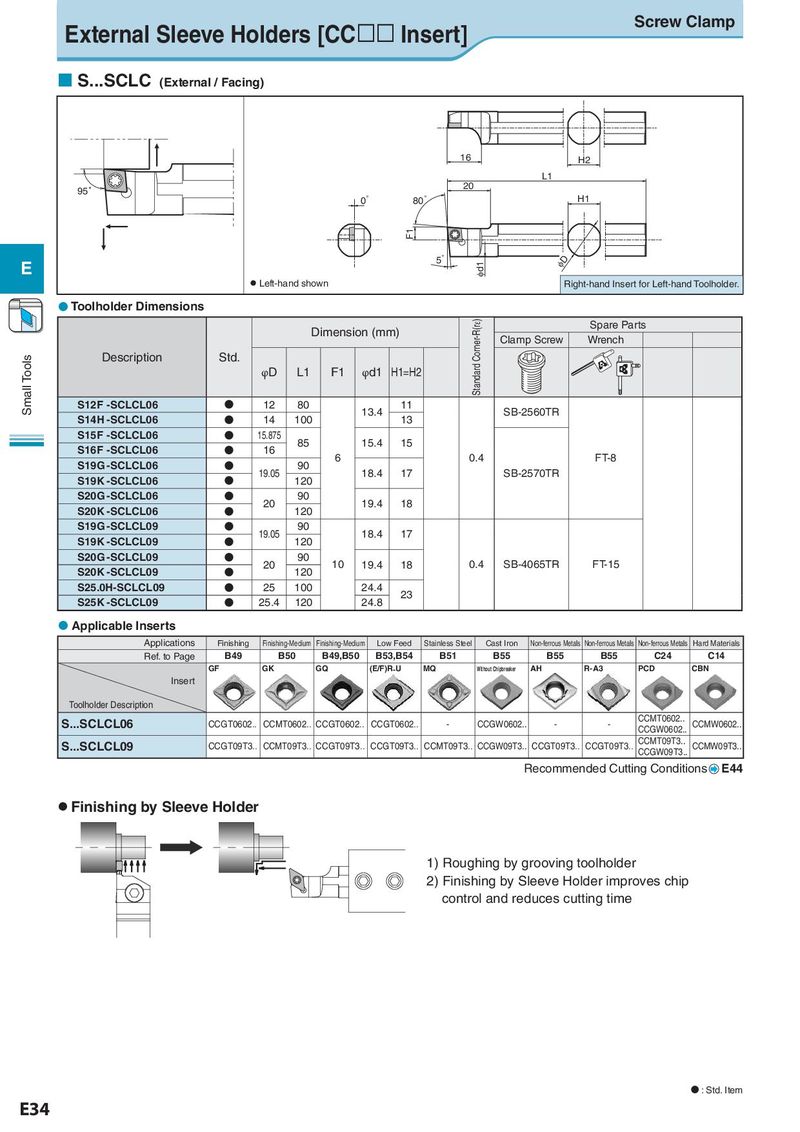

External Sleeve Holders [CC££ Insert] Screw Clamp ¢ S...SCLC (External / Facing) 16 H2 L1 95゜ 20 0˚ 80˚ H1 F1 E 5˚ Id1 ID l Left-hand shown Right-hand Insert for Left-hand Toolholder. l Toolholder Dimensions Dimension (mm) Standard Corner-R(rε) Spare Parts Clamp Screw Wrench Small Tools Description Std. φD L1 F1 φd1 H1=H2 S12F -SCLCL06 N 12 80 13.4 11 SB-2560TR S14H -SCLCL06 N 14 100 13 S15F -SCLCL06 N 15.875 85 15.4 15 S16F -SCLCL06 N 16 6 0.4 FT-8 S19G -SCLCL06 N 19.05 90 18.4 17 SB-2570TR S19K -SCLCL06 N 120 S20G -SCLCL06 N 20 90 19.4 18 S20K -SCLCL06 N 120 S19G -SCLCL09 N 19.05 90 18.4 17 S19K -SCLCL09 N 120 S20G -SCLCL09 N 20 90 10 19.4 18 0.4 SB-4065TR FT-15 S20K -SCLCL09 N 120 S25.0H-SCLCL09 N 25 100 24.4 23 S25K -SCLCL09 N 25.4 120 24.8 l Applicable Inserts Applications Finishing Finishing-Medium Finishing-Medium Low Feed Stainless Steel Cast Iron Non-ferrous Metals Non-ferrous Metals Non-ferrous Metals Hard Materials Ref. to Page B49 B50 B49,B50 B53,B54 B51 B55 B55 B55 C24 C14 GF GK GQ (E/F)R-U MQ Without Chipbreaker AH R-A3 PCD CBN Insert Toolholder Description S...SCLCL06 CCGT0602.. CCMT0602.. CCGT0602.. CCGT0602.. - CCGW0602.. - - CCMT0602.. CCMW0602.. CCGW0602.. S...SCLCL09 CCGT09T3.. CCMT09T3.. CCGT09T3.. CCGT09T3.. CCMT09T3.. CCGW09T3.. CCGT09T3.. CCGT09T3.. CCMT09T3.. CCMW09T3.. CCGW09T3.. Recommended Cutting Conditions E44 l Finishing by Sleeve Holder 1) Roughing by grooving toolholder 2)Finishing by Sleeve Holder improves chip control and reduces cutting time N : Std. Item E34
