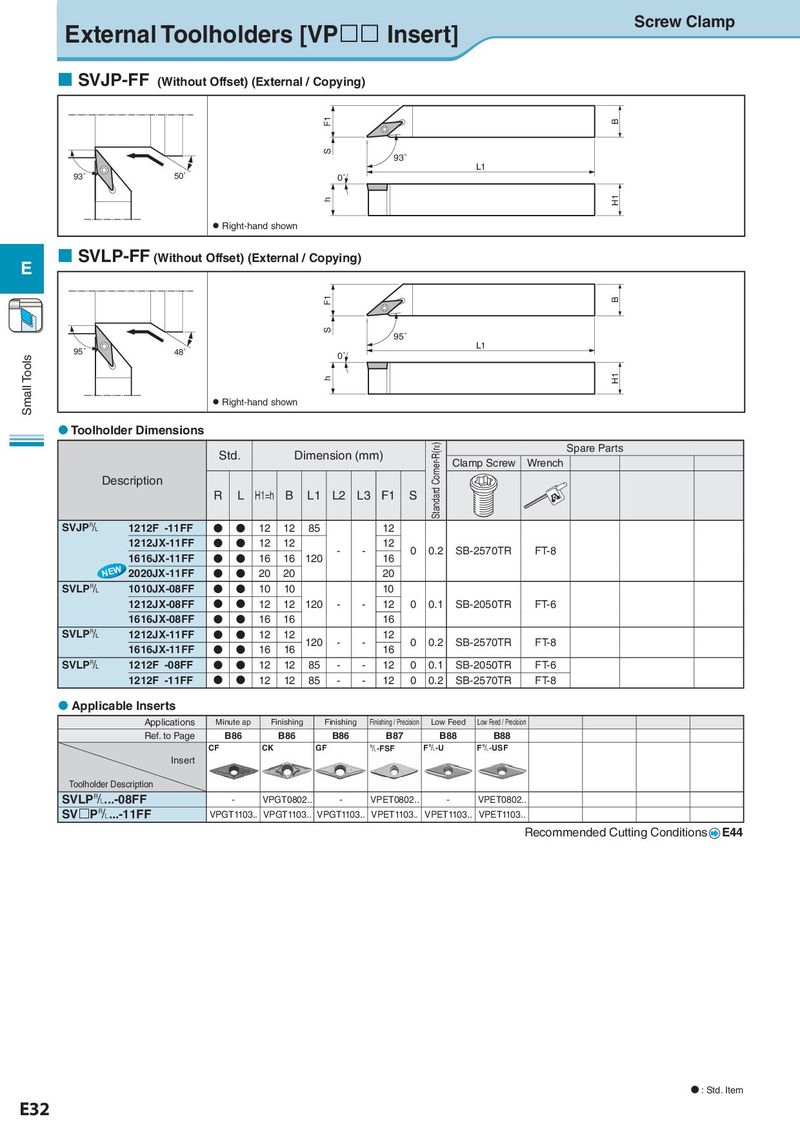

External Toolholders [VP££ Insert] Screw Clamp ¢ SVJP-FF (Without Offset) (External / Copying) F1 B S 93˚ L1 93˚ 50˚ 0˚ h H1 l Right-hand shown E ¢ SVLP-FF (Without Offset) (External / Copying) F1 B S 95˚ 95˚ 48˚ L1 Small Tools 0˚ h H1 l Right-hand shown l Toolholder Dimensions Std. Dimension (mm) Standard Corner-R(rε) Spare Parts Clamp Screw Wrench Description R L H1=h B L1 L2 L3 F1 S SVJP& 1212F -11FF N N 12 12 85 12 1212JX-11FF N N 12 12 - - 12 0 0.2 SB-2570TR FT-8 1616JX-11FF N N 16 16 120 16 NEW 2020JX-11FF N N 20 20 20 SVLP& 1010JX-08FF N N 10 10 10 1212JX-08FF N N 12 12 120 - - 12 0 0.1 SB-2050TR FT-6 1616JX-08FF N N 16 16 16 SVLP& 1212JX-11FF N N 12 12 120 - - 12 0 0.2 SB-2570TR FT-8 1616JX-11FF N N 16 16 16 SVLP& 1212F -08FF N N 12 12 85 - - 12 0 0.1 SB-2050TR FT-6 1212F -11FF N N 12 12 85 - - 12 0 0.2 SB-2570TR FT-8 l Applicable Inserts Applications Minute ap Finishing Finishing Finishing / Precision Low Feed Low Feed / Precision Ref. to Page B86 B86 B86 B87 B88 B88 CF CK GF &-FSF F&-U F&-USF Insert Toolholder Description SVLP&...-08FF - VPGT0802.. - VPET0802.. - VPET0802.. SV£P&...-11FF VPGT1103.. VPGT1103.. VPGT1103.. VPET1103.. VPET1103.. VPET1103.. Recommended Cutting Conditions E44 N : Std. Item E32
