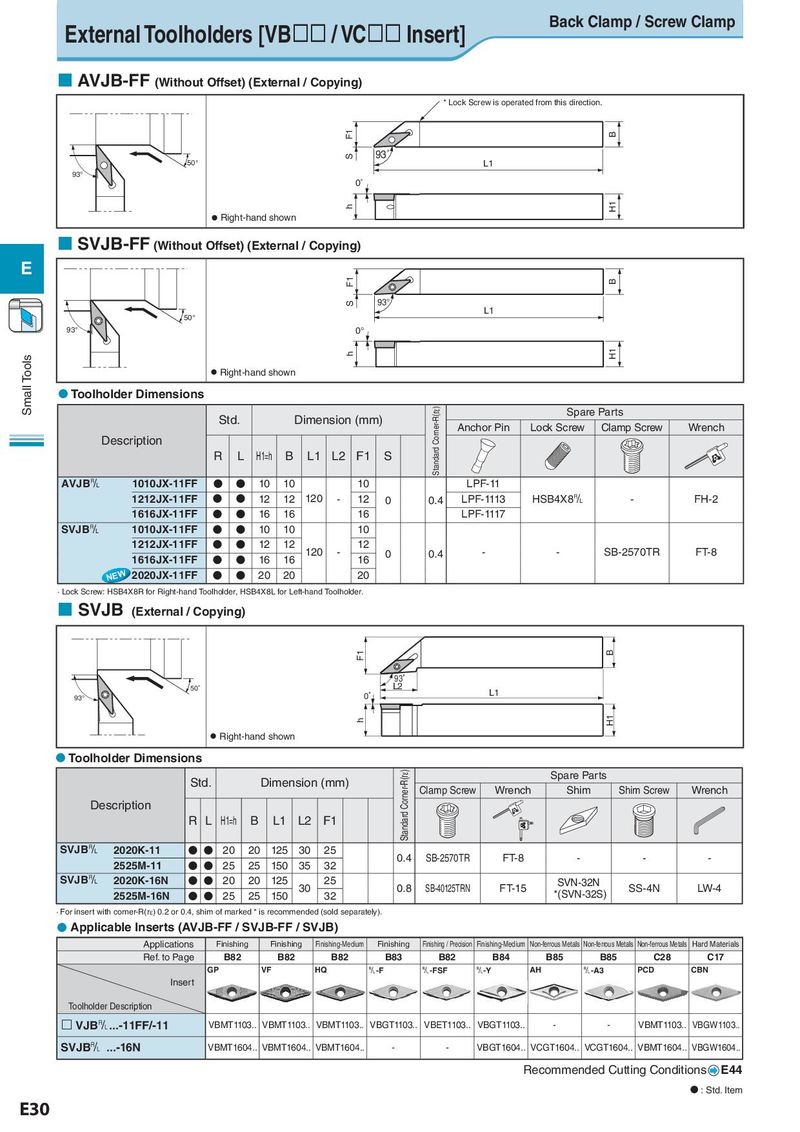

External Toolholders [VB££ / VC££ Insert] Back Clamp / Screw Clamp ¢ AVJB-FF (Without Offset) (External / Copying) * Lock Screw is operated from this direction. F1 B S 93˚ 50° L1 93° 0˚ h H1 l Right-hand shown ¢ SVJB-FF (Without Offset) (External / Copying) E F1 B S 93° 50° L1 93° 0° Tools h H1 l Right-hand shown Small l Toolholder Dimensions Std. Dimension (mm) Corner-R(rε) Spare Parts Anchor Pin Lock Screw Clamp Screw Wrench Description Standard R L H1=h B L1 L2 F1 S AVJB& 1010JX-11FF N N 10 10 10 LPF-11 1212JX-11FF N N 12 12 120 - 12 0 0.4 LPF-1113 HSB4X8& - FH-2 1616JX-11FF N N 16 16 16 LPF-1117 SVJB& 1010JX-11FF N N 10 10 10 1212JX-11FF N N 12 12 120 - 12 0 0.4 - - SB-2570TR FT-8 1616JX-11FF N N 16 16 16 NEW 2020JX-11FF N N 20 20 20 · Lock Screw: HSB4X8R for Right-hand Toolholder, HSB4X8L for Left-hand Toolholder. ¢ SVJB (External / Copying) F1 B 93゜ L2 50° L1 93° 0゜ h H1 l Right-hand shown l Toolholder Dimensions Std. Dimension (mm) Standard Corner-R(rε) Spare Parts Clamp Screw Wrench Shim Shim Screw Wrench Description R L H1=h B L1 L2 F1 SVJB& 2020K-11 N N 20 20 125 30 25 0.4 SB-2570TR FT-8 - - - 2525M-11 N N 25 25 150 35 32 SVJB& 2020K-16N N N 20 20 125 30 25 0.8 SB-40125TRN FT-15 SVN-32N SS-4N LW-4 2525M-16N N N 25 25 150 32 *(SVN-32S) · For insert with corner-R(rε) 0.2 or 0.4, shim of marked * is recommended (sold separately). l Applicable Inserts (AVJB-FF / SVJB-FF / SVJB) Applications Finishing Finishing Finishing-Medium Finishing Finishing / Precision Finishing-Medium Non-ferrous Metals Non-ferrous Metals Non-ferrous Metals Hard Materials Ref. to Page B82 B82 B82 B83 B82 B84 B85 B85 C28 C17 GP VF HQ &-F &-FSF &-Y AH &-A3 PCD CBN Insert Toolholder Description £ VJB&...-11FF/-11 VBMT1103.. VBMT1103.. VBMT1103.. VBGT1103.. VBET1103.. VBGT1103.. - - VBMT1103.. VBGW1103.. SVJB& ...-16N VBMT1604.. VBMT1604.. VBMT1604.. - - VBGT1604.. VCGT1604.. VCGT1604.. VBMT1604.. VBGW1604.. Recommended Cutting Conditions E44 N : Std. Item E30
