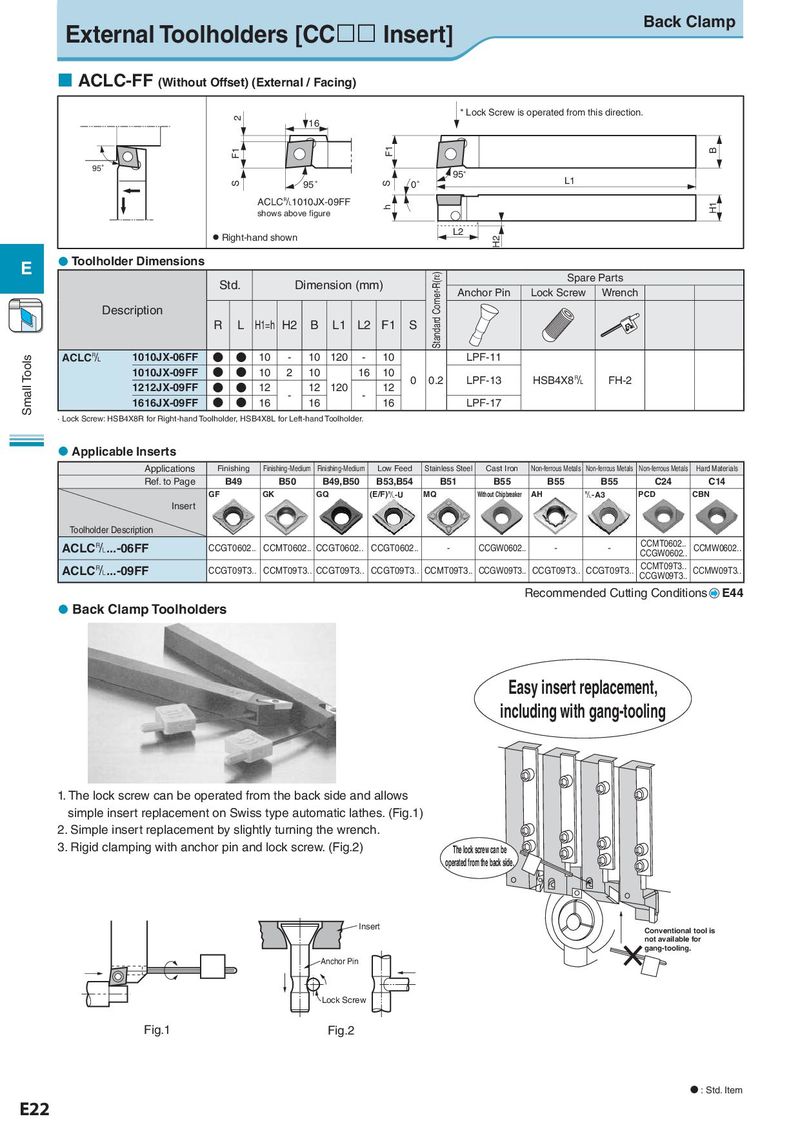

Основной каталог Kyocera 2016-2017 - страница 236

External Toolholders [CC££ Insert] Back Clamp ¢ ACLC-FF (Without Offset) (External / Facing) 2 * Lock Screw is operated from this direction. 16 F1 F1 B 95゜ 95˚ S 95 ˚ S 0˚ L1 ACLC&1010JX-09FF h H1 shows above figure l Right-hand shown L2 H2 E l Toolholder Dimensions Std. Dimension (mm) Standard Corner-R(rε) Spare Parts Anchor Pin Lock Screw Wrench Description R L H1=h H2 B L1 L2 F1 S Small Tools ACLC& 1010JX-06FF N N 10 - 10 120 - 10 LPF-11 1010JX-09FF N N 10 2 10 16 10 0 0.2 LPF-13 HSB4X8& FH-2 1212JX-09FF N N 12 - 12 120 - 12 1616JX-09FF N N 16 16 16 LPF-17 · Lock Screw: HSB4X8R for Right-hand Toolholder, HSB4X8L for Left-hand Toolholder. l Applicable Inserts Applications Finishing Finishing-Medium Finishing-Medium Low Feed Stainless Steel Cast Iron Non-ferrous Metals Non-ferrous Metals Non-ferrous Metals Hard Materials Ref. to Page B49 B50 B49,B50 B53,B54 B51 B55 B55 B55 C24 C14 GF GK GQ (E/F)&-U MQ Without Chipbreaker AH &-A3 PCD CBN Insert Toolholder Description ACLC&...-06FF CCGT0602.. CCMT0602.. CCGT0602.. CCGT0602.. - CCGW0602.. - - CCMT0602.. CCMW0602.. CCGW0602.. ACLC&...-09FF CCGT09T3.. CCMT09T3.. CCGT09T3.. CCGT09T3.. CCMT09T3.. CCGW09T3.. CCGT09T3.. CCGT09T3.. CCMT09T3.. CCMW09T3.. CCGW09T3.. Recommended Cutting Conditions E44 l Back Clamp Toolholders Easy insert replacement, including with gang-tooling 1. The lock screw can be operated from the back side and allows simple insert replacement on Swiss type automatic lathes. (Fig.1) 2. Simple insert replacement by slightly turning the wrench. 3. Rigid clamping with anchor pin and lock screw. (Fig.2) The lock screw can be operated from the back side. Insert Conventional tool is not available for gang-tooling. Anchor Pin Lock Screw Fig.1 Fig.2 N : Std. Item E22
