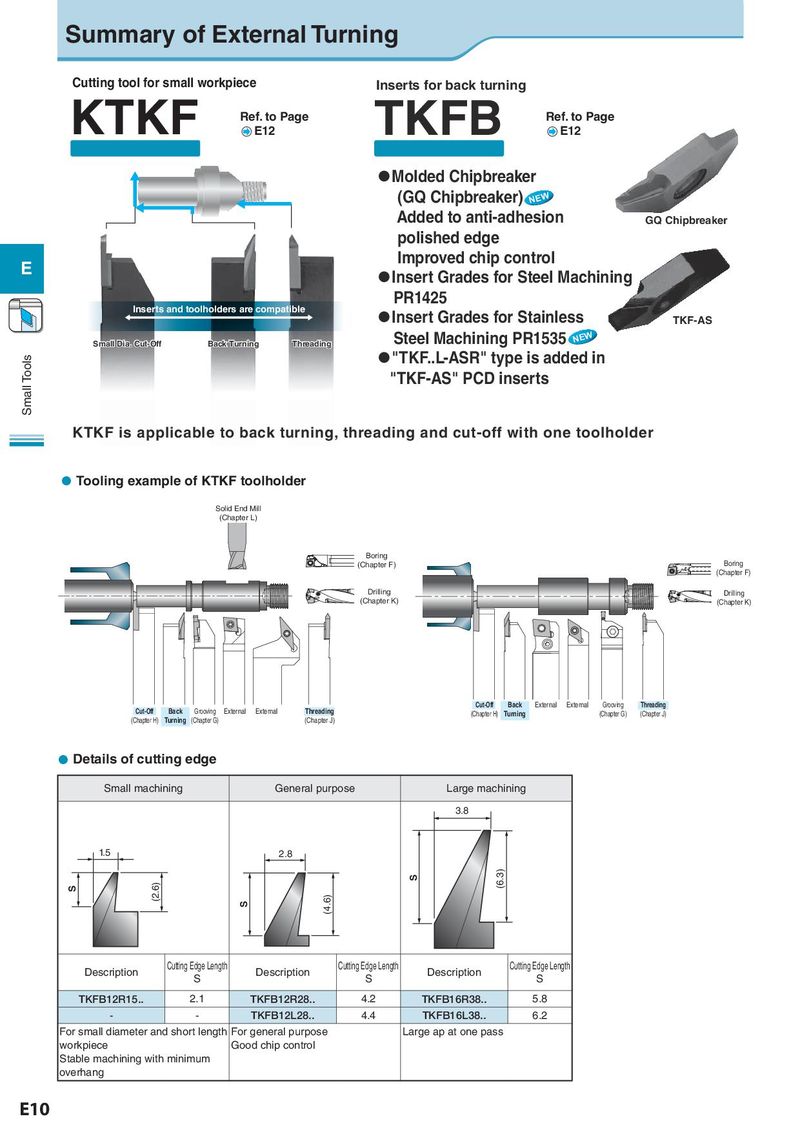

Summary of External Turning Cutting tool for small workpiece Inserts for back turning KTKF Ref. to Page TKFB Ref. to Page E12 E12 ●Molded Chipbreaker 　 (GQ Chipbreaker) NEW 　 Added to anti-adhesion GQ Chipbreaker 　 polished edge E 　 Improved chip control ●Insert Grades for Steel Machining Inserts and toolholders are compatible 　PR1425 ●Insert Grades for Stainless TKF-AS Small Dia. Cut-Off Back Turning Threading 　Steel Machining PR1535 NEW Small Tools ●"TKF..L-ASR" type is added in "TKF-AS" PCD inserts KTKF is applicable to back turning, threading and cut-off with one toolholder l Tooling example of KTKF toolholder Solid End Mill (Chapter L) Boring (Chapter F) Boring (Chapter F) Drilling Drilling (Chapter K) (Chapter K) Cut-Off Back Grooving External External Threading Cut-Off Back External External Grooving Threading (Chapter H) Turning (Chapter G) (Chapter J) (Chapter H) Turning (Chapter G) (Chapter J) l Details of cutting edge Small machining General purpose Large machining 3.8 1.5 2.8 S (6.3) S (2.6) S (4.6) Description Cutting Edge Length Description Cutting Edge Length Description Cutting Edge Length S S S TKFB12R15.. 2.1 TKFB12R28.. 4.2 TKFB16R38.. 5.8 - - TKFB12L28.. 4.4 TKFB16L38.. 6.2 For small diameter and short length For general purpose Large ap at one pass workpiece Good chip control Stable machining with minimum overhang E10
