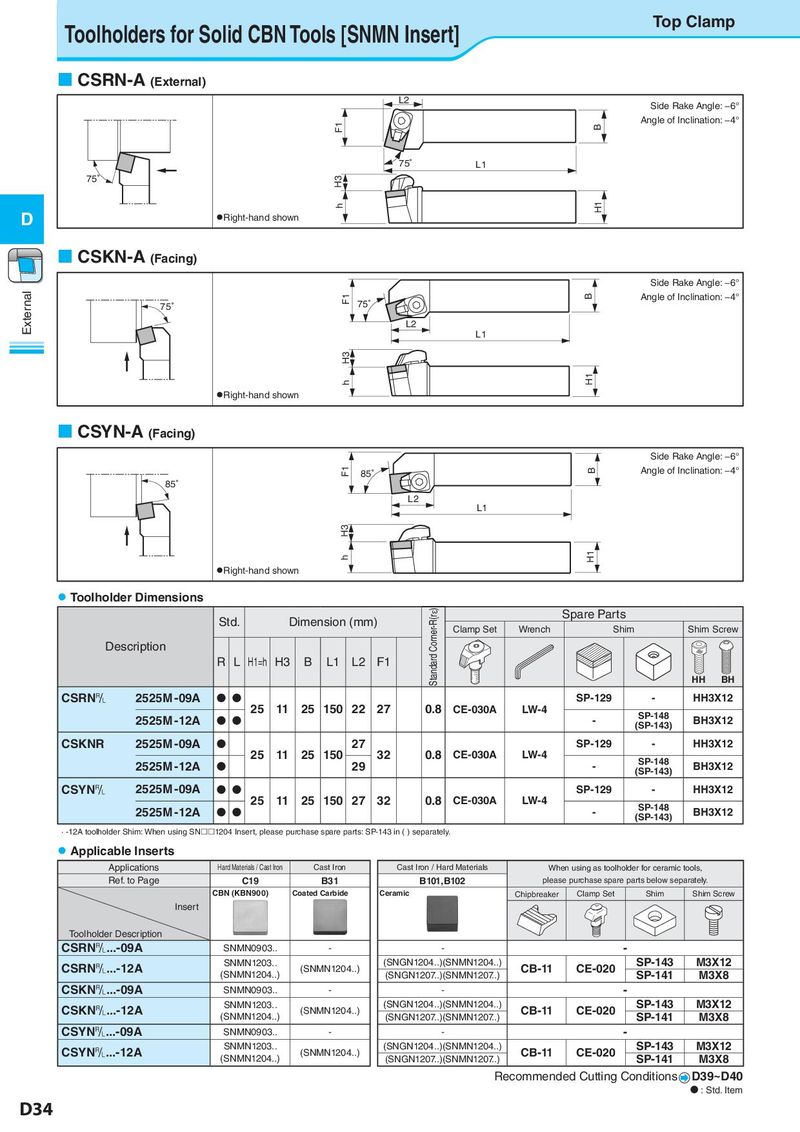

Toolholders for Solid CBN Tools [SNMN Insert] Top Clamp ¢ CSRN-A (External) L2 Side Rake Angle: −6° F1 B Angle of Inclination: −4° 75゜ L1 75゜ H3 h H1 D lRight-hand shown ¢ CSKN-A (Facing) Side Rake Angle: −6° External F1 B Angle of Inclination: −4° 75゜ 75゜ L2 L1 H3 h H1 lRight-hand shown ¢ CSYN-A (Facing) Side Rake Angle: −6° F1 85゜ B Angle of Inclination: −4° 85゜ L2 L1 H3 h H1 lRight-hand shown l Toolholder Dimensions Std. Dimension (mm) Standard Corner-R(rε) Spare Parts Clamp Set Wrench Shim Shim Screw Description R L H1=h H3 B L1 L2 F1 HH BH CSRN& 2525M -09A N N SP-129 - HH3X12 25 11 25 150 22 27 0.8 CE-030A LW-4 SP-148 2525M -12A N N - (SP-143) BH3X12 CSKNR 2525M -09A N 27 SP-129 - HH3X12 25 11 25 150 32 0.8 CE-030A LW-4 SP-148 2525M -12A N 29 - (SP-143) BH3X12 CSYN& 2525M -09A N N SP-129 - HH3X12 25 11 25 150 27 32 0.8 CE-030A LW-4 SP-148 2525M -12A N N - (SP-143) BH3X12 · -12A toolholder Shim: When using SN££1204 Insert, please purchase spare parts: SP-143 in ( ) separately. l Applicable Inserts Applications Hard Materials / Cast Iron Cast Iron Cast Iron / Hard Materials When using as toolholder for ceramic tools, Ref. to Page C19 B31 B101,B102 please purchase spare parts below separately. CBN (KBN900) Coated Carbide Ceramic Chipbreaker Clamp Set Shim Shim Screw Insert Toolholder Description CSRN&...-09A SNMN0903.. - - - CSRN&...-12A SNMN1203.. (SNMN1204..) (SNGN1204..)(SNMN1204..) CB-11 CE-020 SP-143 M3X12 (SNMN1204..) (SNGN1207..)(SNMN1207..) SP-141 M3X8 CSKN&...-09A SNMN0903.. - - - CSKN&...-12A SNMN1203.. (SNMN1204..) (SNGN1204..)(SNMN1204..) CB-11 CE-020 SP-143 M3X12 (SNMN1204..) (SNGN1207..)(SNMN1207..) SP-141 M3X8 CSYN&...-09A SNMN0903.. - - - CSYN&...-12A SNMN1203.. (SNMN1204..) (SNGN1204..)(SNMN1204..) CB-11 CE-020 SP-143 M3X12 (SNMN1204..) (SNGN1207..)(SNMN1207..) SP-141 M3X8 Recommended Cutting Conditions D39~D40 N : Std. Item D34
