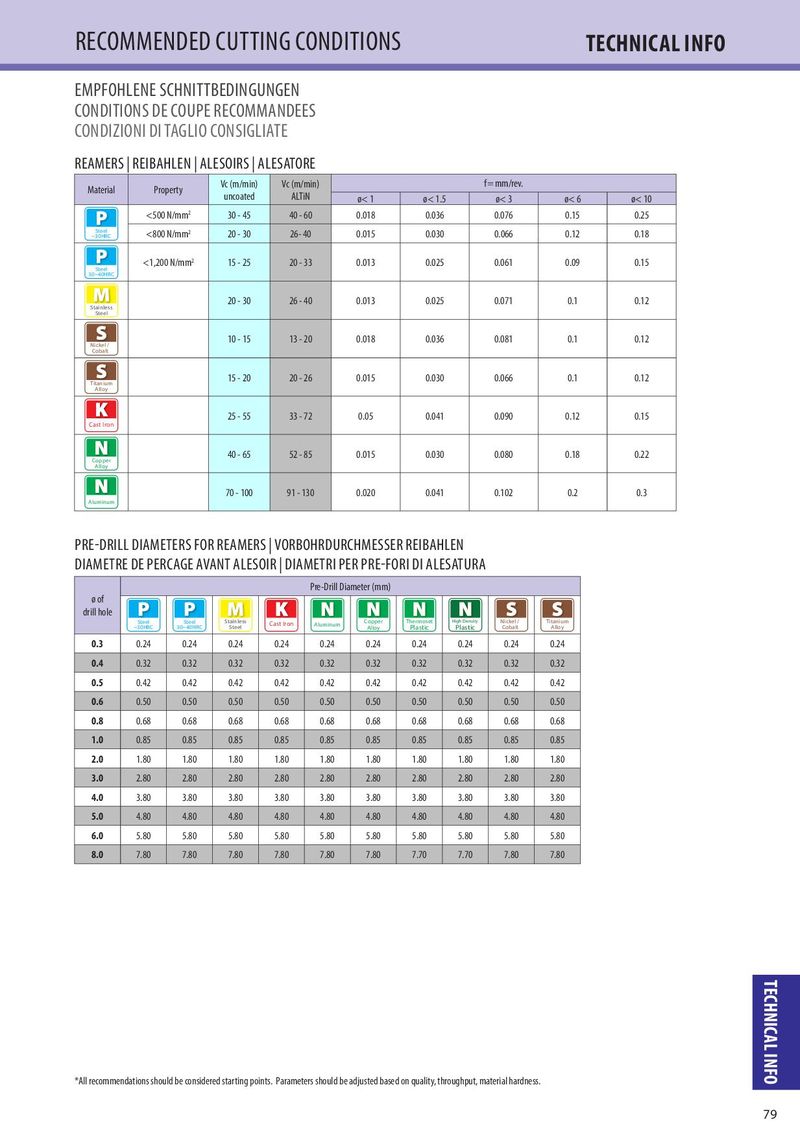

RECOMMENDED CUTTING CONDITIONS TECHNICAL INFO EMPFOHLENE SCHNITTBEDINGUNGEN CONDITIONS DE COUPE RECOMMANDEES CONDIZIONI DI TAGLIO CONSIGLIATE REAMERS | REIBAHLEN | ALESOIRS | ALESATORE Vc (m/min) Vc (m/min) f Material Property = mm/rev. uncoated ALTiN ø< 1 ø< 1.5 ø< 3 ø< 6 ø< 10 <500 N/mm 2 30 - 45 40 - 60 0.018 0.036 0.076 0.15 0.25 Steel ~30HRC <800 N/mm 2 20 - 30 26- 40 0.015 0.030 0.066 0.12 0.18 <1,200 N/mm 2 15 - 25 20 - 33 0.013 0.025 0.061 0.09 0.15 Steel 30~40HRC 20 - 30 26 - 40 0.013 0.025 0.071 0.1 0.12 Stainless Steel 10 - 15 13 - 20 0.018 0.036 0.081 0.1 0.12 Nickel / Cobalt 15 - 20 20 - 26 0.015 0.030 0.066 0.1 0.12 Titanium Alloy 25 - 55 33 - 72 0.05 0.041 0.090 0.12 0.15 Cast Iron 40 - 65 52 - 85 0.015 0.030 0.080 0.18 0.22 Copper Alloy 70 - 100 91 - 130 0.020 0.041 0.102 0.2 0.3 Aluminum PRE-DRILL DIAMETERS FOR REAMERS | VORBOHRDURCHMESSER REIBAHLEN DIAMETRE DE PERCAGE AVANT ALESOIR | DIAMETRI PER PRE-FORI DI ALESATURA Pre-Drill Diameter (mm) ø of drill hole Steel Steel Stainless Thermoset High Density Nickel / Titanium ~30HRC 30~40HRC Steel Cast Iron Aluminum Copper Alloy Plastic Plastic Cobalt Alloy 0.3 0.24 0.24 0.24 0.24 0.24 0.24 0.24 0.24 0.24 0.24 0.4 0.32 0.32 0.32 0.32 0.32 0.32 0.32 0.32 0.32 0.32 0.5 0.42 0.42 0.42 0.42 0.42 0.42 0.42 0.42 0.42 0.42 0.6 0.50 0.50 0.50 0.50 0.50 0.50 0.50 0.50 0.50 0.50 0.8 0.68 0.68 0.68 0.68 0.68 0.68 0.68 0.68 0.68 0.68 1.0 0.85 0.85 0.85 0.85 0.85 0.85 0.85 0.85 0.85 0.85 2.0 1.80 1.80 1.80 1.80 1.80 1.80 1.80 1.80 1.80 1.80 3.0 2.80 2.80 2.80 2.80 2.80 2.80 2.80 2.80 2.80 2.80 4.0 3.80 3.80 3.80 3.80 3.80 3.80 3.80 3.80 3.80 3.80 5.0 4.80 4.80 4.80 4.80 4.80 4.80 4.80 4.80 4.80 4.80 6.0 5.80 5.80 5.80 5.80 5.80 5.80 5.80 5.80 5.80 5.80 8.0 7.80 7.80 7.80 7.80 7.80 7.80 7.70 7.70 7.80 7.80 TECHNICAL INFO *All recommendations should be considered starting points. Parameters should be adjusted based on quality, throughput, material hardness. 79 2015_KUTDE_MIT_Catalog_TZZ00058.indd 79 04.03.2016 07:54:10
