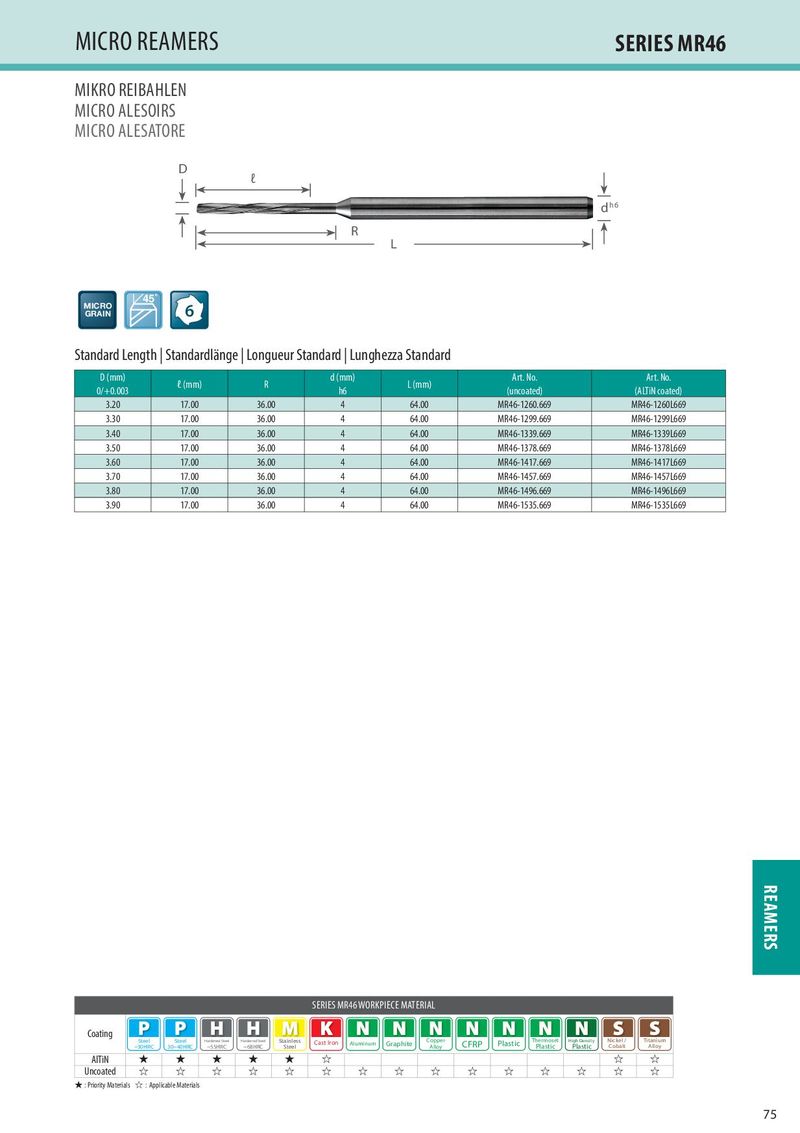

MICRO REAMERS SERIES MR46 MIKRO REIBAHLEN MICRO ALESOIRS MICRO ALESATORE D ℓ h6 d R L 45˚ MICRO GRAIN 6 Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard D (mm) d (mm) Art. No. Art. No. ℓ (mm) R L (mm) 0/+0.003 h6 (uncoated) (ALTiN coated) 3.20 17.00 36.00 4 64.00 MR46-1260.669 MR46-1260L669 3.30 17.00 36.00 4 64.00 MR46-1299.669 MR46-1299L669 3.40 17.00 36.00 4 64.00 MR46-1339.669 MR46-1339L669 3.50 17.00 36.00 4 64.00 MR46-1378.669 MR46-1378L669 3.60 17.00 36.00 4 64.00 MR46-1417.669 MR46-1417L669 3.70 17.00 36.00 4 64.00 MR46-1457.669 MR46-1457L669 3.80 17.00 36.00 4 64.00 MR46-1496.669 MR46-1496L669 3.90 17.00 36.00 4 64.00 MR46-1535.669 MR46-1535L669 REAMERS SERIES MR46 WORKPIECE MATERIAL Coating Steel Steel Hardened Steel Hardened Steel Stainless High Density ~30HRC 30~40HRC ~55HRC ~68HRC Steel Cast Iron Aluminum Graphite Copper Alloy CFRP Plastic Thermoset Nickel / Titanium Plastic Plastic Cobalt Alloy AlTiN ★ ★ ★ ★ ★ ☆ ☆ ☆ Uncoated ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ★ : Priority Materials ☆ : Applicable Materials 75 2015_KUTDE_MIT_Catalog_TZZ00058.indd 75 04.03.2016 07:53:59
