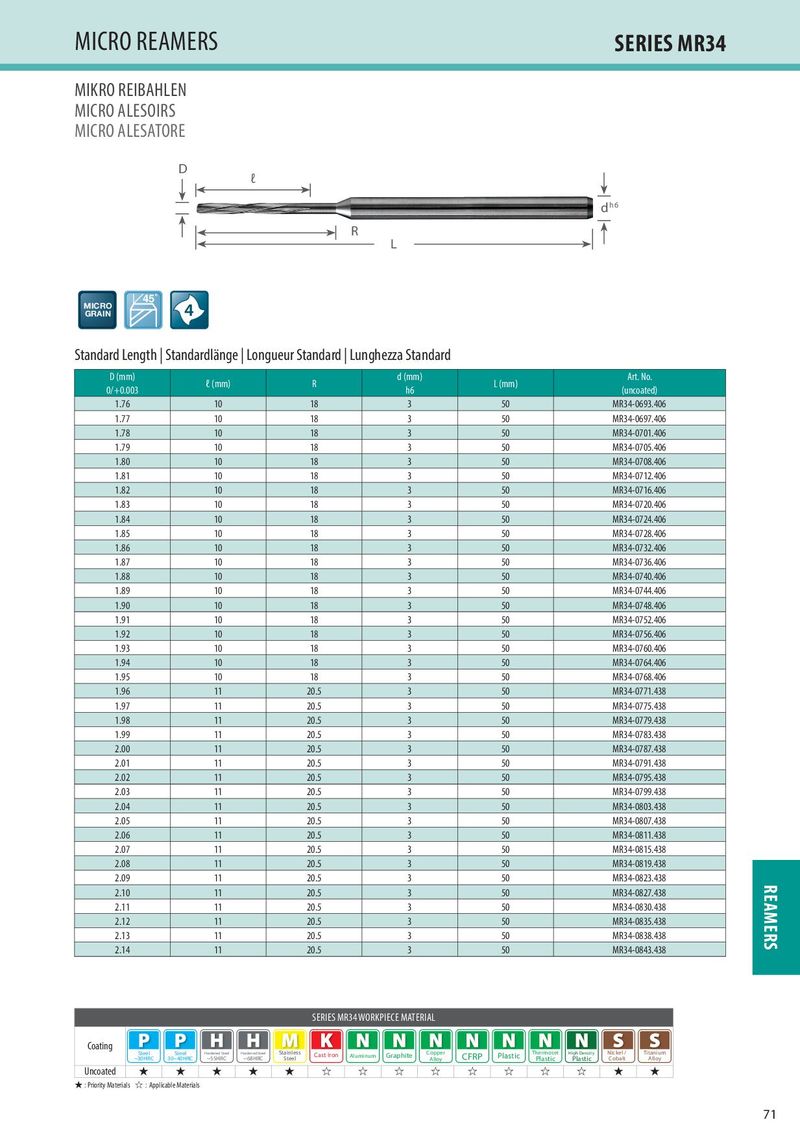

MICRO REAMERS SERIES MR34 MIKRO REIBAHLEN MICRO ALESOIRS MICRO ALESATORE D ℓ h6 d R L 45˚ MICRO GRAIN 4 Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard D (mm) d (mm) Art. No. ℓ (mm) R L (mm) 0/+0.003 h6 (uncoated) 1.76 10 18 3 50 MR34-0693.406 1.77 10 18 3 50 MR34-0697.406 1.78 10 18 3 50 MR34-0701.406 1.79 10 18 3 50 MR34-0705.406 1.80 10 18 3 50 MR34-0708.406 1.81 10 18 3 50 MR34-0712.406 1.82 10 18 3 50 MR34-0716.406 1.83 10 18 3 50 MR34-0720.406 1.84 10 18 3 50 MR34-0724.406 1.85 10 18 3 50 MR34-0728.406 1.86 10 18 3 50 MR34-0732.406 1.87 10 18 3 50 MR34-0736.406 1.88 10 18 3 50 MR34-0740.406 1.89 10 18 3 50 MR34-0744.406 1.90 10 18 3 50 MR34-0748.406 1.91 10 18 3 50 MR34-0752.406 1.92 10 18 3 50 MR34-0756.406 1.93 10 18 3 50 MR34-0760.406 1.94 10 18 3 50 MR34-0764.406 1.95 10 18 3 50 MR34-0768.406 1.96 11 20.5 3 50 MR34-0771.438 1.97 11 20.5 3 50 MR34-0775.438 1.98 11 20.5 3 50 MR34-0779.438 1.99 11 20.5 3 50 MR34-0783.438 2.00 11 20.5 3 50 MR34-0787.438 2.01 11 20.5 3 50 MR34-0791.438 2.02 11 20.5 3 50 MR34-0795.438 2.03 11 20.5 3 50 MR34-0799.438 2.04 11 20.5 3 50 MR34-0803.438 2.05 11 20.5 3 50 MR34-0807.438 2.06 11 20.5 3 50 MR34-0811.438 2.07 11 20.5 3 50 MR34-0815.438 2.08 11 20.5 3 50 MR34-0819.438 2.09 11 20.5 3 50 MR34-0823.438 REAMERS 2.10 11 20.5 3 50 MR34-0827.438 2.11 11 20.5 3 50 MR34-0830.438 2.12 11 20.5 3 50 MR34-0835.438 2.13 11 20.5 3 50 MR34-0838.438 2.14 11 20.5 3 50 MR34-0843.438 SERIES MR34 WORKPIECE MATERIAL Coating Steel Steel Hardened Steel Hardened Steel Stainless Copper High Density Nickel / Titanium ~30HRC 30~40HRC ~55HRC ~68HRC Steel Cast Iron Aluminum Graphite Alloy CFRP Plastic Thermoset Plastic Plastic Cobalt Alloy Uncoated ★ ★ ★ ★ ★ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ☆ ★ ★ ★ : Priority Materials ☆ : Applicable Materials 71 2015_KUTDE_MIT_Catalog_TZZ00058.indd 71 04.03.2016 07:53:51
