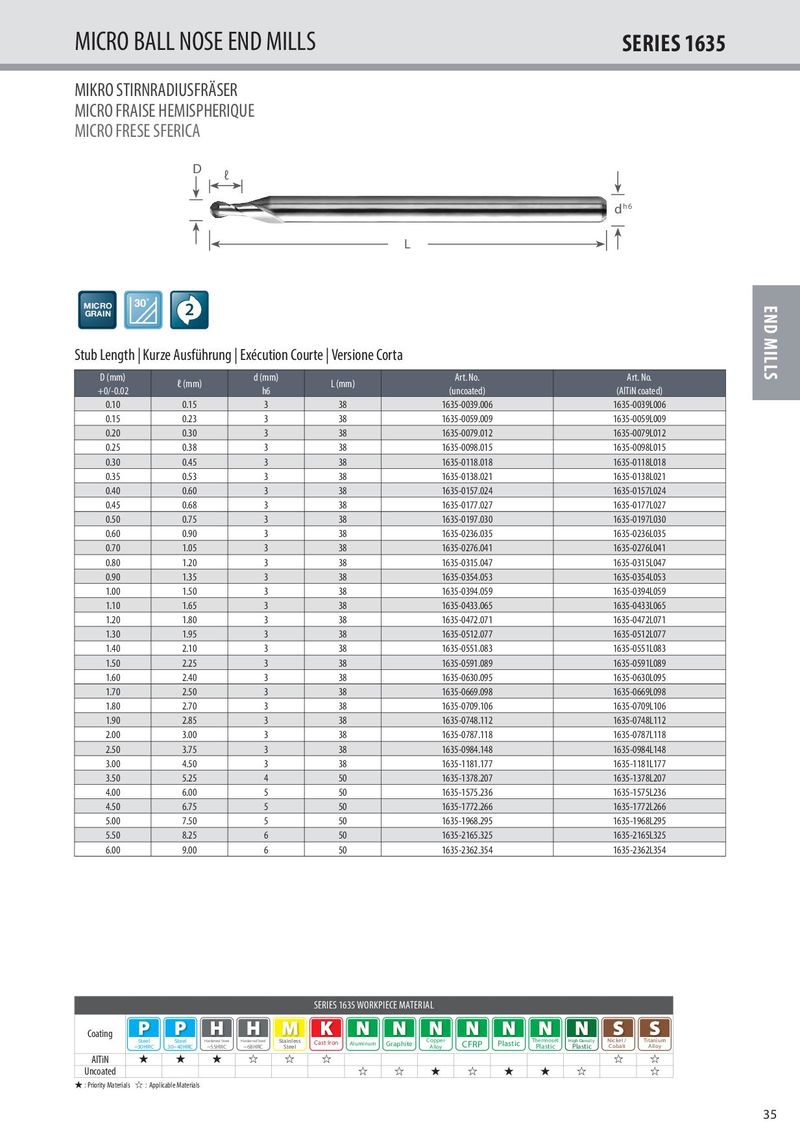

Каталог микроинструмента Kyocera 2015-2016 - страница 37

MICRO BALL NOSE END MILLS SERIES 1635 MIKRO STIRNRADIUSFRÄSER MICRO FRAISE HEMISPHERIQUE MICRO FRESE SFERICA D ℓ h6 d L MICRO 30˚ END MILLS GRAIN 2 Stub Length | Kurze Ausführung | Exécution Courte | Versione Corta D (mm) d (mm) Art. No. Art. No. ℓ (mm) L (mm) +0/-0.02 h6 (uncoated) (AlTiN coated) 0.10 0.15 3 38 1635-0039.006 1635-0039L006 0.15 0.23 3 38 1635-0059.009 1635-0059L009 0.20 0.30 3 38 1635-0079.012 1635-0079L012 0.25 0.38 3 38 1635-0098.015 1635-0098L015 0.30 0.45 3 38 1635-0118.018 1635-0118L018 0.35 0.53 3 38 1635-0138.021 1635-0138L021 0.40 0.60 3 38 1635-0157.024 1635-0157L024 0.45 0.68 3 38 1635-0177.027 1635-0177L027 0.50 0.75 3 38 1635-0197.030 1635-0197L030 0.60 0.90 3 38 1635-0236.035 1635-0236L035 0.70 1.05 3 38 1635-0276.041 1635-0276L041 0.80 1.20 3 38 1635-0315.047 1635-0315L047 0.90 1.35 3 38 1635-0354.053 1635-0354L053 1.00 1.50 3 38 1635-0394.059 1635-0394L059 1.10 1.65 3 38 1635-0433.065 1635-0433L065 1.20 1.80 3 38 1635-0472.071 1635-0472L071 1.30 1.95 3 38 1635-0512.077 1635-0512L077 1.40 2.10 3 38 1635-0551.083 1635-0551L083 1.50 2.25 3 38 1635-0591.089 1635-0591L089 1.60 2.40 3 38 1635-0630.095 1635-0630L095 1.70 2.50 3 38 1635-0669.098 1635-0669L098 1.80 2.70 3 38 1635-0709.106 1635-0709L106 1.90 2.85 3 38 1635-0748.112 1635-0748L112 2.00 3.00 3 38 1635-0787.118 1635-0787L118 2.50 3.75 3 38 1635-0984.148 1635-0984L148 3.00 4.50 3 38 1635-1181.177 1635-1181L177 3.50 5.25 4 50 1635-1378.207 1635-1378L207 4.00 6.00 5 50 1635-1575.236 1635-1575L236 4.50 6.75 5 50 1635-1772.266 1635-1772L266 5.00 7.50 5 50 1635-1968.295 1635-1968L295 5.50 8.25 6 50 1635-2165.325 1635-2165L325 6.00 9.00 6 50 1635-2362.354 1635-2362L354 SERIES 1635 WORKPIECE MATERIAL Coating Steel Steel Hardened Steel Hardened Steel Stainless ~30HRC 30~40HRC ~55HRC ~68HRC Steel Cast Iron Aluminum Graphite Copper Thermoset High Density Nickel / Titanium Alloy CFRP Plastic Plastic Plastic Cobalt Alloy AlTiN ★ ★ ★ ☆ ☆ ☆ ☆ ☆ Uncoated ☆ ☆ ★ ☆ ★ ★ ☆ ☆ ★ : Priority Materials ☆ : Applicable Materials 35 2015_KUTDE_MIT_Catalog_TZZ00058.indd 35 04.03.2016 07:52:32
