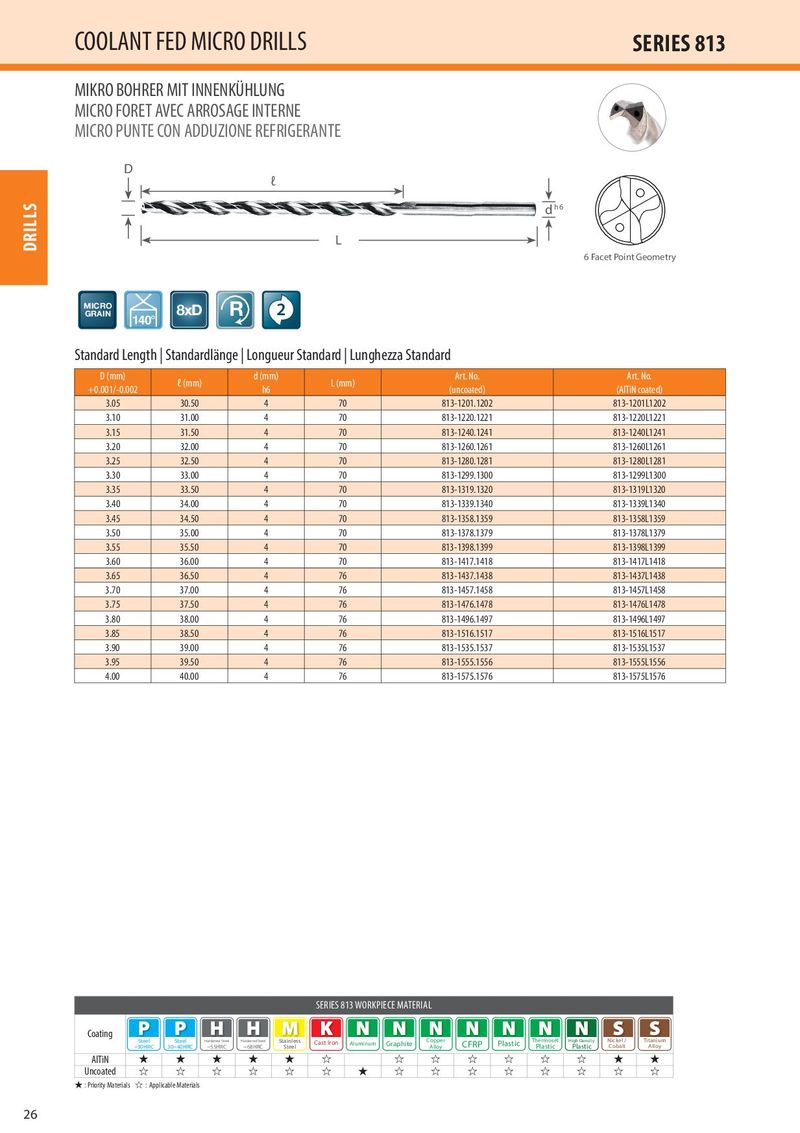

MIKRO BOHRER MIT INNENKÜHLUNG

MICRO FORET AVEC ARROSAGE INTERNE

MICRO PUNTE CON ADDUZIONE REFRIGERANTE

D

ℓ

L

MICRO 8xD R 2

GRAIN 140° Standard Length | Standardlänge | Longueur Standard | Lunghezza Standard

d h6

6 Facet Point Geometry

D (mm) +0.001/-0.002ℓ (mm)d (mm) h6L (mm)Art. No. (uncoated)Art. No. (AlTiN coated)
3.0530.50470813-1201.1202813-1201L1202
3.1031.00470813-1220.1221813-1220L1221
3.1531.50470813-1240.1241813-1240L1241
3.2032.00470813-1260.1261813-1260L1261
3.2532.50470813-1280.1281813-1280L1281
3.3033.00470813-1299.1300813-1299L1300
3.3533.50470813-1319.1320813-1319L1320
3.4034.00470813-1339.1340813-1339L1340
3.4534.50470813-1358.1359813-1358L1359
3.5035.00470813-1378.1379813-1378L1379
3.5535.50470813-1398.1399813-1398L1399
3.6036.00470813-1417.1418813-1417L1418
3.6536.50476813-1437.1438813-1437L1438
3.7037.00476813-1457.1458813-1457L1458
3.7537.50476813-1476.1478813-1476L1478
3.8038.00476813-1496.1497813-1496L1497
3.8538.50476813-1516.1517813-1516L1517
3.9039.00476813-1535.1537813-1535L1537
3.9539.50476813-1555.1556813-1555L1556
4.0040.00476813-1575.1576813-1575L1576

SERIES 813 WORKPIECE MATERIAL Coating

SteelSteelHardened SteelHardened SteelStainlessCast IronGraphiteCopperCFRPPlasticThermosetHigh DensityNickel /Titanium
~30HRC30~40HRC~55HRC~68HRCSteelAluminumAlloyPlasticPlasticCobaltAlloy
AlTiN★★★★★☆☆☆☆☆☆☆★★
CoatingSERIES 813 WORKPIECE MATERIAL
~30HRC Steel30~40HRC Steel~55HRC Hardened Steel~68HRC Hardened SteelStainless SteelCast IronAluminumGraphiteCopper AlloyCFRPPlasticThermoset PlasticPlastic High DensityNickel / CobaltTitanium Alloy
AlTiN★★★★★☆☆☆☆☆☆☆★★
Uncoated☆☆☆☆☆☆★☆☆☆☆☆☆☆☆
