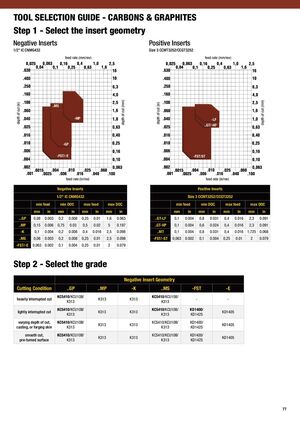

TOOL SELECTION GUIDE - CARBONS & GRAPHITES Step 1 - Select the insert geometry Negative Inserts Positive Inserts 1/2” IC CNMG432 Size 3 CCMT3252/CCGT3252 feed rate (mm/rev) feed rate (mm/rev) depth of cut (mm) depth of cut (mm) depth of cut (in) depth of cut (in) ..MS -MP -LF ..GT/-HP -GP -FST/-E -FST/ST feed rate (in/rev) feed rate (in/rev) Negative Inserts Positive Inserts 1/2" IC CNMG432 Size 3 CCMT3252/CCGT3252 min feed min DOC max feed max DOC min feed min DOC max feed max DOC mm in mm in mm in mm in mm in mm in mm in mm in ...GP 0,08 0.003 0,2 0.008 0,25 0.01 1,6 0.063 ..GT-LF 0,1 0.004 0,8 0.031 0,4 0.016 2,3 0.091 ..MP 0,15 0.006 0,75 0.03 0,5 0.02 5 0.197 ..GT-HP 0,1 0.004 0,6 0.024 0,4 0.016 2,3 0.091 -K 0,1 0.004 0,2 0.008 0,4 0.016 2,5 0.098 ..MT 0,1 0.004 0,8 0.031 0,4 0.016 1,725 0.068 ..MS 0,08 0.003 0,2 0.008 0,25 0.01 2,5 0.098 -FST/-ST 0,063 0.002 0,1 0.004 0,25 0.01 2 0.079 -FST/-E 0,063 0.002 0,1 0.004 0,25 0.01 2 0.079 Step 2 - Select the grade Negative Insert Geometry Cutting Condition ..GP ..MP -K ..MS -FST -E KC5410/KCU10B/ KC5410/KCU10B/ heavily interrupted cut K313 K313 - - K313 K313 KC5410/KCU10B/ KC5410/KCU10B/ KD1400/ lightly interrupted cut K313 K313 KD1405 K313 K313 KD1425 varying depth of cut, KC5410/KCU10B/ KC5410/KCU10B/ KD1400/ K313 K313 KD1405 casting, or forging skin K313 K313 KD1425 smooth cut, KC5410/KCU10B/ KC5410/KCU10B/ KD1400/ K313 K313 KD1405 pre-turned surface K313 K313 KD1425 77
