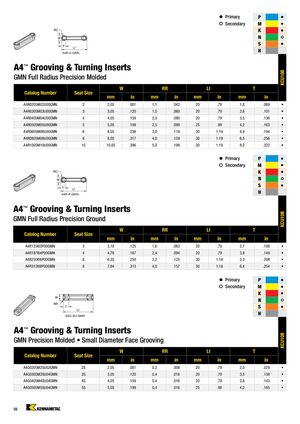

Токарные пластины серии KCU10B с технологией покрытия KENGold PVD Kennametal 2023 - страница 56

• Primary P • • Secondary M • K • N • S • A4R-U-GMN H A4™ Grooving & Turning Inserts KCU10B GMN Full Radius Precision Molded W RR LI T Catalog Number Seat Size mm in mm in mm in mm in A4R0205M02U00GMN 2 2,05 .081 1,1 .042 20 .79 1,8 .069 • A4R0305M03U00GMN 3 3,05 .120 1,5 .060 20 .79 2,6 .101 • A4R0405M04U00GMN 4 4,05 .159 2,0 .080 20 .79 3,5 .136 • A4R0505M05U00GMN 5 5,05 .199 2,5 .099 25 .99 4,2 .163 • A4R0605M06U00GMN 6 6,05 .238 3,0 .119 30 1.19 4,9 .194 • A4R0805M08U00GMN 8 8,05 .317 4,0 .159 30 1.19 6,5 .256 • A4R1005M10U00GMN 10 10,05 .396 5,0 .198 30 1.19 8,2 .322 • • Primary P • • Secondary M • K • N • S • A4R-P-GMN H A4™ Grooving & Turning Inserts KCU10B GMN Full Radius Precision Ground W RR LI T Catalog Number Seat Size mm in mm in mm in mm in A4R125I03P00GMN 3 3,18 .125 1,6 .063 20 .79 2,7 .108 • A4R187I04P00GMN 4 4,76 .187 2,4 .094 20 .79 3,8 .149 • A4R250I06P00GMN 6 6,35 .250 3,2 .125 30 1.18 5,3 .208 • A4R312I08P00GMN 8 7,94 .313 4,0 .157 30 1.18 6,4 .254 • • Primary P • • Secondary M • K • N • S • A4G-SU-GMN H A4™ Grooving & Turning Inserts KCU10B GMN Precision Molded • Small Diameter Face Grooving W RR LI T Catalog Number Seat Size mm in mm in mm in mm in A4G0205M2SU02GMN 2S 2,05 .081 0,2 .008 20 .79 2,0 .079 • A4G0305M3SU04GMN 3S 3,05 .120 0,4 .016 20 .79 3,5 .138 • A4G0405M4SU04GMN 4S 4,05 .159 0,4 .016 20 .79 3,6 .143 • A4G0505M5SU04GMN 5S 5,05 .199 0,4 .016 25 .98 4,2 .165 • 56
