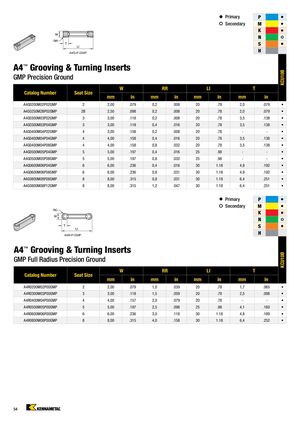

Токарные пластины серии KCU10B с технологией покрытия KENGold PVD Kennametal 2023 - страница 54

• Primary P • • Secondary M • K • N • S • A4G-P-GMP H A4™ Grooving & Turning Inserts KCU10B GMP Precision Ground W RR LI T Catalog Number Seat Size mm in mm in mm in mm in A4G0200M02P02GMP 2 2,00 .079 0,2 .008 20 .78 2,0 .079 • A4G0250M2BP02GMP 2B 2,50 .098 0,2 .008 20 .78 2,0 .079 • A4G0300M03P02GMP 3 3,00 .118 0,2 .008 20 .78 3,5 .138 • A4G0300M03P04GMP 3 3,00 .118 0,4 .016 20 .78 3,5 .138 • A4G0400M04P02GMP 4 3,00 .158 0,2 .008 20 .78 - - • A4G0400M04P04GMP 4 4,00 .158 0,4 .016 20 .78 3,5 .138 • A4G0400M04P08GMP 4 4,00 .158 0,8 .032 20 .78 3,5 .138 • A4G0500M05P04GMP 5 5,00 .197 0,4 .016 25 .98 - - • A4G0500M05P08GMP 5 5,00 .197 0,8 .032 25 .98 - - • A4G0600M06P04GMP 6 6,00 .236 0,4 .016 30 1.18 4,9 .192 • A4G0600M06P08GMP 6 6,00 .236 0,8 .031 30 1.18 4,9 .192 • A4G0800M08P08GMP 8 8,00 .315 0,8 .031 30 1.18 6,4 .251 • A4G0800M08P12GMP 8 8,00 .315 1,2 .047 30 1.18 6,4 .251 • • Primary P • • Secondary M • K • N • S • A4R-P-GMP H A4™ Grooving & Turning Inserts KCU10B GMP Full Radius Precision Ground W RR LI T Catalog Number Seat Size mm in mm in mm in mm in A4R0200M02P00GMP 2 2,00 .079 1,0 .039 20 .78 1,7 .065 • A4R0300M03P00GMP 3 3,00 .118 1,5 .059 20 .78 2,5 .098 • A4R0400M04P00GMP 4 4,00 .157 2,0 .079 20 .78 - - • A4R0500M05P00GMP 5 5,00 .197 2,5 .098 25 .98 4,1 .160 • A4R0600M06P00GMP 6 6,00 .236 3,0 .118 30 1.18 4,8 .189 • A4R0800M08P00GMP 8 8,00 .315 4,0 .158 30 1.18 6,4 .252 • 54
